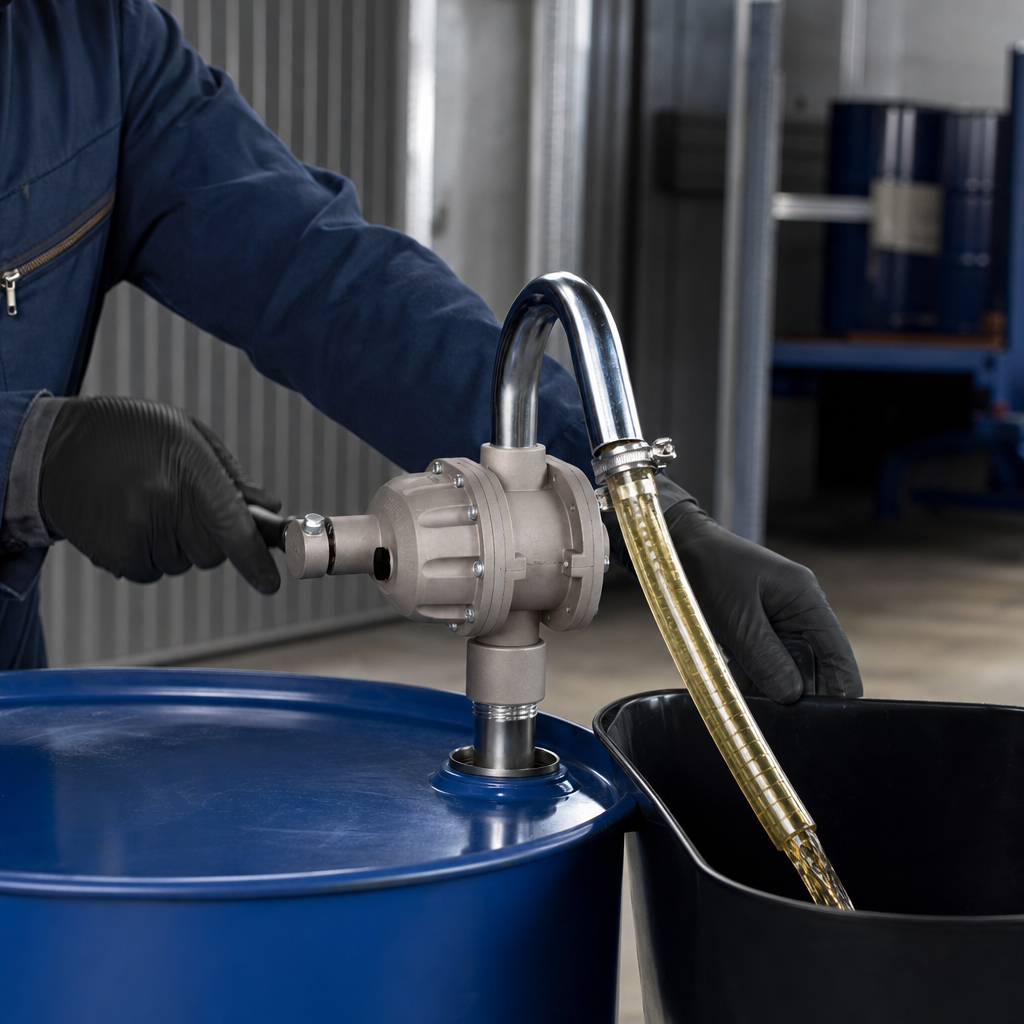

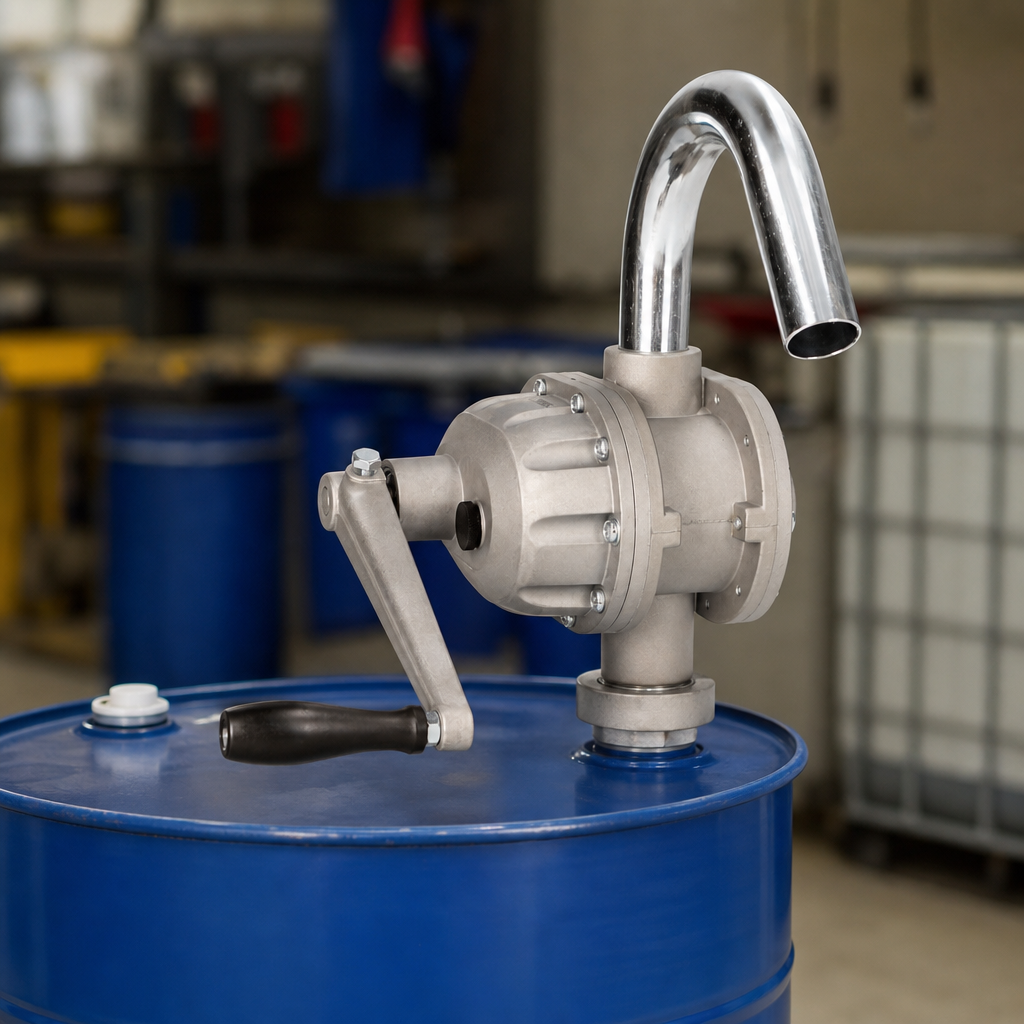

This Aluminium Hand Operated Drum Pump is designed for dispensing light mineral oils and heavier machinery oils. Ideal for high viscosity applications, it offers efficient pumping for various industrial uses.
Specifications
| Technical data | Details |
|---|---|
| Application | Mineral oils Machine oils |
| Immersion depth [mm] | 1000 |
| Diameter, immersion tube [mm] | 32 |
| Pump type | Drum pump |
| Height, external [mm] | 200 |
| Hose length [mm] | 1275 |
| Diameter, outlet external | 32 |
| Material | Aluminium |
| Max viscosity [mPas] | 900 |
| Delivery per stroke [l] | 1 |
| Suitable for | For light mineral oil products (lubricants) and for heavier machine and lubricating oils with high viscosity |
| Thread description | For steel drums |
| Drive | Manual |
| External thread | 2" |
| Weight [kg] | 6,4 |
Key Features
- For light mineral oil products and heavier machinery and lubricant oils
- Ideal for higher viscosities (max. 900 mPas at 20°C)
- With twin gears and galvanised immersion pipe
- Pumping capacity: approx. 1 ltr / rotation (about 5 L / min for heavy oils)
- Switching from pumping forwards to pumping backwards, which is always possible, allows for optimum dispensing
- Max. Temperature of the medium: 60°C
- Thread: 2''
Benefits
- Efficient dispensing of various oils
- Easy switching between pumping directions
- Robust construction for long-lasting use
- Lightweight design for easy handling
Use Cases
- Dispensing light and heavy mineral oils
- Lubricating machinery
- Industrial lubrication tasks
FAQ
Q: What types of oils can this pump handle?
A: It is suitable for light mineral oils and heavier machinery and lubricant oils.
Q: What is the maximum viscosity it can pump?
A: The pump can handle viscosities up to 900 mPas.
Q: Is the pump easy to operate?
A: Yes, it features manual operation with the ability to switch between forward and backward pumping.
This Aluminium Hand Operated Drum Pump is designed for dispensing light mineral oils and heavier machinery oils. Ideal for high viscosity applications, it offers efficient pumping for various industrial uses.
Specifications
| Technical data | Details |
|---|---|
| Application | Mineral oils Machine oils |
| Immersion depth [mm] | 1000 |
| Diameter, immersion tube [mm] | 32 |
| Pump type | Drum pump |
| Height, external [mm] | 200 |
| Hose length [mm] | 1275 |
| Diameter, outlet external | 32 |
| Material | Aluminium |
| Max viscosity [mPas] | 900 |
| Delivery per stroke [l] | 1 |
| Suitable for | For light mineral oil products (lubricants) and for heavier machine and lubricating oils with high viscosity |
| Thread description | For steel drums |
| Drive | Manual |
| External thread | 2" |
| Weight [kg] | 6,4 |
Key Features
- For light mineral oil products and heavier machinery and lubricant oils
- Ideal for higher viscosities (max. 900 mPas at 20°C)
- With twin gears and galvanised immersion pipe
- Pumping capacity: approx. 1 ltr / rotation (about 5 L / min for heavy oils)
- Switching from pumping forwards to pumping backwards, which is always possible, allows for optimum dispensing
- Max. Temperature of the medium: 60°C
- Thread: 2''
Benefits
- Efficient dispensing of various oils
- Easy switching between pumping directions
- Robust construction for long-lasting use
- Lightweight design for easy handling
Use Cases
- Dispensing light and heavy mineral oils
- Lubricating machinery
- Industrial lubrication tasks
FAQ
Q: What types of oils can this pump handle?
A: It is suitable for light mineral oils and heavier machinery and lubricant oils.
Q: What is the maximum viscosity it can pump?
A: The pump can handle viscosities up to 900 mPas.
Q: Is the pump easy to operate?
A: Yes, it features manual operation with the ability to switch between forward and backward pumping.
