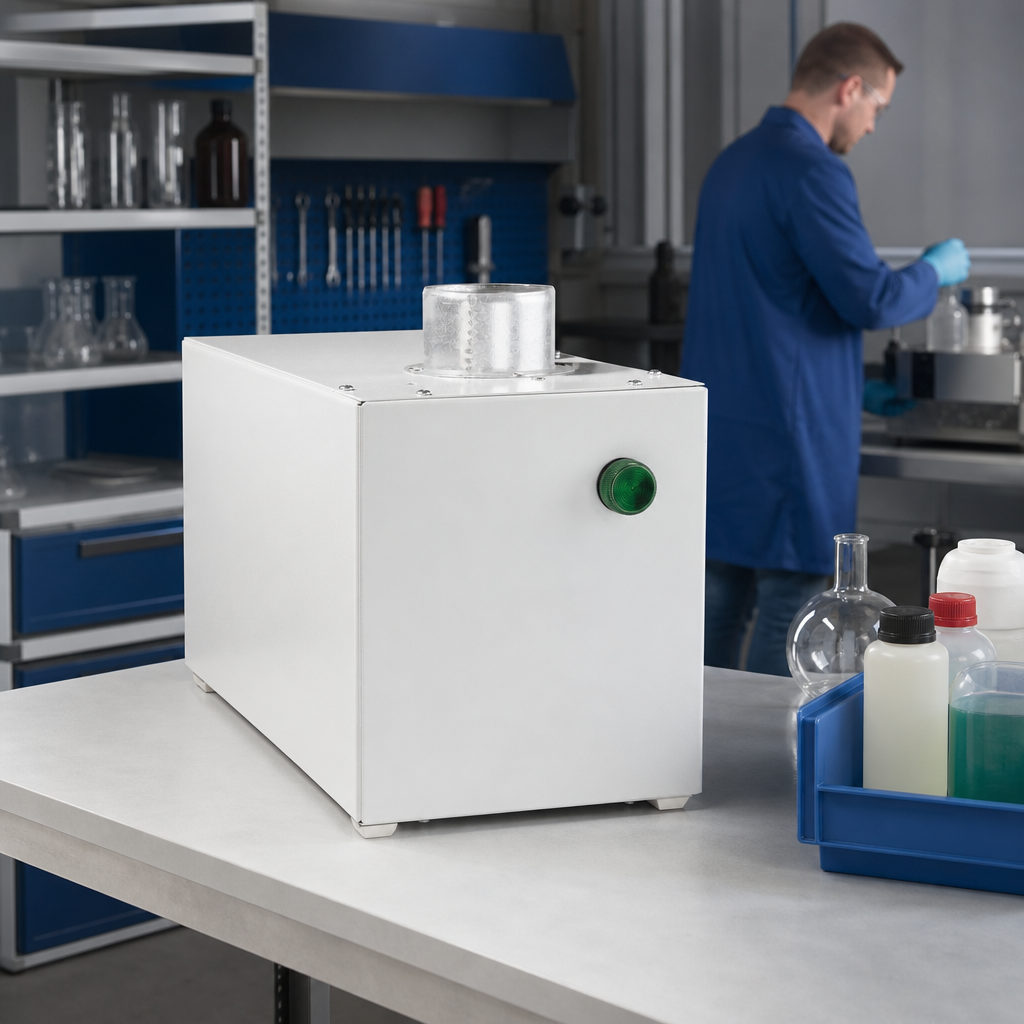

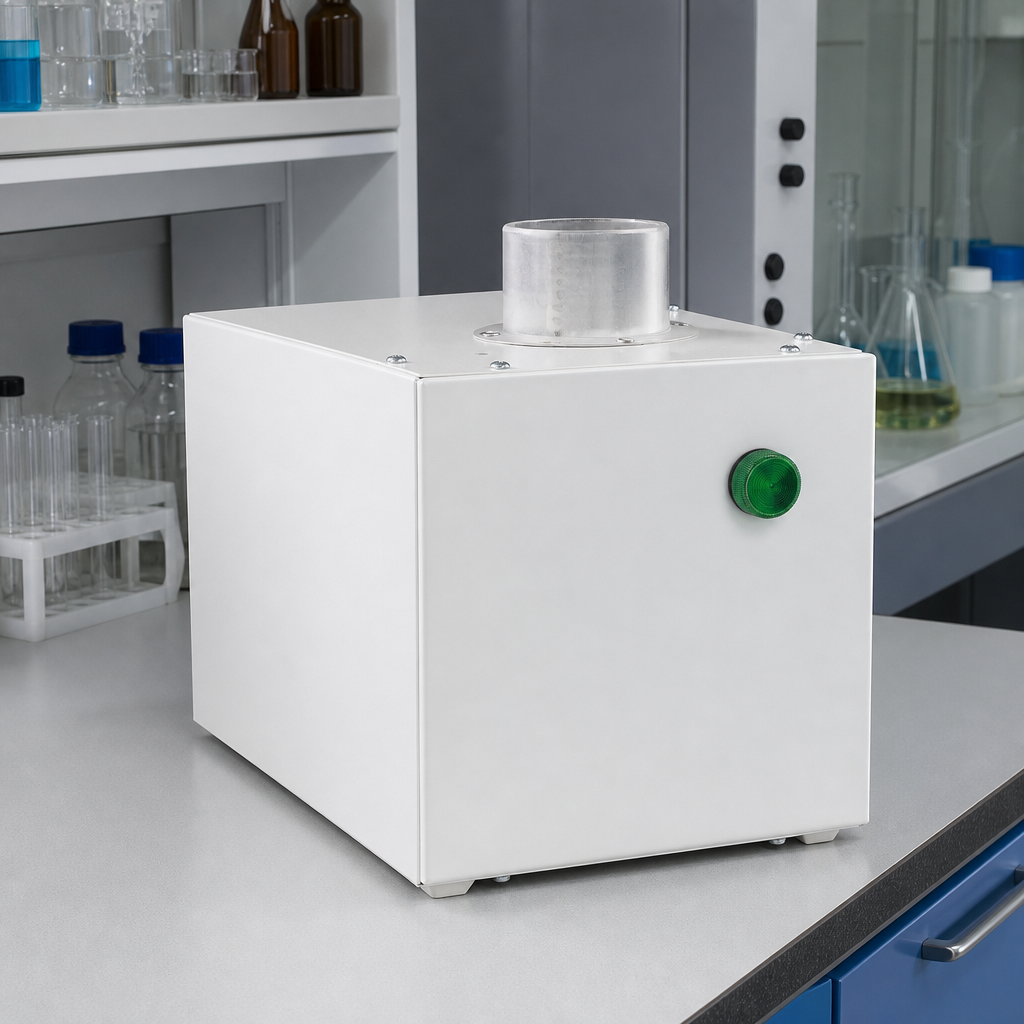

The AO 12 ventilation attachment is designed for cabinet installation, providing efficient air circulation. Ideal for environments requiring ATEX compliance.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 45 |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | As cabinet attachment |
| Frequency [Hz] | 50 |
| Weight [kg] | 10,1 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- As cabinet attachment
- EU directive
Benefits
- Ensures safe air management in cabinets
- Easy installation with plug-and-play design
- Quiet operation with low noise level
- Reliable performance in hazardous environments
Use Cases
- Laboratories
- Chemical storage
- Industrial cabinets
- Workshops
FAQ
Q: What is the power output of the AO 12?
A: The AO 12 has a power output of 35 W.
Q: Is the AO 12 compliant with safety standards?
A: Yes, it is ATEX-compliant for safe use in explosive atmospheres.
Q: What are the dimensions of the AO 12?
A: The external dimensions are 200 x 400 x 200 mm.
The AO 12 ventilation attachment is designed for cabinet installation, providing efficient air circulation. Ideal for environments requiring ATEX compliance.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 45 |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | As cabinet attachment |
| Frequency [Hz] | 50 |
| Weight [kg] | 10,1 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- As cabinet attachment
- EU directive
Benefits
- Ensures safe air management in cabinets
- Easy installation with plug-and-play design
- Quiet operation with low noise level
- Reliable performance in hazardous environments
Use Cases
- Laboratories
- Chemical storage
- Industrial cabinets
- Workshops
FAQ
Q: What is the power output of the AO 12?
A: The AO 12 has a power output of 35 W.
Q: Is the AO 12 compliant with safety standards?
A: Yes, it is ATEX-compliant for safe use in explosive atmospheres.
Q: What are the dimensions of the AO 12?
A: The external dimensions are 200 x 400 x 200 mm.
