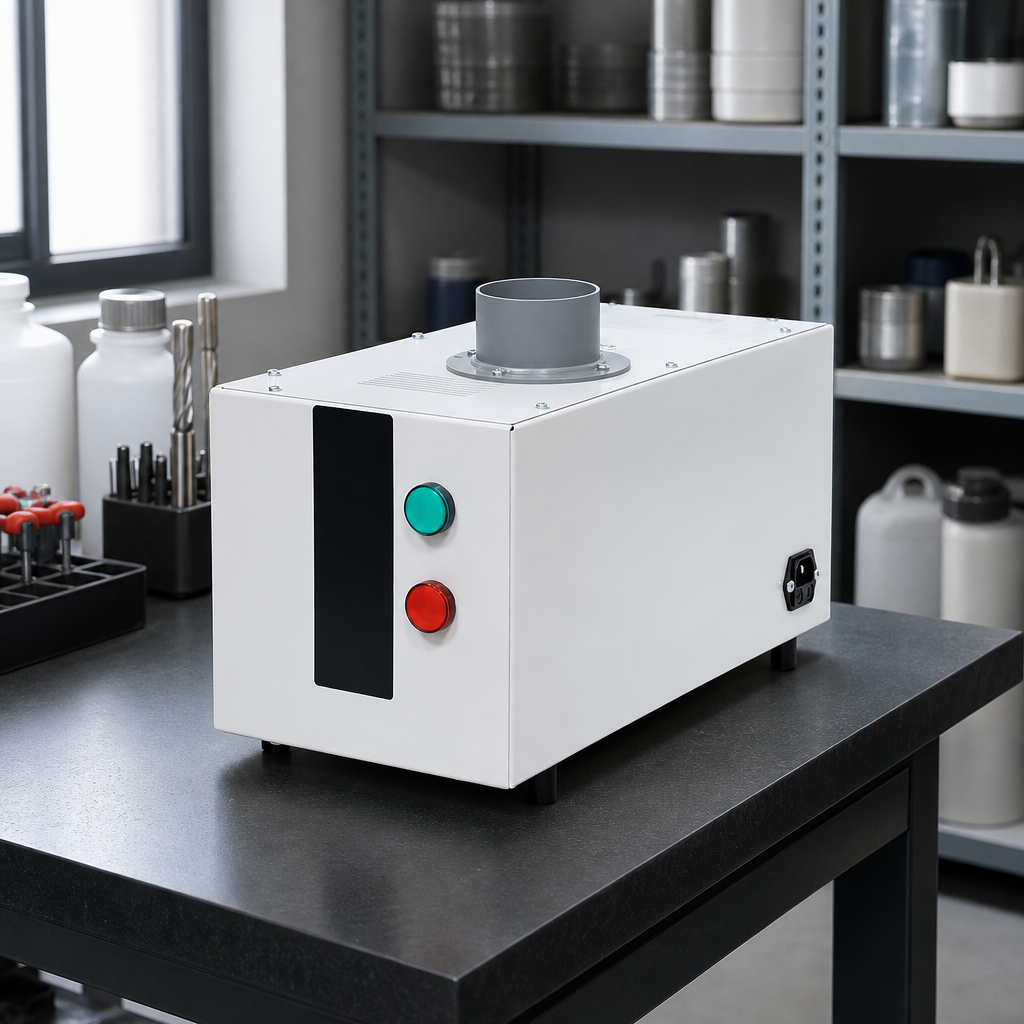

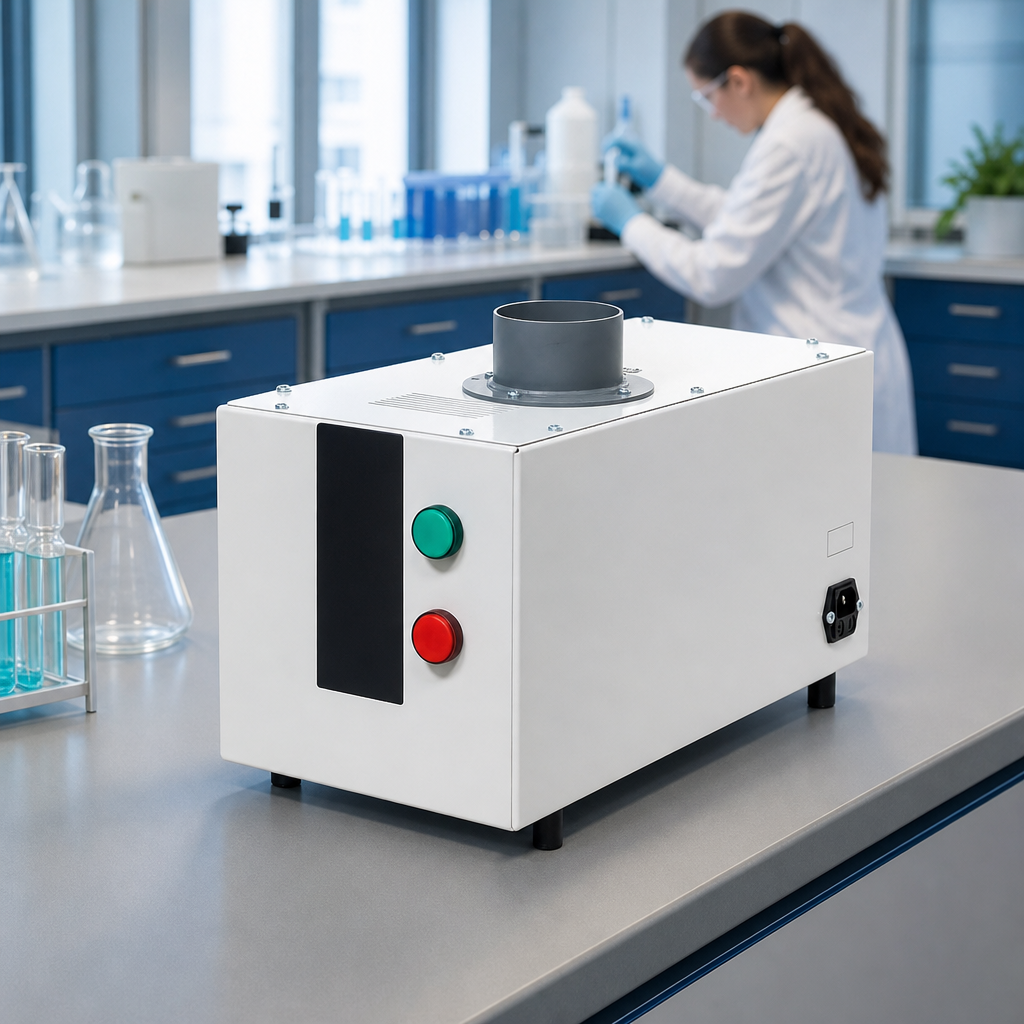

The ATEX-compliant ventilation attachment AM 12 is designed for cabinet use, ensuring up to 120 air changes. Ideal for environments requiring safe air extraction.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 35 |
| Included in delivery | With air extraction monitoring |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | As cabinet attachment |
| Frequency [Hz] | 50 |
| Weight [kg] | 10,1 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- As cabinet attachment
- With exhaust air monitoring
- Not suitable for FM certified hazardous materials cabinets
- EU directive
Benefits
- Ensures safe air extraction in hazardous environments
- Easy to install with plug-and-play functionality
- Compact design saves space in cabinets
- Quiet operation for minimal disruption
Use Cases
- Laboratory cabinets
- Chemical storage cabinets
- Hazardous material cabinets (non-FM certified)
FAQ
Q: What is the power output of the AM 12?
A: The AM 12 has a power output of 35 W.
Q: Is this ventilation attachment suitable for hazardous materials?
A: It is not suitable for FM certified hazardous materials cabinets.
Q: How many air changes can this unit provide?
A: It can provide up to 120 air changes inside the cabinet.
The ATEX-compliant ventilation attachment AM 12 is designed for cabinet use, ensuring up to 120 air changes. Ideal for environments requiring safe air extraction.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 35 |
| Included in delivery | With air extraction monitoring |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | As cabinet attachment |
| Frequency [Hz] | 50 |
| Weight [kg] | 10,1 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- As cabinet attachment
- With exhaust air monitoring
- Not suitable for FM certified hazardous materials cabinets
- EU directive
Benefits
- Ensures safe air extraction in hazardous environments
- Easy to install with plug-and-play functionality
- Compact design saves space in cabinets
- Quiet operation for minimal disruption
Use Cases
- Laboratory cabinets
- Chemical storage cabinets
- Hazardous material cabinets (non-FM certified)
FAQ
Q: What is the power output of the AM 12?
A: The AM 12 has a power output of 35 W.
Q: Is this ventilation attachment suitable for hazardous materials?
A: It is not suitable for FM certified hazardous materials cabinets.
Q: How many air changes can this unit provide?
A: It can provide up to 120 air changes inside the cabinet.
