Short Description:

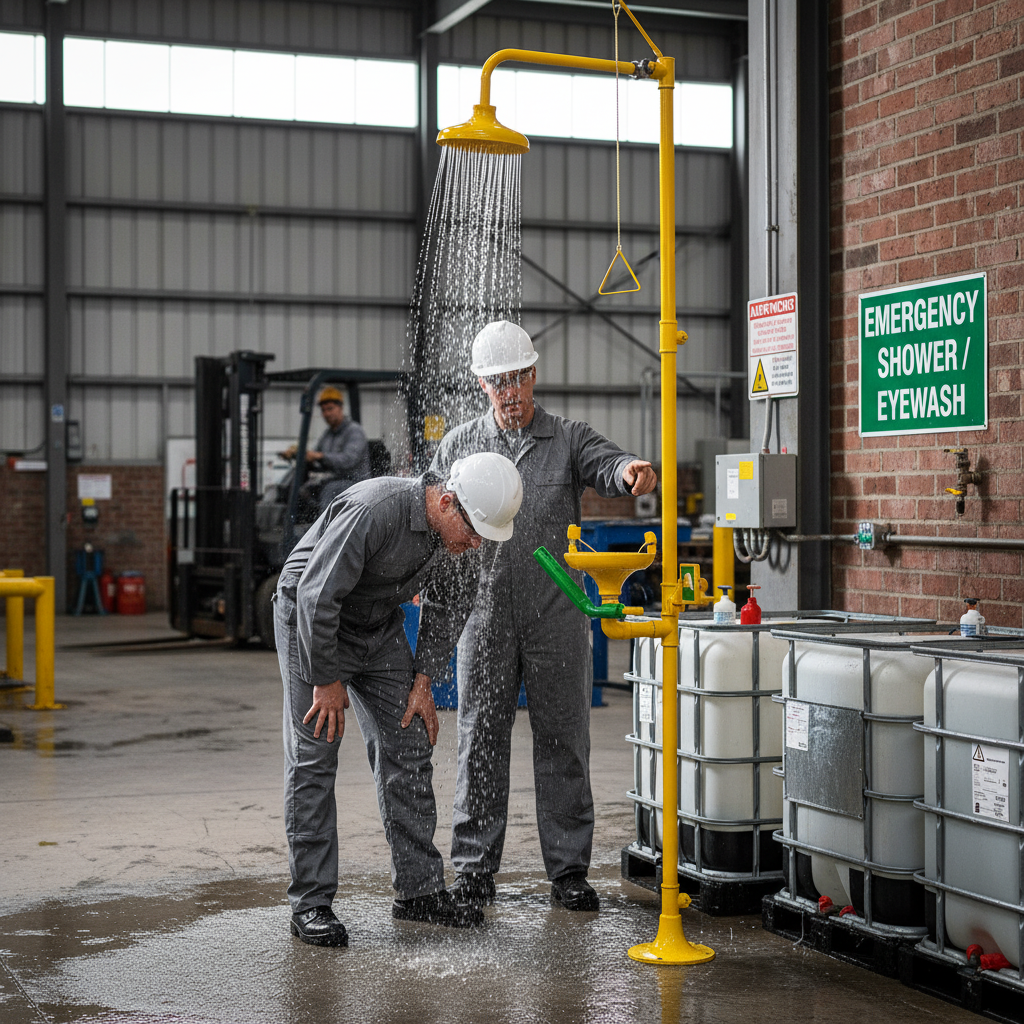

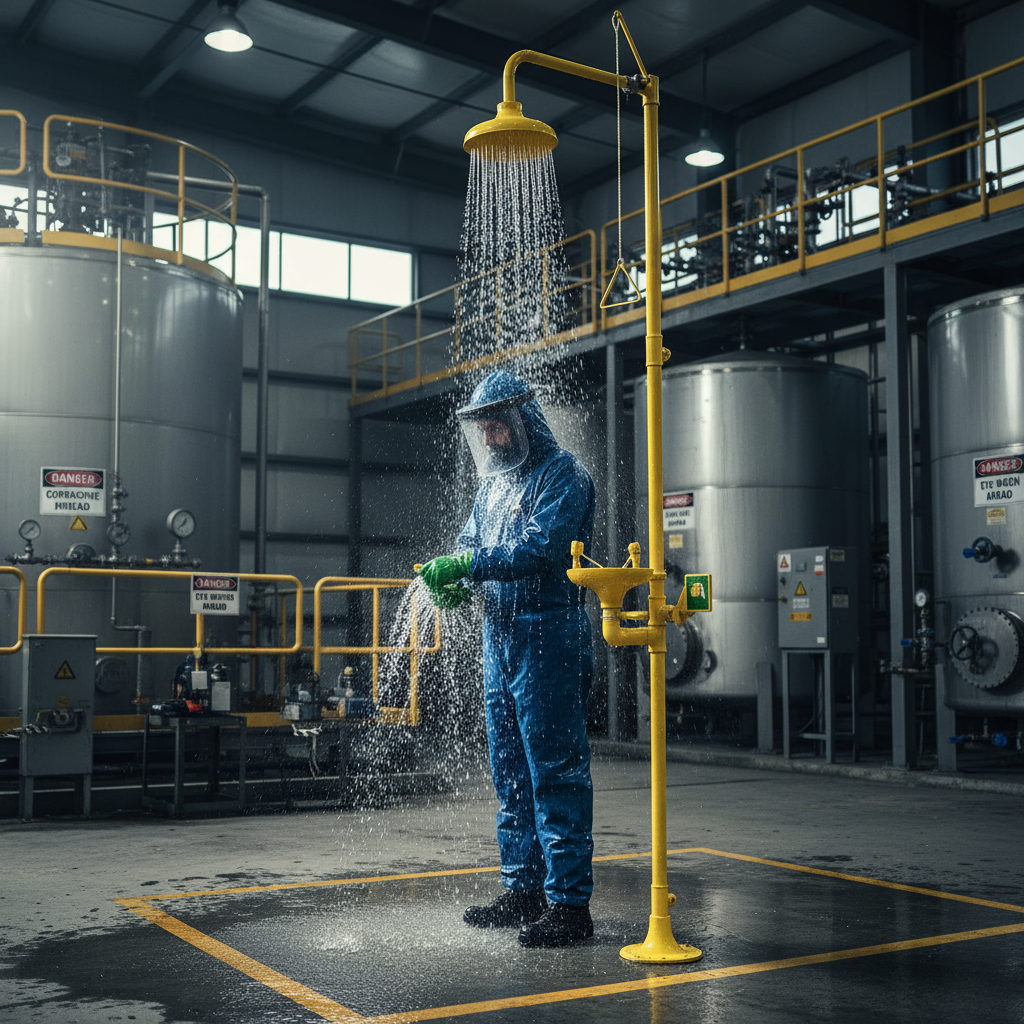

This combination shower provides both a safety shower and eye wash station. It is designed for use in environments where immediate decontamination is necessary.
Features:
- Manufactured using galvanised pipe work with anti-corrosive Polyamide 11 coating
- High visibility yellow plastic coating for good resistance to acids, bases, seawater, and oils
- Brass fittings
- 250mmØ shower head and eye wash bowl made from ABS reinforced plastic
- Two high flow, aerated low pressure outlets with automatic opening dust covers
- Meets and exceeds internationally recognised standards: parts 1 & 2, .3 and ANSI Z358.1
Specifications
- Water inlet: 1¼? BSP
- Water inlet pressure: Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
- Shower flow rate: Regulated at 110lpm
- Shower operation: Pull handle
- Shower valve: Full bore 1?
- Eyewash flow rate: 22lpm
- Eyewash operation: Push paddle
- Eyewash valve: Full bore ½?
- Waste: 1¼? BSP
- Total weight: 18kg
- Dimensions: 76 x 26 x 22cm
Benefits:
- Durable construction ensures long-lasting use in harsh environments
- High visibility design enhances safety in emergency situations
- Automatic dust covers maintain hygiene and readiness for use
Use Cases:
- Laboratories
- Manufacturing facilities
- Chemical processing plants
FAQ:
Q: What is the recommended water inlet pressure?
A: The recommended water inlet pressure is 2 bar, with a maximum of 8 bar.
Q: How is the shower operated?
A: The shower is operated using a pull handle.
Q: What is the flow rate for the eyewash?
A: The eyewash flow rate is 22lpm.
Short Description:
This combination shower provides both a safety shower and eye wash station. It is designed for use in environments where immediate decontamination is necessary.
Features:
- Manufactured using galvanised pipe work with anti-corrosive Polyamide 11 coating
- High visibility yellow plastic coating for good resistance to acids, bases, seawater, and oils
- Brass fittings
- 250mmØ shower head and eye wash bowl made from ABS reinforced plastic
- Two high flow, aerated low pressure outlets with automatic opening dust covers
- Meets and exceeds internationally recognised standards: parts 1 & 2, .3 and ANSI Z358.1
Specifications
- Water inlet: 1¼? BSP
- Water inlet pressure: Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar
- Shower flow rate: Regulated at 110lpm
- Shower operation: Pull handle
- Shower valve: Full bore 1?
- Eyewash flow rate: 22lpm
- Eyewash operation: Push paddle
- Eyewash valve: Full bore ½?
- Waste: 1¼? BSP
- Total weight: 18kg
- Dimensions: 76 x 26 x 22cm
Benefits:
- Durable construction ensures long-lasting use in harsh environments
- High visibility design enhances safety in emergency situations
- Automatic dust covers maintain hygiene and readiness for use
Use Cases:
- Laboratories
- Manufacturing facilities
- Chemical processing plants
FAQ:
Q: What is the recommended water inlet pressure?
A: The recommended water inlet pressure is 2 bar, with a maximum of 8 bar.
Q: How is the shower operated?
A: The shower is operated using a pull handle.
Q: What is the flow rate for the eyewash?
A: The eyewash flow rate is 22lpm.
