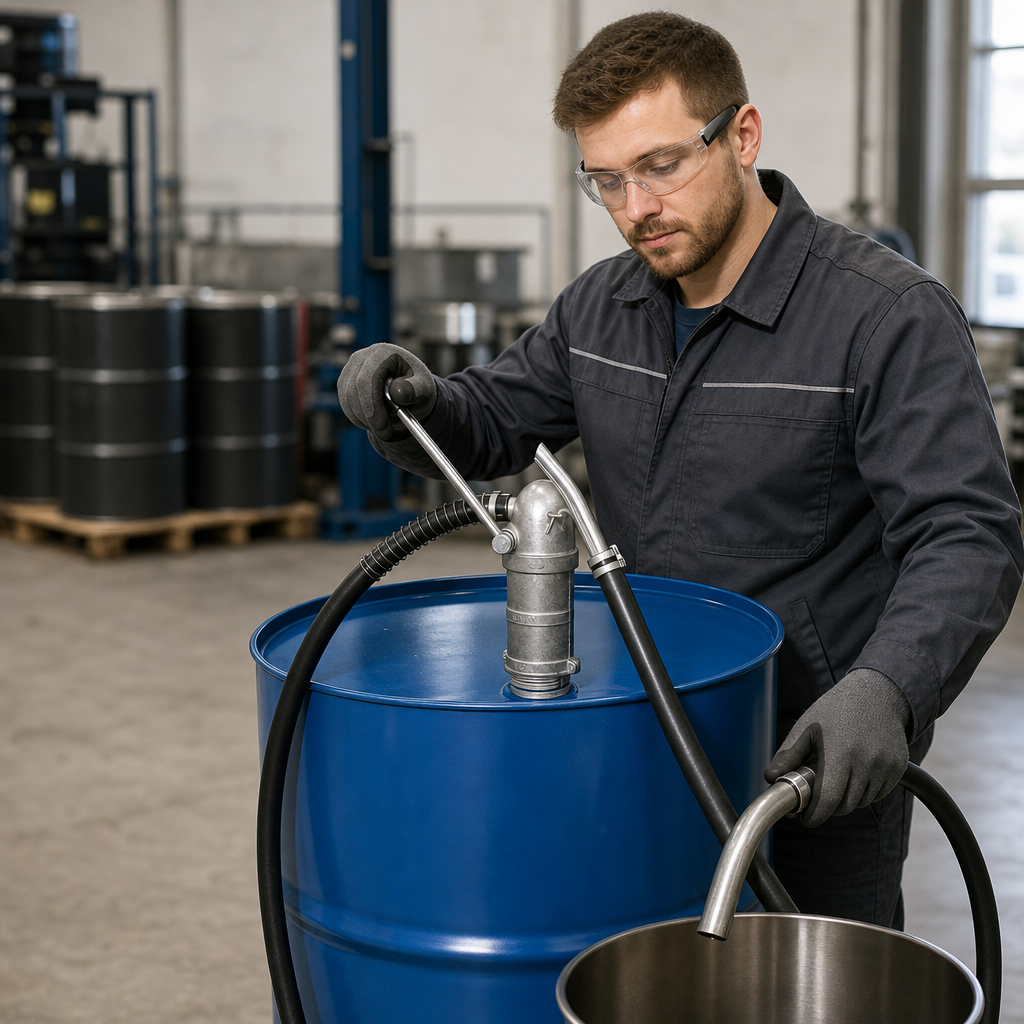

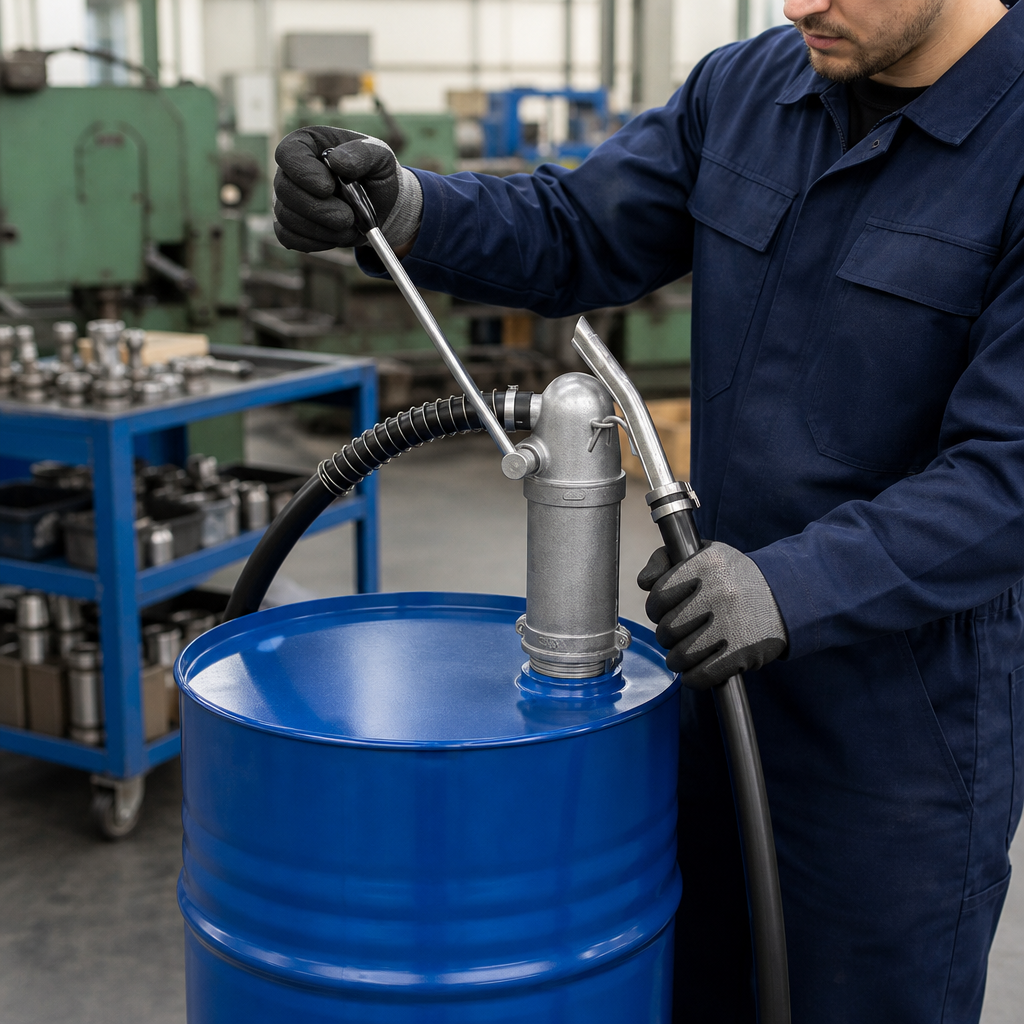

This manual drum pump is designed for the extraction of diesel, heating oil, and low viscosity mineral oils. Ideal for use in petrochemical environments.
Specifications
| Technical data | Details |
|---|---|
| Application | Petrochemical liquids Light mineral oils Flammable media Anti-freeze |
| Immersion depth [mm] | 840 |
| Diameter, immersion tube [mm] | 20 |
| Pump type | Drum pump |
| Length, external [mm] | 100 |
| Height, external [mm] | 450 |
| Hose length [mm] | 2000 |
| Diameter, outlet external | 19 |
| Material | Die-cast zinc alloy |
| Max viscosity [mPas] | 150 |
| Delivery per stroke [l] | 0.25 |
| Max. delivery volume [l/min] | 25 |
| Can be used in Ex zones | Zones according to operator classification |
| Suitable for | Supply container with 1/2" connection |
| Drive | Manual |
| Internal thread | 64x4 |
| External thread | 64x4 |
| External thread 2 | 2" |
| Seal material | Nbr |
| Weight [kg] | 4,5 |
Key Features
- For the extraction of diesel, heating oil EL/L, fuels, petroleum (former danger class a I to III), anti-freeze (undiluted), low viscosity mineral oils
- Suitable for Ex areas: IIA T3
- Diecast, for 205 litre drums with drum thread M 64 x 4 and R 2"
- Pumping capacity: approximately 0.25 ltr/stroke
- Immersion depth: 840 mm
- With conductive hose set DN 19 with anti-kink spring and discharge elbow
Benefits
- Efficient extraction of various petrochemical liquids
- Durable and reliable for demanding applications
- Safe operation in flammable environments
- Easy to use with included hose set
Use Cases
- Extraction of diesel and heating oil
- Pumping low viscosity mineral oils
- Use in petrochemical environments
FAQ
Q: What types of liquids can this pump extract?
A: It can extract diesel, heating oil, anti-freeze, and low viscosity mineral oils.
Q: Is this pump suitable for flammable media?
A: Yes, it is designed for use with flammable media and is suitable for Ex areas.
Q: What is the maximum viscosity this pump can handle?
A: The pump can handle liquids with a maximum viscosity of 150 mPas.
This manual drum pump is designed for the extraction of diesel, heating oil, and low viscosity mineral oils. Ideal for use in petrochemical environments.
Specifications
| Technical data | Details |
|---|---|
| Application | Petrochemical liquids Light mineral oils Flammable media Anti-freeze |
| Immersion depth [mm] | 840 |
| Diameter, immersion tube [mm] | 20 |
| Pump type | Drum pump |
| Length, external [mm] | 100 |
| Height, external [mm] | 450 |
| Hose length [mm] | 2000 |
| Diameter, outlet external | 19 |
| Material | Die-cast zinc alloy |
| Max viscosity [mPas] | 150 |
| Delivery per stroke [l] | 0.25 |
| Max. delivery volume [l/min] | 25 |
| Can be used in Ex zones | Zones according to operator classification |
| Suitable for | Supply container with 1/2" connection |
| Drive | Manual |
| Internal thread | 64x4 |
| External thread | 64x4 |
| External thread 2 | 2" |
| Seal material | Nbr |
| Weight [kg] | 4,5 |
Key Features
- For the extraction of diesel, heating oil EL/L, fuels, petroleum (former danger class a I to III), anti-freeze (undiluted), low viscosity mineral oils
- Suitable for Ex areas: IIA T3
- Diecast, for 205 litre drums with drum thread M 64 x 4 and R 2"
- Pumping capacity: approximately 0.25 ltr/stroke
- Immersion depth: 840 mm
- With conductive hose set DN 19 with anti-kink spring and discharge elbow
Benefits
- Efficient extraction of various petrochemical liquids
- Durable and reliable for demanding applications
- Safe operation in flammable environments
- Easy to use with included hose set
Use Cases
- Extraction of diesel and heating oil
- Pumping low viscosity mineral oils
- Use in petrochemical environments
FAQ
Q: What types of liquids can this pump extract?
A: It can extract diesel, heating oil, anti-freeze, and low viscosity mineral oils.
Q: Is this pump suitable for flammable media?
A: Yes, it is designed for use with flammable media and is suitable for Ex areas.
Q: What is the maximum viscosity this pump can handle?
A: The pump can handle liquids with a maximum viscosity of 150 mPas.
