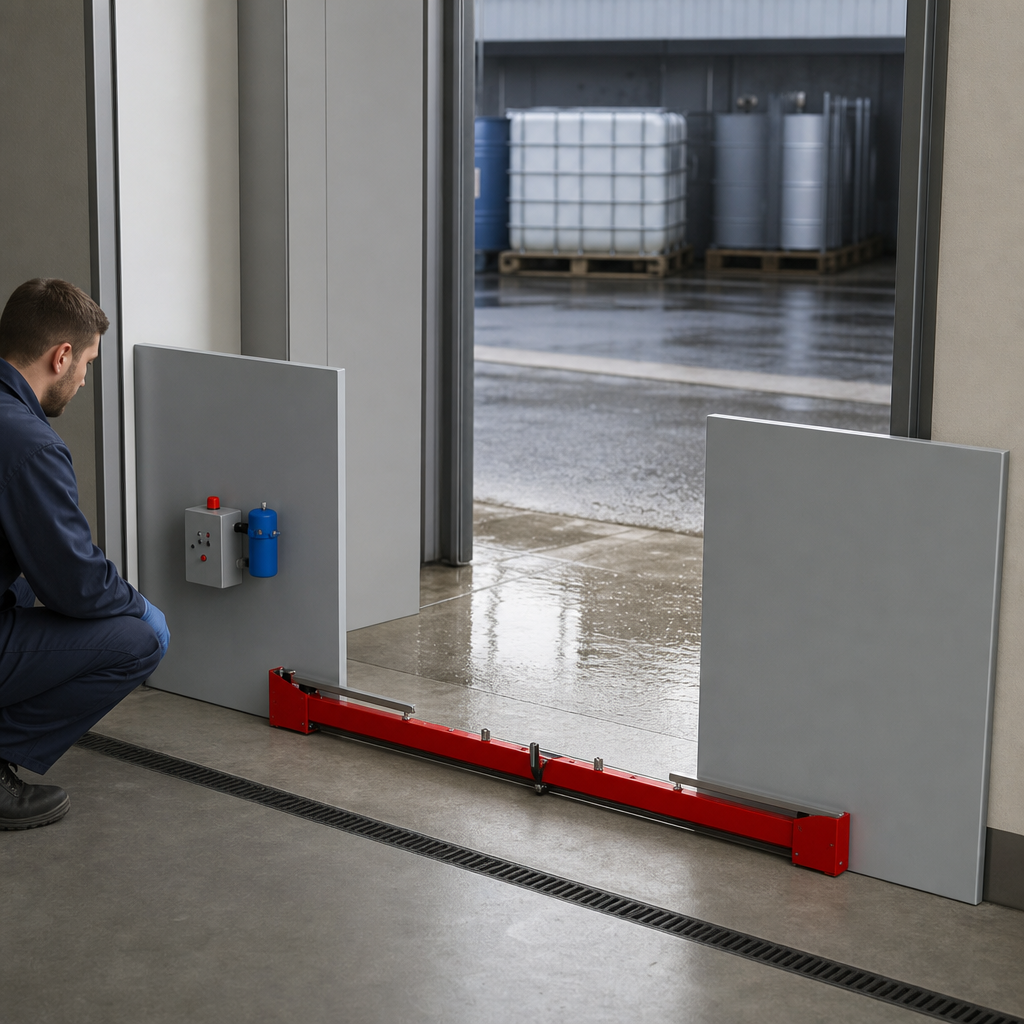

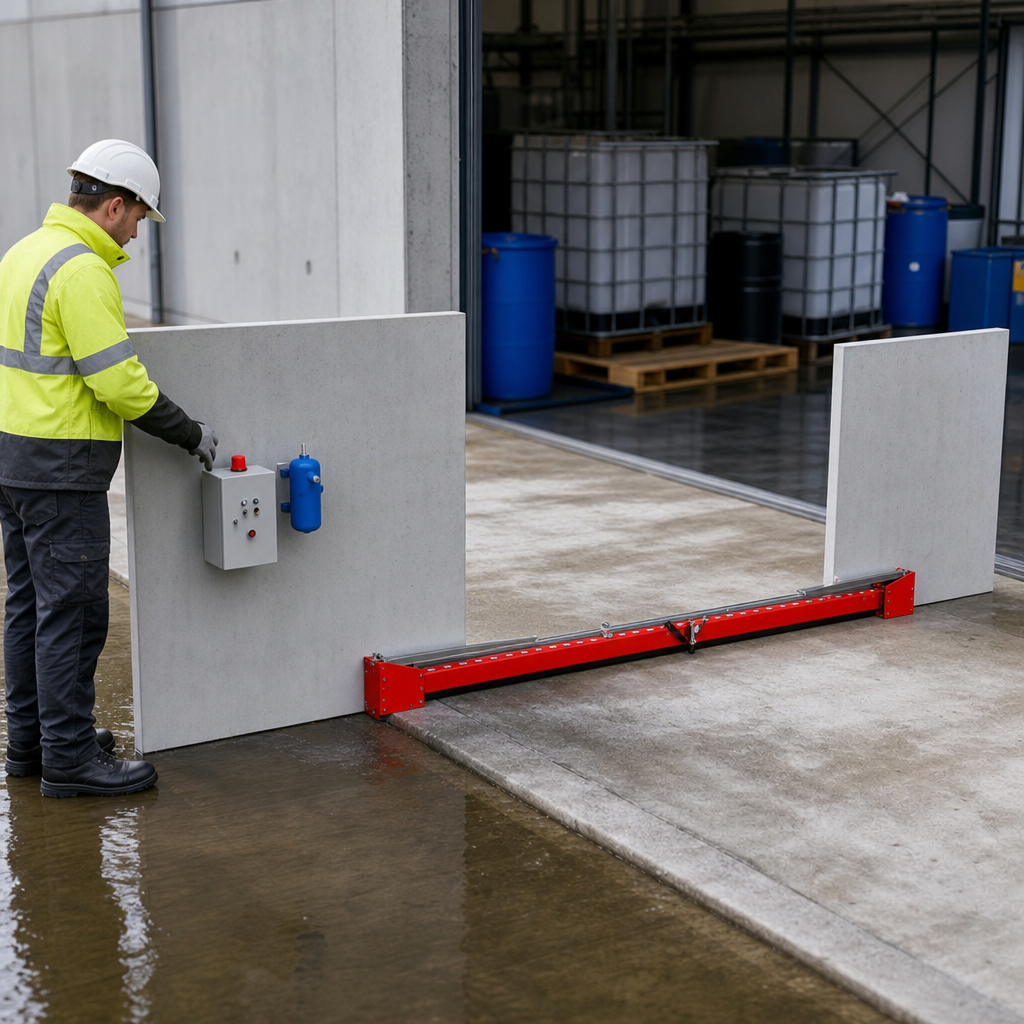

This electropneumatic barrier provides large-area protection against liquid hazardous materials and flood water ingress. Ideal for use in front of warehouses and other vulnerable areas.
Specifications
| Technical data | Details |
|---|---|
| Design | Separation barriers |
| Material | Aluminium |
| Colour | Signal red |
| Application | Leakage barriers Extinguishing water retention |
| Operation | fully automatic |
| Mounting type | stationary, folds down |
Key Features
- Automatic, CE-marked barrier for the protection of doors and gates
- Large-area protection against escaping liquid hazardous materials, e.g. in front of a warehouse; can also be used for protection against flood water ingress
- Prevents contamination of the surrounding area by water-polluting substances in the event of a fire or accident
- Barrier body in aluminium in signal red colour with replaceable, chemically resistant special seal for use on flat and smooth floors
- Controller of the electro-pneumatic barrier is via a push button; connection to the fire alarm centre, liquid sensors, etc. is also possible
- Requires pneumatic installation, compressed air tank, etc.
- Controlled lifting and lowering via a pneumatic cylinder
- Has an emergency stop switch and an anti-trap protection system -> lowering of the cabinet is stopped as soon as an obstacle is detected
- Available dimensions (height: 20 and 30 cm, width: 2500 mm, 2800 mm.. 7000 mm)
Benefits
- Enhances safety by preventing contamination
- Easy to operate with push button control
- Reliable performance in emergency situations
- Durable and resistant to chemicals
Use Cases
- Warehouses
- Industrial facilities
- Flood-prone areas
- Fire safety applications
FAQ
Q: What is the maximum width of the barrier?
A: The barrier can be up to 7 meters wide.
Q: Is the barrier suitable for outdoor use?
A: Yes, it is designed for use on flat and smooth floors.
Q: How is the barrier operated?
A: It is operated via a push button and can connect to fire alarm systems.
This electropneumatic barrier provides large-area protection against liquid hazardous materials and flood water ingress. Ideal for use in front of warehouses and other vulnerable areas.
Specifications
| Technical data | Details |
|---|---|
| Design | Separation barriers |
| Material | Aluminium |
| Colour | Signal red |
| Application | Leakage barriers Extinguishing water retention |
| Operation | fully automatic |
| Mounting type | stationary, folds down |
Key Features
- Automatic, CE-marked barrier for the protection of doors and gates
- Large-area protection against escaping liquid hazardous materials, e.g. in front of a warehouse; can also be used for protection against flood water ingress
- Prevents contamination of the surrounding area by water-polluting substances in the event of a fire or accident
- Barrier body in aluminium in signal red colour with replaceable, chemically resistant special seal for use on flat and smooth floors
- Controller of the electro-pneumatic barrier is via a push button; connection to the fire alarm centre, liquid sensors, etc. is also possible
- Requires pneumatic installation, compressed air tank, etc.
- Controlled lifting and lowering via a pneumatic cylinder
- Has an emergency stop switch and an anti-trap protection system -> lowering of the cabinet is stopped as soon as an obstacle is detected
- Available dimensions (height: 20 and 30 cm, width: 2500 mm, 2800 mm.. 7000 mm)
Benefits
- Enhances safety by preventing contamination
- Easy to operate with push button control
- Reliable performance in emergency situations
- Durable and resistant to chemicals
Use Cases
- Warehouses
- Industrial facilities
- Flood-prone areas
- Fire safety applications
FAQ
Q: What is the maximum width of the barrier?
A: The barrier can be up to 7 meters wide.
Q: Is the barrier suitable for outdoor use?
A: Yes, it is designed for use on flat and smooth floors.
Q: How is the barrier operated?
A: It is operated via a push button and can connect to fire alarm systems.
