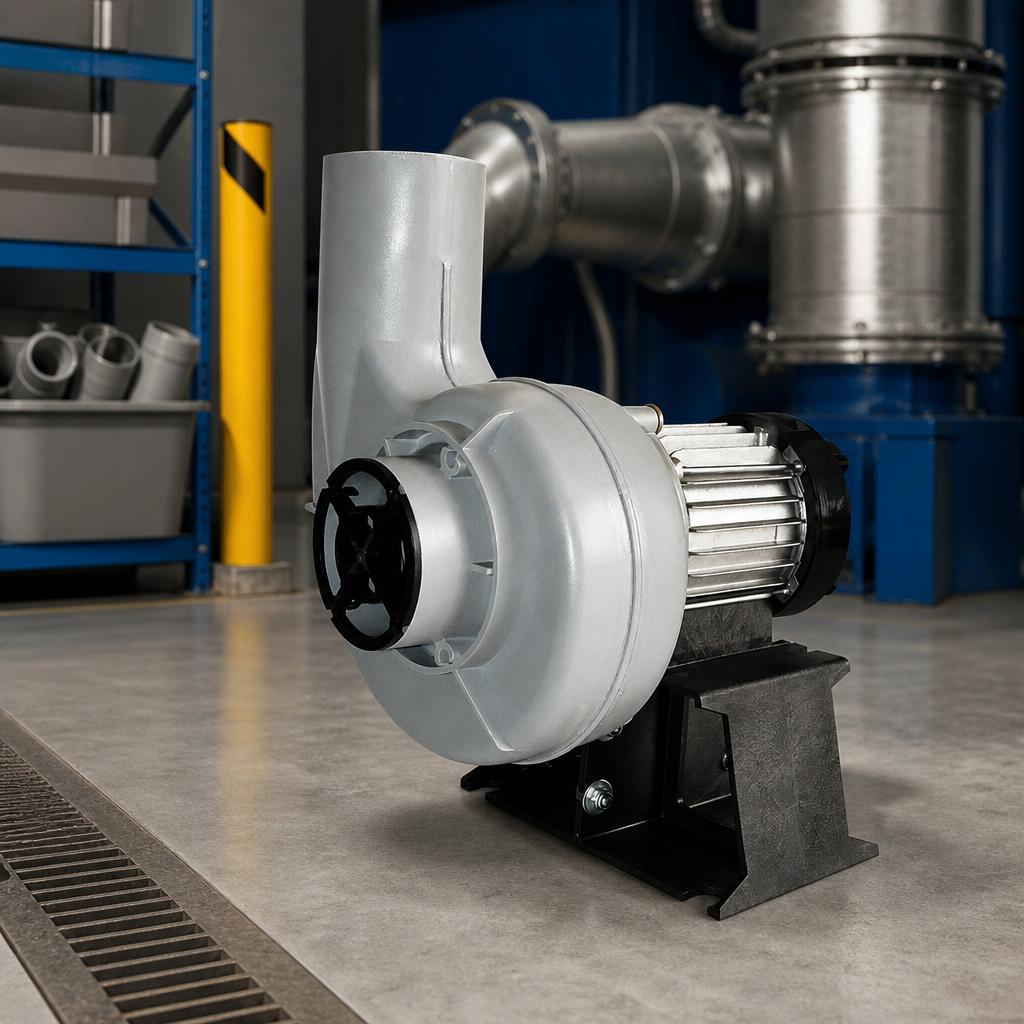

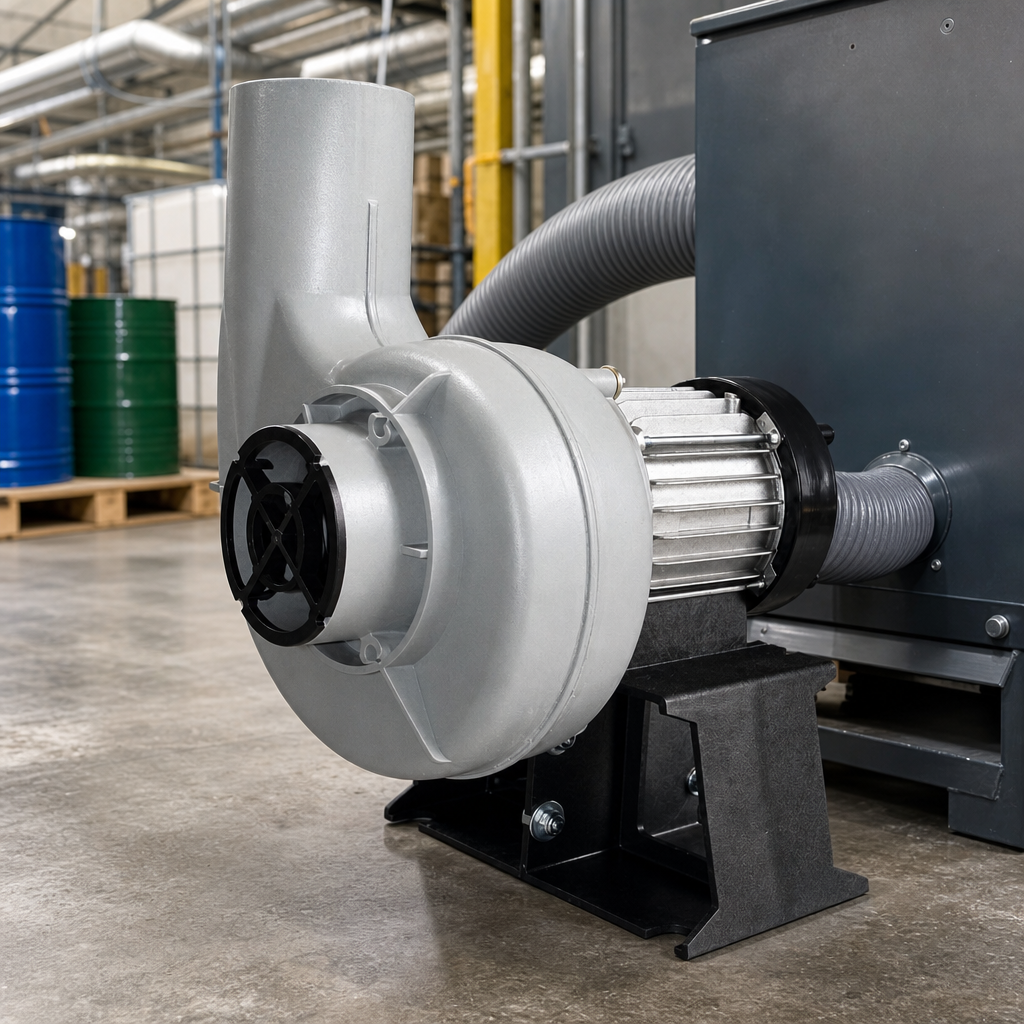

This explosion-proof radial fan is designed for industrial ventilation. With a polypropylene housing and a flow rate of 60-250 m³/H, it ensures safe air extraction.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 250 x 225 x 310 |
| Nominal voltage [V] | 230 |
| Power [W] | 90 |
| Weight [kg] | 4,2 |
Key Features
- The housing and impeller are manufactured from flame retardent polypropylene
- Sealed to prevent gas leakages
- Connection piece Ø 75 mm
- Vdma and CE conformity
- Protection category IP 55
- Flow rate 60-250 m³/H
- Total pressure 240-175 PA
- With PA / GFK mounting bracket
- The maximum extracted medium temperature is 40 °C. In addition, with this series, the dust content of the gas to be pumped must not be higher than the dust content of the outside air in industrial areas (< 5 mg/m³). The temperature at the installation site must not exceed 40 °C. The fan must be protected against falling objects (marking X).
- Explosion-proof, extraction from: EX zone 2, installation outside Ex zone, including vibration damper
- Marking: Ex II 3/_G Ex h IIB T3 Gc X
- Fan operates at constant speed, cannot be regulated
Benefits
- Safe air extraction in explosive environments
- Durable and resistant to gas leakages
- Easy installation with mounting bracket
- Reliable performance in industrial settings
Use Cases
- Industrial ventilation
- Air extraction in EX zones
- Dust control in manufacturing environments
FAQ
Q: What is the maximum flow rate of the fan?
A: The maximum flow rate is 250 m³/H.
Q: Is the fan suitable for use in explosive environments?
A: Yes, it is explosion-proof and suitable for EX zone 2.
Q: Can the fan speed be regulated?
A: No, the fan operates at a constant speed.
