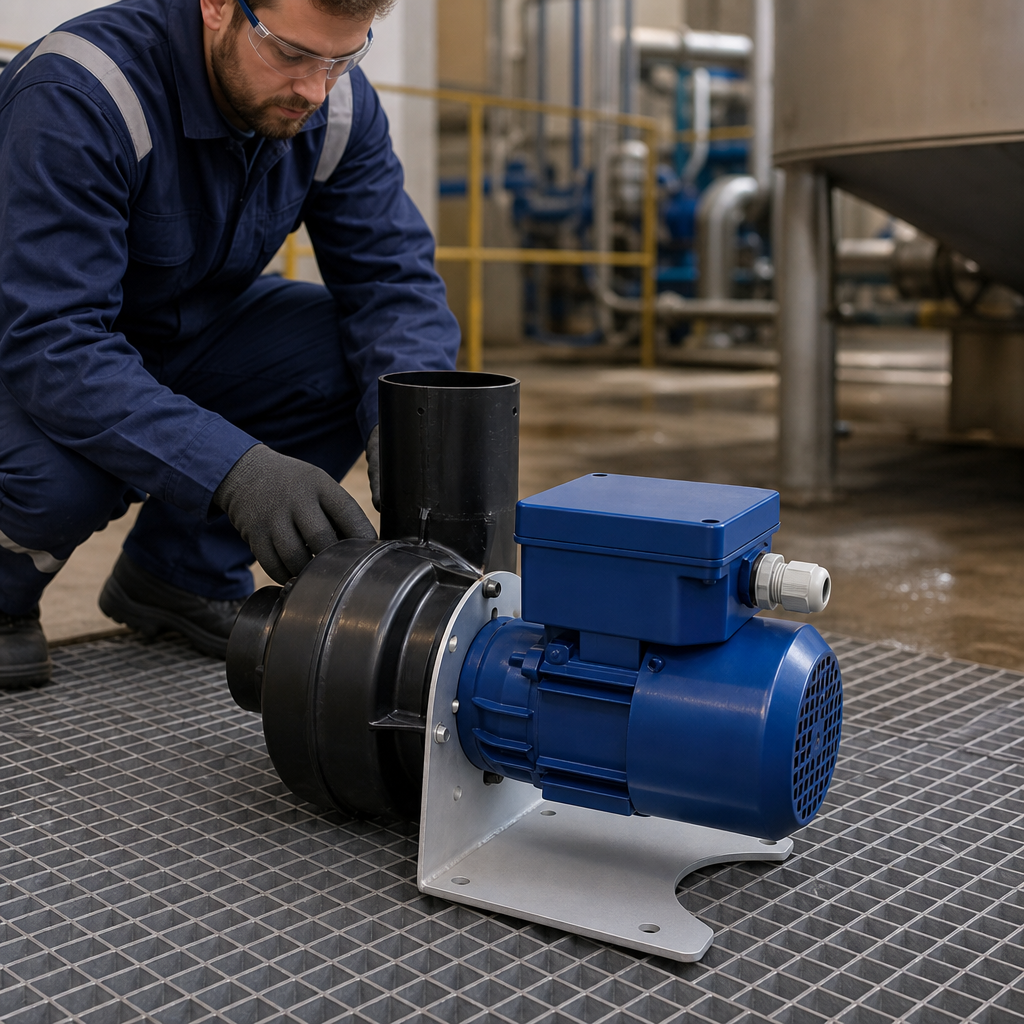

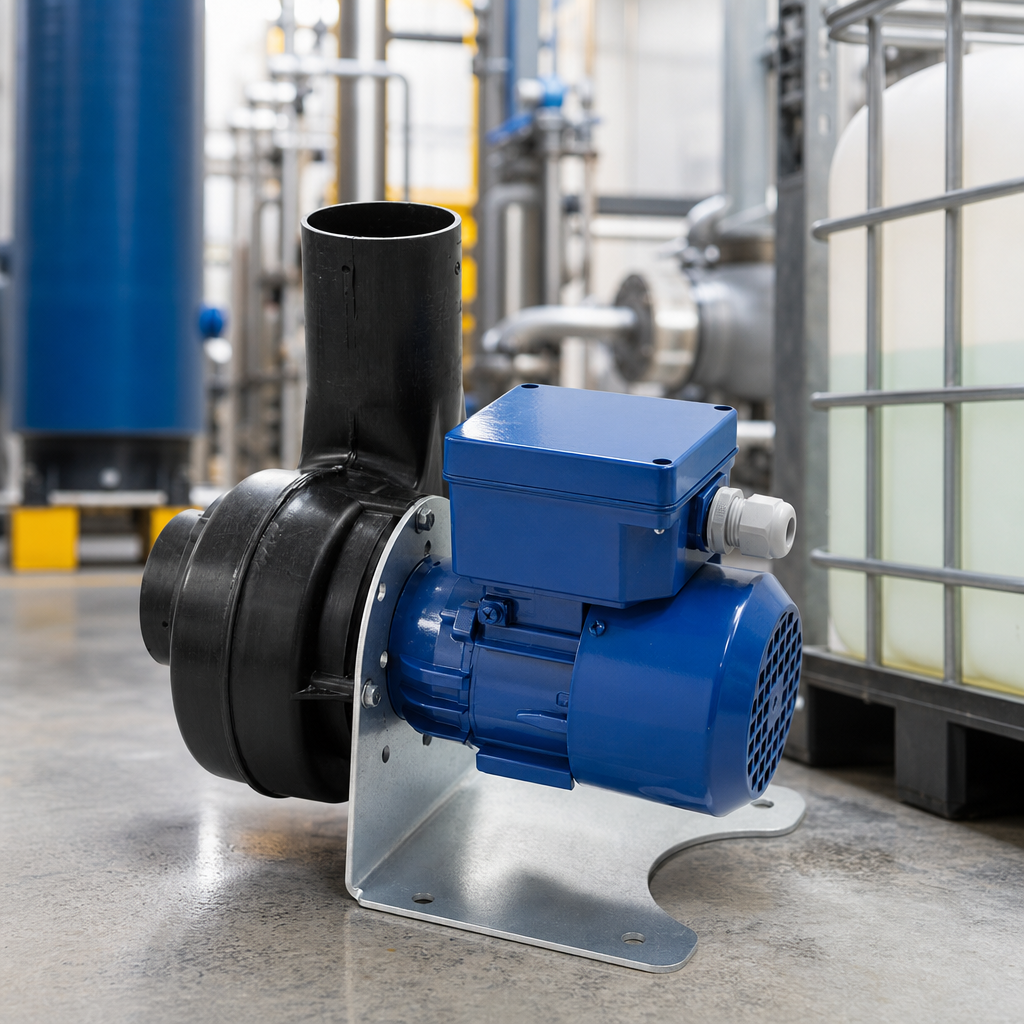

The Explosion-Proof Radial Fan RV 1 is designed for safe ventilation in hazardous environments. Made from flame retardant polypropylene, it ensures durability and safety.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 270 x 225 x 310 |
| Nominal voltage [V] | 400 |
| Power [W] | 90 |
| Weight [kg] | 4,8 |
Key Features
- The housing and impeller are manufactured from flame retardent polypropylene
- Sealed to prevent gas leakages
- Connection piece Ø 75 mm
- Vdma and CE conformity
- Protection category IP 55
- Flow rate 60-250 m³/H
- Total pressure 240-175 PA
- With PA / GFK mounting bracket
- The maximum extracted medium temperature is 40 °C. In addition, with this series, the dust content of the gas to be pumped must not be higher than the dust content of the outside air in industrial areas (< 5 mg/m³). The temperature at the installation site must not exceed 40 °C. The fan must be protected against falling objects (marking X).
- Ex-proof version
- Marking: EX II 2/2G Ex h IIB T3 Gb X
- The fan operates at a constant speed and cannot be adjusted. Speed, 2760 rpm
- The fan can therefore only be controlled mechanically by flow control within the exhaust air duct.
Benefits
- Ensures safe ventilation in hazardous environments
- Durable construction for long-lasting use
- Prevents gas leakages for enhanced safety
- Suitable for a variety of industrial applications
Use Cases
- Hazardous material handling areas
- Chemical processing facilities
- Industrial environments with explosive atmospheres
FAQ
Q: What is the maximum temperature for operation?
A: The maximum extracted medium temperature is 40 °C.
Q: Is the fan suitable for EX zones?
A: Yes, it is suitable for EX zones.
Q: What is the flow rate of the fan?
A: The fan has a flow rate of 60-250 m³/H.
