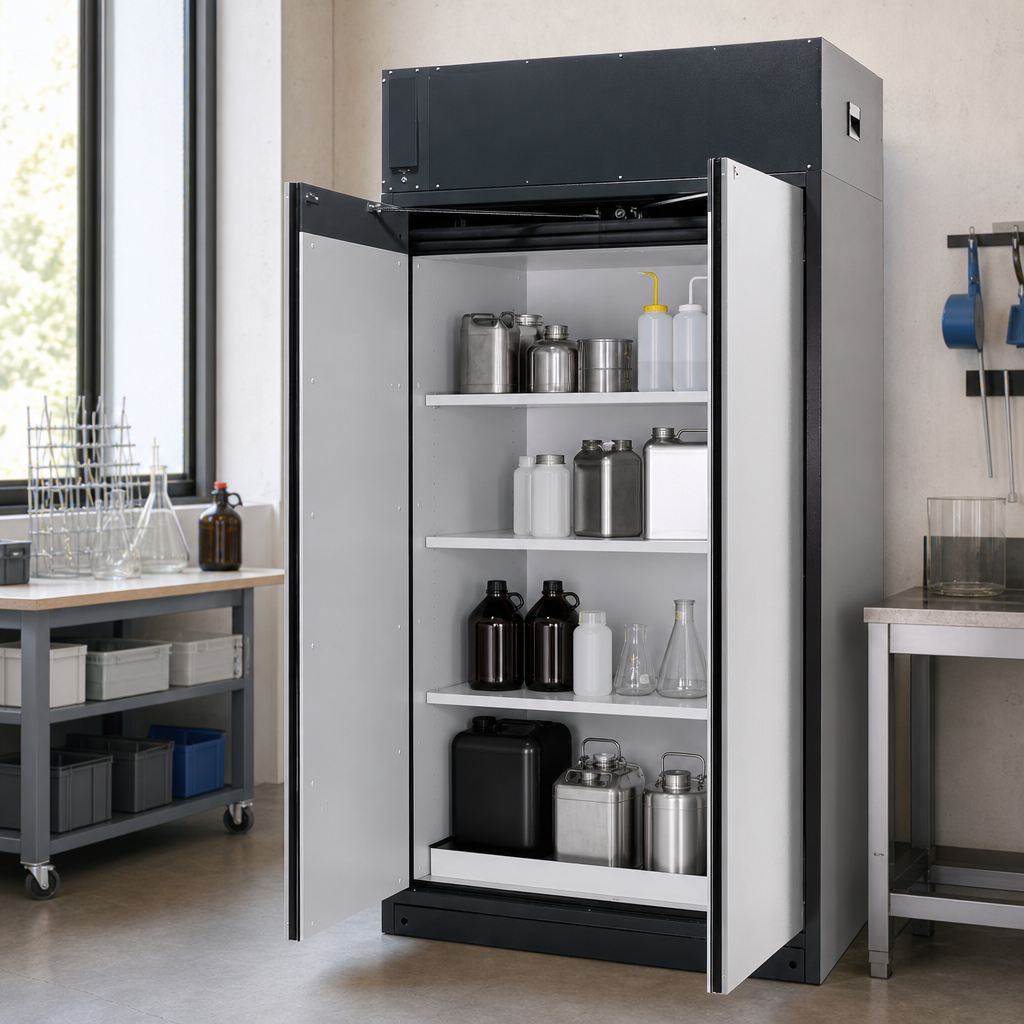

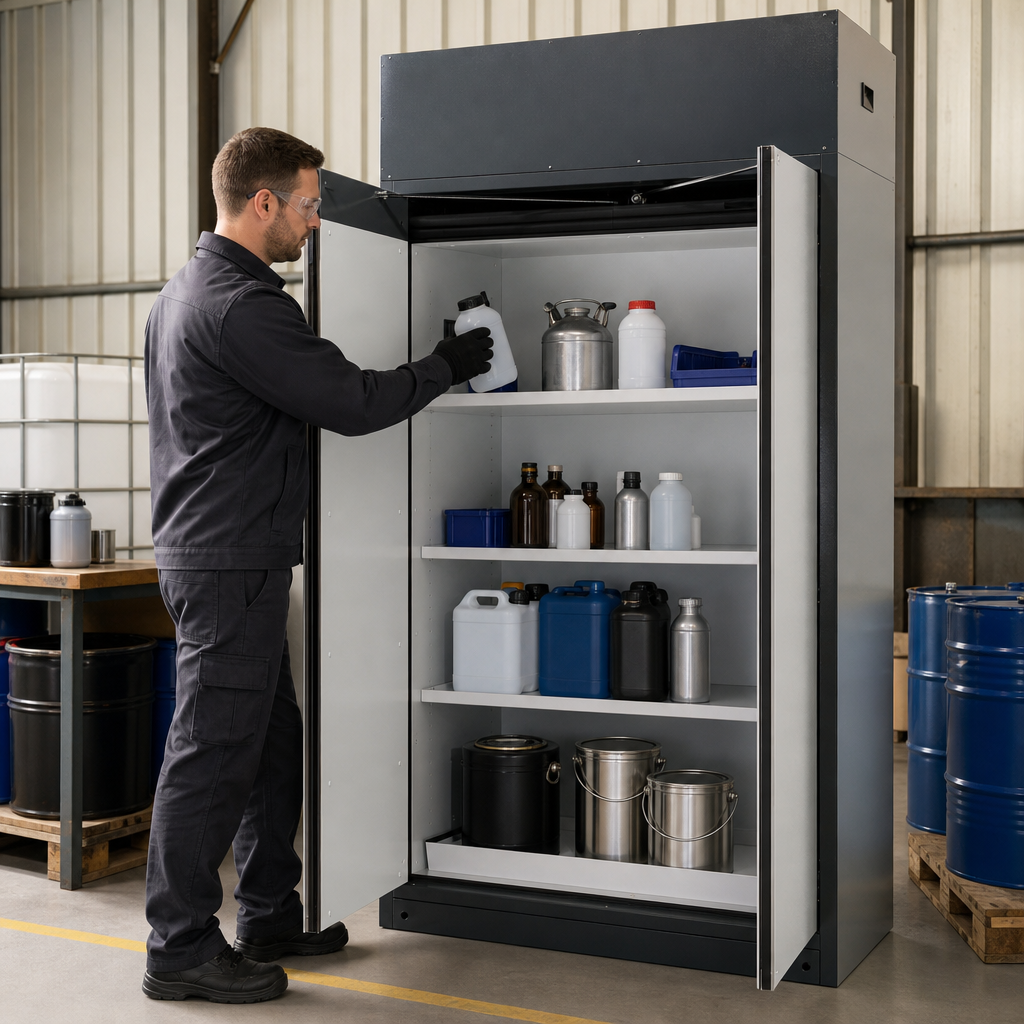

This fire-rated air recirculating hazmat cabinet is designed for the safe storage of hazardous materials. Ideal for laboratories and industrial settings.
Specifications
| Technical data | Details |
|---|---|
| Cabinet type | High cabinet |
| Fire resistance | Type 90 |
| Media to be stored | Flammable liquids |
| Features | 3 inlay shelves, sump and grid cover |
| Number of storage levels | 4 |
| Door version | Hinged door |
| Door hinge | both sides |
| Door design | 2 wing doors |
| Colour | Anthracite grey |
| Door colour | Grey |
| Body colour | Anthracite |
| Material | Sheet steel |
| External dimensions W x D x H [mm] | 1193 x 615 x 2294 |
| Internal dimensions W x D x H [mm] | 1050 x 522 x 1647 |
| Weight [kg] | 524,5 |
| Shelf load capacity [kg] | 75 |
| Floor spill pallet containment volume [l] | 33 |
| Features | With fitted or inlay shelves |
| Number of spill pallets | 1 |
Key Features
- No separate air extraction outside is required, incl. multi-stage broadband filter
- Incl. modern monitoring electronics
- Improved flexibility for storing hazardous materials in one cabinet
- Fire resistance class 90 minutes (Type 90 in accordance with EN 14470-1)
- 2-tone unique, modern look: Body in anthracite grey (RAL 7016), doors available in: Safety yellow (RAL 1004) Light grey (RAL 7035) Traffic red ( RAL 3020)
- With adjustable feet to be used on uneven floor surfaces
- Open two doors at the same time with one hand, doors are held by the standard door hold-open device
- The standard door closer releases the doors after 60 seconds, with a visual and audible warning signal before the doors are closed
- Manufactured with high quality materials including insulation using environmentally-friendly Class A insulation (DIN 4102)
- Integrated base, accessible underneath, making it easy to change location (base can be closed off by optional panel)
- Doors can be locked with profile cylinder (closing system compatible) and lock indicator (red/green)
- Extremely robust construction with scratch-proof paint
- Complete closing mechanism and safety equipment are corrosion protected and mounted outside the storage room
- Type approved floor spill pallet to StawaR
Benefits
- Safe storage of hazardous materials
- Fire resistance for added safety
- Environmentally-friendly insulation
- Easy access and organization with adjustable shelves
- Durable construction for long-lasting use
Use Cases
- Laboratories
- Industrial settings
- Chemical storage
- Workshops handling hazardous substances
FAQ
Q: What is the fire resistance rating?
A: The cabinet has a fire resistance rating of 90 minutes.
Q: What materials can be stored?
A: It is designed for the storage of flammable liquids.
Q: How many shelves does it have?
A: It includes 3 inlay shelves.
This fire-rated air recirculating hazmat cabinet is designed for the safe storage of hazardous materials. Ideal for laboratories and industrial settings.
Specifications
| Technical data | Details |
|---|---|
| Cabinet type | High cabinet |
| Fire resistance | Type 90 |
| Media to be stored | Flammable liquids |
| Features | 3 inlay shelves, sump and grid cover |
| Number of storage levels | 4 |
| Door version | Hinged door |
| Door hinge | both sides |
| Door design | 2 wing doors |
| Colour | Anthracite grey |
| Door colour | Grey |
| Body colour | Anthracite |
| Material | Sheet steel |
| External dimensions W x D x H [mm] | 1193 x 615 x 2294 |
| Internal dimensions W x D x H [mm] | 1050 x 522 x 1647 |
| Weight [kg] | 524,5 |
| Shelf load capacity [kg] | 75 |
| Floor spill pallet containment volume [l] | 33 |
| Features | With fitted or inlay shelves |
| Number of spill pallets | 1 |
Key Features
- No separate air extraction outside is required, incl. multi-stage broadband filter
- Incl. modern monitoring electronics
- Improved flexibility for storing hazardous materials in one cabinet
- Fire resistance class 90 minutes (Type 90 in accordance with EN 14470-1)
- 2-tone unique, modern look: Body in anthracite grey (RAL 7016), doors available in: Safety yellow (RAL 1004) Light grey (RAL 7035) Traffic red ( RAL 3020)
- With adjustable feet to be used on uneven floor surfaces
- Open two doors at the same time with one hand, doors are held by the standard door hold-open device
- The standard door closer releases the doors after 60 seconds, with a visual and audible warning signal before the doors are closed
- Manufactured with high quality materials including insulation using environmentally-friendly Class A insulation (DIN 4102)
- Integrated base, accessible underneath, making it easy to change location (base can be closed off by optional panel)
- Doors can be locked with profile cylinder (closing system compatible) and lock indicator (red/green)
- Extremely robust construction with scratch-proof paint
- Complete closing mechanism and safety equipment are corrosion protected and mounted outside the storage room
- Type approved floor spill pallet to StawaR
Benefits
- Safe storage of hazardous materials
- Fire resistance for added safety
- Environmentally-friendly insulation
- Easy access and organization with adjustable shelves
- Durable construction for long-lasting use
Use Cases
- Laboratories
- Industrial settings
- Chemical storage
- Workshops handling hazardous substances
FAQ
Q: What is the fire resistance rating?
A: The cabinet has a fire resistance rating of 90 minutes.
Q: What materials can be stored?
A: It is designed for the storage of flammable liquids.
Q: How many shelves does it have?
A: It includes 3 inlay shelves.
Delivery Information
🚚 Free UK Delivery
All orders delivered free to mainland UK addresses. No minimum order.
⚡ 24hr Dispatch
In-stock items dispatched within 24 hours when ordered before 2pm on weekdays.
📦 Pallet Delivery
Heavy items (over 30kg) are delivered on pallets via tail-lift vehicle. Please ensure forklift or pallet truck access is available at your premises.
🗓️ Delivery Timescale
Typically 1–3 working days after dispatch. Scottish Highlands, islands & Northern Ireland may incur surcharges — call 01744 520 110 to confirm.
Returns Policy
We offer a 30-day returns policy on all stocked items. Products must be unused, in original packaging, and in resaleable condition. Bespoke or made-to-order items cannot be returned unless faulty. Contact sales@spill-control-products.co.uk or call 01744 520 110 to arrange a return.
Compliance & Certification
🛡️ ÜHP Certified
Independent European certification confirming secondary containment performance. Recognised by the UK Environment Agency.
⚗️ COSHH Compliant
Supports compliance with the Control of Substances Hazardous to Health Regulations 2002. Documentation included for risk assessments.
🔥 H224–H226 Approved
Certified for storage of flammable liquids including solvents, fuels, and petroleum derivatives.
🌍 Environment Agency
Meets EA Pollution Prevention Guidelines (PPG) for secondary containment, including the 110% sump volume rule.
For site-specific compliance questions, contact our technical team on 01744 520 110 or email sales@spill-control-products.co.uk.
