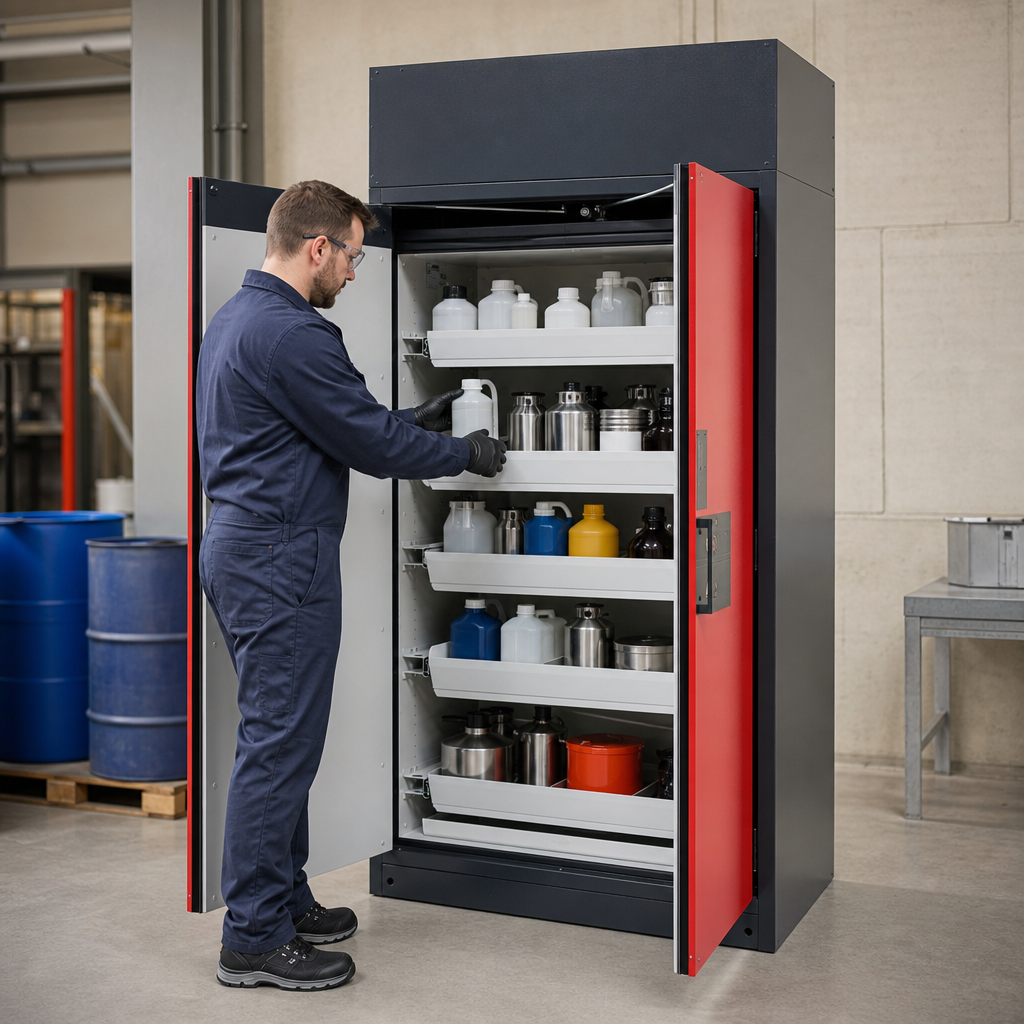

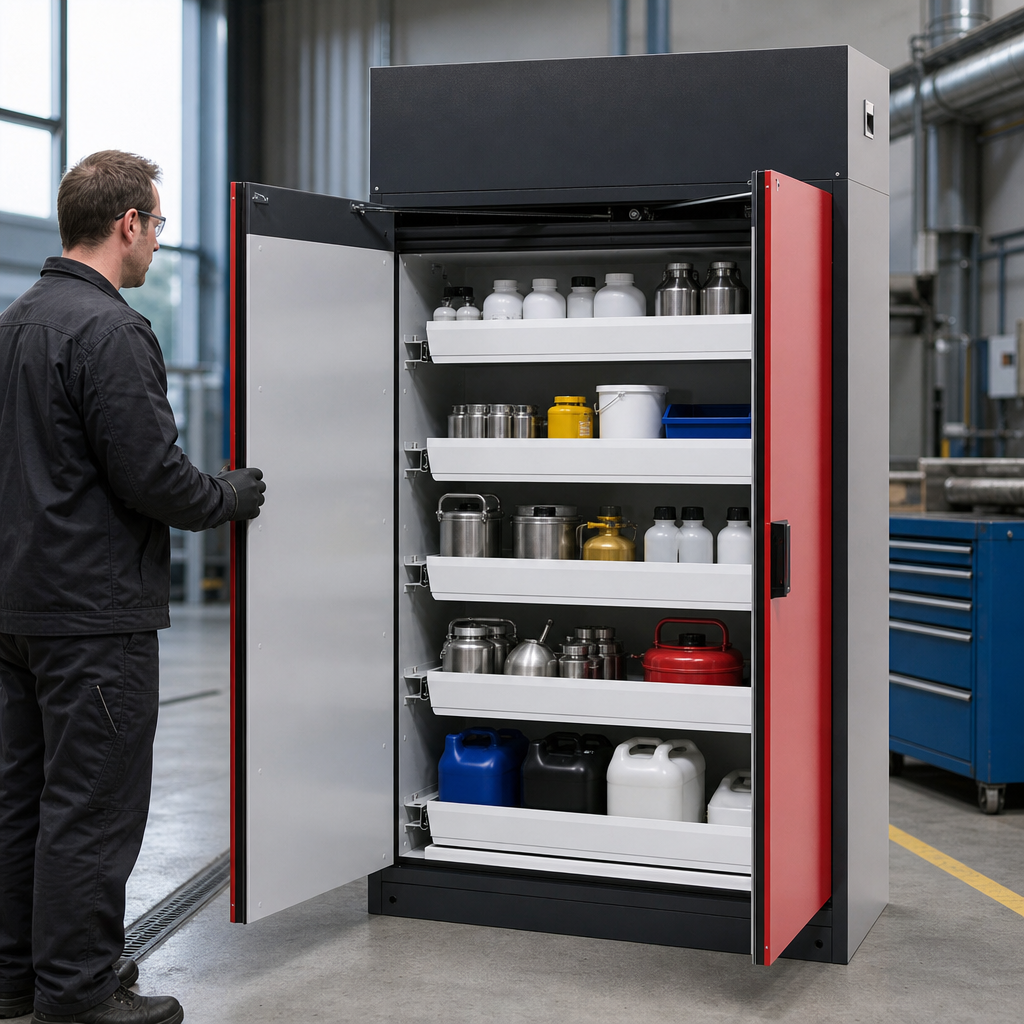

This fire-rated air recirculating hazmat cabinet is designed for safe storage of hazardous materials. It features red doors and includes 6 pullout spill trays for easy access.
Specifications
| Technical data | Details |
|---|---|
| Cabinet type | High cabinet |
| Fire resistance | Type 90 |
| Media to be stored | Flammable liquids |
| Features | 6 slide-out spill trays |
| Number of storage levels | 6 |
| Number of slide-out spill trays | 6 |
| Door version | Hinged door |
| Door hinge | both sides |
| Door design | 2 wing doors |
| Colour | Anthracite grey |
| Door colour | Red |
| Body colour | Anthracite |
| Material | Sheet steel |
| External dimensions W x D x H [mm] | 1193 x 615 x 2294 |
| Internal dimensions W x D x H [mm] | 1050 x 522 x 1647 |
| Weight [kg] | 549,402 |
| Slide-out spill tray load capacity [kg] | 60 |
| Floor spill pallet containment volume [l] | 33 |
| Features | With slide-out spill trays/ slide-out shelves |
| Number of spill pallets | 1 |
Key Features
- No separate air extraction outside is required, incl. multi-stage broadband filter
- Incl. modern monitoring electronics
- Improved flexibility for storing hazardous materials in one cabinet
- Fire resistance class 90 minutes (Type 90 in accordance with EN 14470-1)
- 2-tone unique, modern look: Body in anthracite grey (RAL 7016), doors available in: Safety yellow (RAL 1004) Light grey (RAL 7035) Traffic red ( RAL 3020)
- With adjustable feet to be used on uneven floor surfaces
- Open two doors at the same time with one hand, doors are held by the standard door hold-open device
- The standard door closer releases the doors after 60 seconds, with a visual and audible warning signal before the doors are closed
- Manufactured with high quality materials including insulation using environmentally-friendly Class A insulation (DIN 4102)
- Integrated base, accessible underneath, making it easy to change location (base can be closed off by optional panel)
- Doors can be locked with profile cylinder (closing system compatible) and lock indicator (red/green)
- Extremely robust construction with scratch-proof paint
- Complete closing mechanism and safety equipment are corrosion protected and mounted outside the storage room
- Type approved floor spill pallet to StawaR
Benefits
- Safe storage of hazardous materials
- Easy access with pullout trays
- Fire-resistant design for added safety
- Durable and corrosion-protected materials
- Flexibility in storage options
Use Cases
- Storing flammable liquids
- Hazardous material containment
- Industrial and laboratory use
FAQ
Q: What is the fire resistance rating?
A: The cabinet has a fire resistance class of 90 minutes.
Q: How many spill trays does it have?
A: It includes 6 pullout spill trays.
Q: What materials can be stored?
A: It is designed for storing flammable liquids and other hazardous materials.
This fire-rated air recirculating hazmat cabinet is designed for safe storage of hazardous materials. It features red doors and includes 6 pullout spill trays for easy access.
Specifications
| Technical data | Details |
|---|---|
| Cabinet type | High cabinet |
| Fire resistance | Type 90 |
| Media to be stored | Flammable liquids |
| Features | 6 slide-out spill trays |
| Number of storage levels | 6 |
| Number of slide-out spill trays | 6 |
| Door version | Hinged door |
| Door hinge | both sides |
| Door design | 2 wing doors |
| Colour | Anthracite grey |
| Door colour | Red |
| Body colour | Anthracite |
| Material | Sheet steel |
| External dimensions W x D x H [mm] | 1193 x 615 x 2294 |
| Internal dimensions W x D x H [mm] | 1050 x 522 x 1647 |
| Weight [kg] | 549,402 |
| Slide-out spill tray load capacity [kg] | 60 |
| Floor spill pallet containment volume [l] | 33 |
| Features | With slide-out spill trays/ slide-out shelves |
| Number of spill pallets | 1 |
Key Features
- No separate air extraction outside is required, incl. multi-stage broadband filter
- Incl. modern monitoring electronics
- Improved flexibility for storing hazardous materials in one cabinet
- Fire resistance class 90 minutes (Type 90 in accordance with EN 14470-1)
- 2-tone unique, modern look: Body in anthracite grey (RAL 7016), doors available in: Safety yellow (RAL 1004) Light grey (RAL 7035) Traffic red ( RAL 3020)
- With adjustable feet to be used on uneven floor surfaces
- Open two doors at the same time with one hand, doors are held by the standard door hold-open device
- The standard door closer releases the doors after 60 seconds, with a visual and audible warning signal before the doors are closed
- Manufactured with high quality materials including insulation using environmentally-friendly Class A insulation (DIN 4102)
- Integrated base, accessible underneath, making it easy to change location (base can be closed off by optional panel)
- Doors can be locked with profile cylinder (closing system compatible) and lock indicator (red/green)
- Extremely robust construction with scratch-proof paint
- Complete closing mechanism and safety equipment are corrosion protected and mounted outside the storage room
- Type approved floor spill pallet to StawaR
Benefits
- Safe storage of hazardous materials
- Easy access with pullout trays
- Fire-resistant design for added safety
- Durable and corrosion-protected materials
- Flexibility in storage options
Use Cases
- Storing flammable liquids
- Hazardous material containment
- Industrial and laboratory use
FAQ
Q: What is the fire resistance rating?
A: The cabinet has a fire resistance class of 90 minutes.
Q: How many spill trays does it have?
A: It includes 6 pullout spill trays.
Q: What materials can be stored?
A: It is designed for storing flammable liquids and other hazardous materials.
