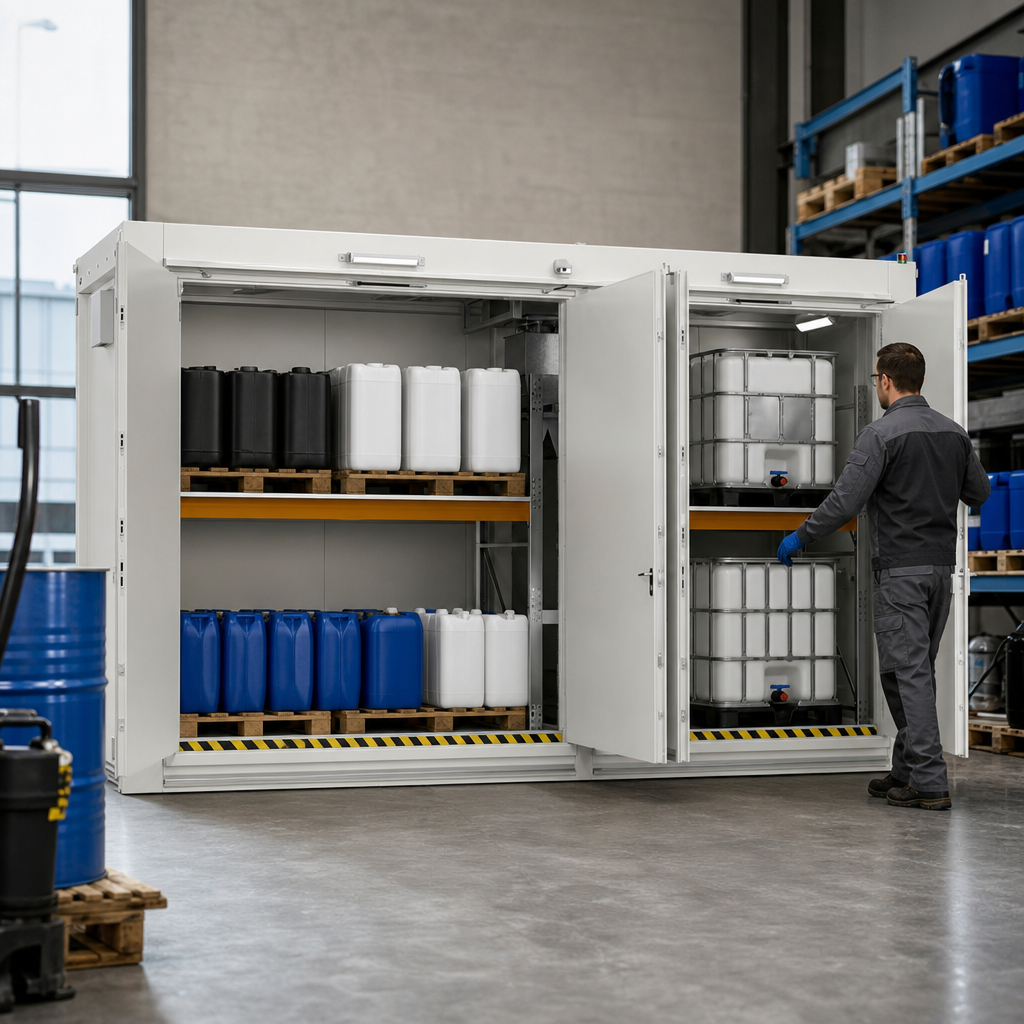

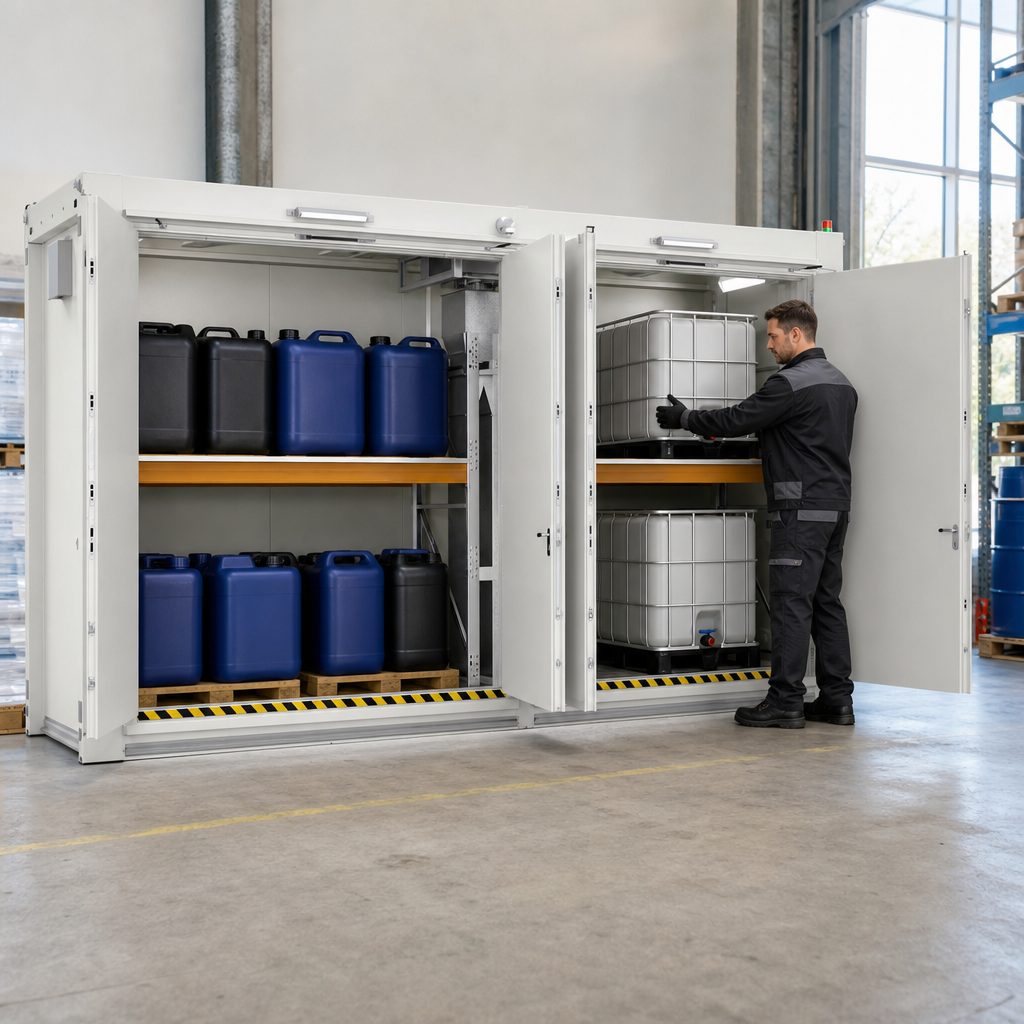

This fire-rated storage container is designed for safe storage of hazardous materials. Ideal for use in production halls or next to external walls.
Specifications
| Technical data | Details |
|---|---|
| Clear bay depth [mm] | 1440 |
| Dimensions (without attachments) W x D x H [mm] | 6882 x 1784 x 3594 |
| Bay dimensions W x D x H [mm] | 2700 x 1440 x 1331 |
| Door version | Hinged door |
| Door design | 2 x 2-wing |
| Load capacity [kg/m²] | 1250 |
| Containment volume [l] | 2800 |
| Colour | Grey white |
| Capacity IBC / CP / EP / drum | 8 / 8 / 12 / 32 |
| Number of storage levels | 2 |
| Model (external dimensions W X D X H) | RFP 615.30 (6882 x 1784 x 3594 mm) |
| Weight [kg] | 5370 |
Key Features
- Best option when larger quantities of hazardous materials need to be stored in a separate fire compartment and no safety clearances to avoid exposure to fire on both sides can be maintained.
- For the storage, dispensing or removal of flammable and water-polluting substances.
- Install directly next to the external wall of neighbouring buildings or as a fire-rated separate area (REI 90), e.g. in a production hall. Exception: peroxide stores.
- On request available with variable shelf heights.
- Water law tested, one-piece, hot-dip galvanised 5 mm spill pallet in the lower storage level.
- Storage levels fitted with removable, hot-dip galvanised grids (max. load capacity 1,250 kg/m²).
- Long-lasting corrosion protection with fully-galvanised base material and high-quality 2K paint (RAL 9002, grey-white).
- Fire protection panels with high insulation properties (thickness 100 mm, A class material, non-combustible).
- Lockable, self-closing EI₂ 90-C wing doors on the long side meeting EN 13501-2, tested to EN 1634-1 or country-specific design with a door opening angle of 90 ° / 102 °/ 115 °/ 128 °.
- Accessible-underneath versions are installed on a separately-supplied concrete pad. This means they can easily be loaded with a high-lift truck, for example. For the wide version (RFP 615.20 and.30), the store has two concrete pads of the same size.
- Door variants: long side with EI₂ 90-C door to EN 13501-2, tested to EN 1634-1 or country-specific version. A door sequence controller ensures the doors close reliably. Door opening angle: 90 °, 102 °, 115 °, 128 °. Security lock for protection against unauthorised access.
- Points to consider when storing flammable materials: structural equipotential bonding by earthing the steel frame construction and technical ventilation.
- Accessible-underneath versions are installed on a separately-supplied concrete pad. This ensures easy access and loading using a high lift truck for example. For the wide version, the store is fitted with two concrete pads of the same size.
The structural calculations for the technical room system are based on Eurocode 3 (EN 1993). The loads on the structure are measured according to Eurocode 1 (EN 1991-1-3) for a characteristic wind load qk,w = 0.585 kN/m² and a ground snow load sk = 2.5 kN/m². The structure is also designed for earthquake zone 3 according to EN 4149, EN 1998-1:2004. With additional equipment up to wind load zone 4 with terrain category I (qk,w = 1.064 kN/m²) or up to ground snow load sk = 5.86 kN/m².
The roof drainage counteracts loads from standing water on the roof. The rainwater is directed via the roof profile to the two short sides of the room and is channeled to an outlet either through the right or left corner profile or through both. From there, it can be directed to a drainage system on site, e.g. via a drainage pipe.
- Create equipotential bonding (earthing) (connection point provided); if required provide lightning protection
- Country-specific requirements for air exchange rate
- Specifications in accordance with HSG71
- Specifications in accordance with ATEX Directive 2014/34/EU
- ETA
AccessoriesSpare parts
Door hold-open system for fire-rated store
Item number: 272097W
Finned tube heaters
Item number: 274655W
Air conditioning system
Item number: 274656W
Technical ventilation
Item number: 274846W
Air flow monitor
Item number: 272088W
Fire bulkheads
Item number: 274654W
Extinguishing system
Item number: 274844W
Extinguishing water extraction
Item number: 274845W
Increased statics
Item number: 274847W
Exterior lighting with movement detector
Item number: 274840W
Lockable Infoboard Outdoor
Item number: 272407W
Lighting for hazardous materials store
Item number: 274843W
"Think Green" aerosol extinguishing technology
Item number: 272075W
Basic control system
Item number: 274657W
Comfort control system
Item number: 274658W
SpillGuard® leak recognition system for ATEX Zone 0
Item number: 271433W
£154.00Excl. VAT
DENSORB® - mobile emergency spill kits small in caddy, special version
Item number: 267169W
£430.00Excl. VAT
Prohibition sign No fire, naked flames or smoking, ISO 7010, foil, s-adh, 200 mm, Pack = 10 units
Item number: 164919W
Prohibition sign No unauthorised access, foil, s-adh, 200 mm, Pack = 10 units
Item number: 164924W
Prohibition sign No step, ISO 7010, foil, self-adhesive, 100 mm, Pack = 10 units
Item number: 173662W
Hazard sign Warning of explosive atmosphere, DIN 4844, foil, s-adh, 200 mm, Pack = 10 units
Item number: 164991W
Earthing for VbF storage systems
Item number: 111549W
HVU2 connector cartridge, M16 x 125 mm
Item number: 103510W
Sleeve, Ø: 180, galvanised
Item number: 101936W
Galvanised pipe bend, Ø 125 mm, 45°
Item number: 101964W
PROFILE CYLINDER PZ 88 BL 40-40 GL SCHL G-3776 W.GF-FUNCTION B8812 2041 0009
Item number: 161021W
Galvanised pipe bend, Ø 125 mm, 90°
Item number: 101928W
Galvanised sleeve, Ø: 125 mm
Item number: 101935W
Ex-magnet door holder system, 1450 N
Item number: 146242W
Galvanised stop flap Ø: 125 mm
Item number: 102244W
Centrifugal tube fan RRK 180 EX, 230 V
Item number: 189652W
Outlet connection for technical ventilation, galvanised, Ø: 125mm
Item number: 102206W
Profile cylinder 45 / 45 mm
Item number: 161022W
Touch-up paint RAL 5010, 500 ml
Item number: 168101W
Centrifugal fans for air extraction, Model-VR134N, 0.12kW
Item number: 237193W
Ex wall socket, CEAG, 3 pin, 230 V, 16 A
Item number: 104709W
Retaining magnet door hold-open system, 700N
Item number: 104533W
Keep fire door closed sign
Item number: 105414W
Cladding panel for fire protection panel
Item number: 106813W
Anchor plate for 700 N retaining magnet, adjustable
Item number: 104530W
Anchor plate for 1450 N retaining magnet, adjustable
Item number: 104532W
Temperature controller for thermostats
Item number: 212361W
Image sticker, white, 491 mm x 90 mm
Item number: 201798W
Promat cut-out for fire protection panel 195 x 195 mm
Item number: 242652W
Axial fan HQD 250/4 400V Ex
Item number: 135060W
Damp room base for heat detectors
Item number: 243208W
Door close button
Item number: 104759W
Retaining plate for resistance sensor PT1000-Ex
Item number: 214803W
Temperature sensor for air conditioning, NTC, 10 kOhm
Item number: 236946W
Silicone hose 4 mm x 1.5mm 1000mm
Item number: 161528W
Green signal column element
Item number: 255396W
Ground anchoring, M16 x 190 mm
Item number: 270727W
Orbis IS Ex heat detector
Item number: 212193W
Holding magnet door hold-open system, 1450N
Item number: 104525W
Finned tube radiator, ERB 25, T3, Ex,2 KW
Item number: 105062W
Orbis IS heat detector base
Item number: 187737W
Door control unit
Item number: 145129W
Zener barrier for peat detection system
Item number: 145130W
Finned tube radiator, 2KW
Item number: 105054W
Transport strap - crane transport, removable, galvanised
Item number: 163373W
Base unit for LED signal column
Item number: 255387W
Acoustic element incl. flashing element for LED signal column
Item number: 255391W
Resistance door hold-open system 5.6 K, 0.25 W
Item number: 211224W
Wire resistance thermometer Pt1000 Ex
Item number: 211639W
Signal column holder - LED signal column
Item number: 255392W
Red signal column element for LED signal column
Item number: 255393W
Model BEK fire protection flap, protection class EI90/ EI120, Ø: 125mm, with installation frame
Item number: 101921W
Beam for pallet rack
Item number: 199541W
Assembly set for shelf guard
Item number: 201297W
Shelf guard for pallet rack, 2700 mm
Item number: 201127W
ROKU 1000 fire protection putty
Item number: 245460W
AccessoriesService
Door hold-open system for fire-rated store
Item number: 272097W
Finned tube heaters
Item number: 274655W
Air conditioning system
Item number: 274656W
Technical ventilation
Item number: 274846W
Air flow monitor
Item number: 272088W
Fire bulkheads
Item number: 274654W
Extinguishing system
Item number: 274844W
Extinguishing water extraction
Item number: 274845W
Increased statics
Item number: 274847W
Exterior lighting with movement detector
Item number: 274840W
Lockable Infoboard Outdoor
Item number: 272407W
Lighting for hazardous materials store
Item number: 274843W
"Think Green" aerosol extinguishing technology
Item number: 272075W
Basic control system
Item number: 274657W
Comfort control system
Item number: 274658W
SpillGuard® leak recognition system for ATEX Zone 0
Item number: 271433W
£154.00Excl. VAT
DENSORB® - mobile emergency spill kits small in caddy, special version
Item number: 267169W
£430.00Excl. VAT
Maintenance of ISO/F90 hazardous materials containers
Item number: 213379W
Benefits
- Safe storage of flammable and water-polluting substances
- Long-lasting corrosion protection
- Easy access and loading with high-lift trucks
- Reliable door closing for security
Use Cases
- Production halls
- Next to external walls of buildings
- Storage of hazardous materials
FAQ
Q: What materials can be stored in this container?
A: It is designed for flammable and water-polluting substances.
Q: What is the maximum load capacity?
A: The maximum load capacity is 1250 kg/m².
Q: Can the shelf heights be adjusted?
A: Yes, it is available with variable shelf heights upon request.
