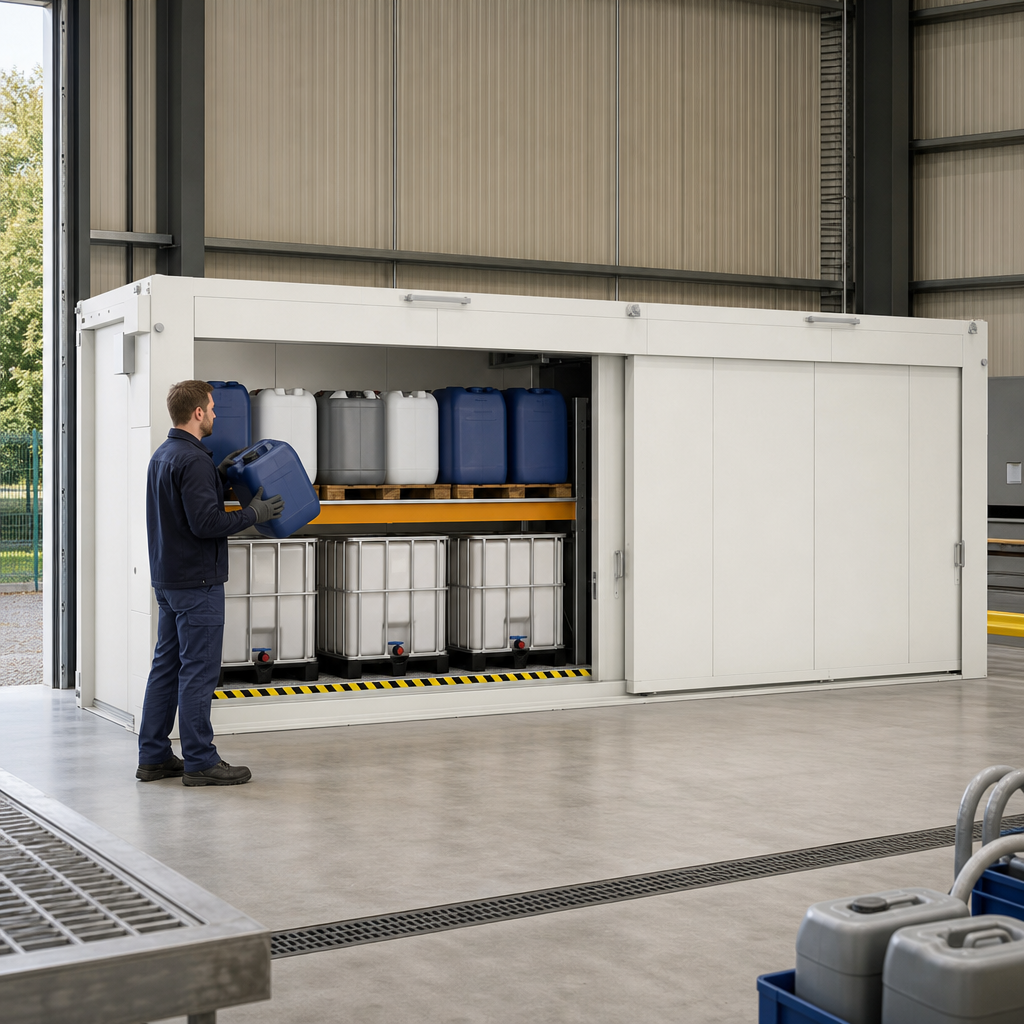

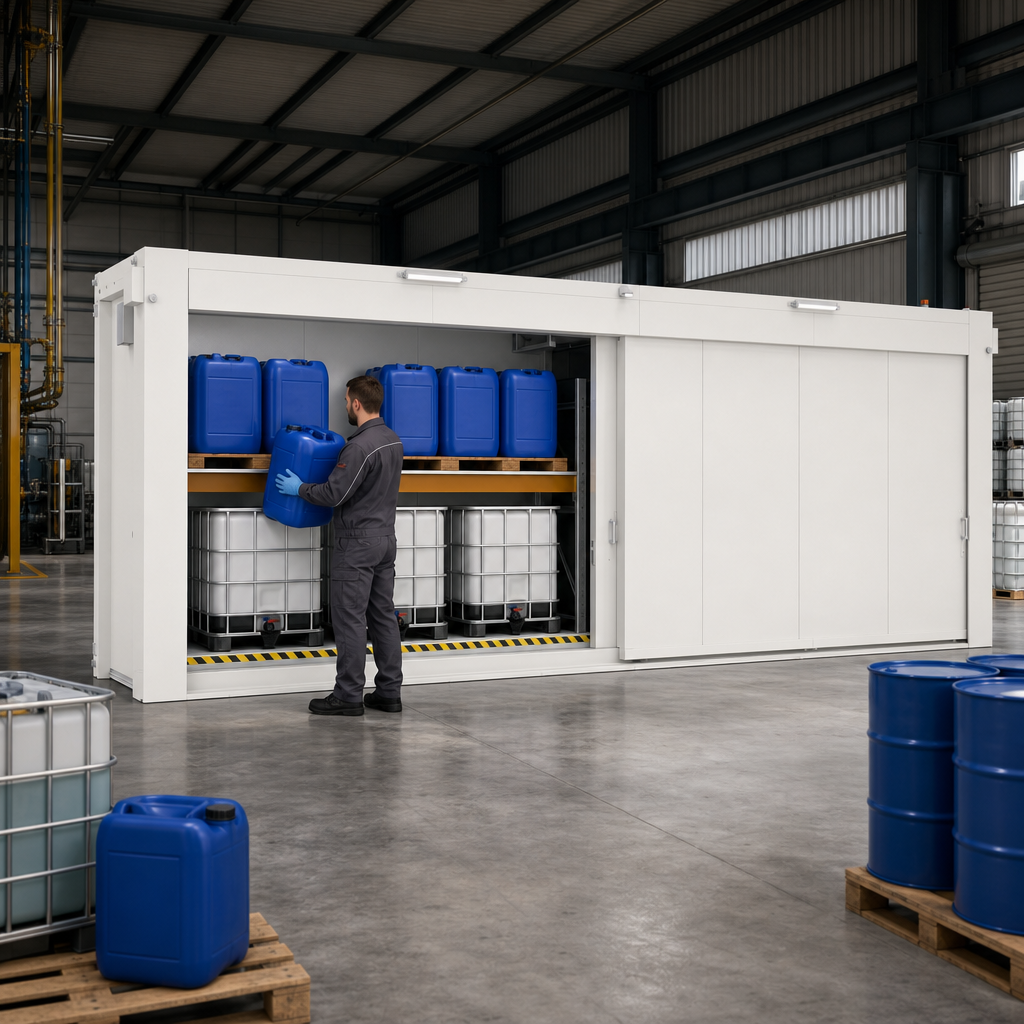

Galvanised Steel Fire-Rated Storage Container with Sliding Doors, 9410 x 2238 x 3594 mm, 2 x 1720 L Containment, for Hazardous Material Storage

• Best option when larger quantities of hazardous materials need to be stored in a separate fire compartment and no clearance is available.
• The larger sliding doors offer up to 50 % more storage capacity.
• An open sliding door gives easier access to the fire-rated storage container with shelving than a wing door and improves logistical efficiency; when installed outdoors, there is no risk of the doors slamming shut unintentionally due to wind loads.
• The manually or electrically operated fire-rated doors, tested according to EN 16034, close automatically when the fire detectors are triggered.
• Install directly next to the external wall of neighbouring buildings or as a fire-rated separate area, e.g. in a production hall. Exception: peroxide stores.
• Base: tested, single-piece spill pallet with easily removable hot-dip galvanised grids.
• Water law tested, two piece, hot dip galvanised 5 mm spill pallet in the lower storage level, with removable grids (max. load capacity: 1,250 kg/m²).
• Long-lasting corrosion protection with fully-galvanised base material and high-quality 2K paint (RAL 9002, grey-white).
• Fire protection panels with high insulation properties (thickness 100 mm, A class material, non-combustible).
• Equipotential bonding with earthing through the steel frame construction.
• Shelf guards on the rear wall.
• Galvanised components with two layers of paint give long lasting corrosion protection, support frame made of hot dip galvanised base material.
• Points to consider when storing flammable materials: equipotential bonding / earthing and technical ventilation.

The shelf heights vary depending on the number of storage levels (SL) and can be adjusted in 50 mm increments.

• 2 SL: 1300 mm shelf height
• 3 SL: 800 mm shelf height
• 4 SL: 550 mm shelf height

The structural calculations for the technical room system are based on Eurocode 3 (EN 1993). The loads on the structure are measured according to Eurocode 1 (EN 1991-1-3) for a characteristic wind load qk,w = 0.585 kN/m² and a ground snow load sk = 2.5 kN/m². The structure is also designed for earthquake zone 3 according to EN 4149, EN 1998-1:2004. With additional equipment up to wind load zone 4 with terrain category I (qk,w = 1.064 kN/m²) or up to ground snow load sk = 5.86 kN/m².

Roof drainage channels rain water to the frame running around the edge and drains it away on the short sides either to the left or the right.

• Create equipotential bonding (earthing) (connection point provided); if required provide lightning protection
• Country-specific requirements for air exchange rate
• Specifications in accordance with HSG71
• Specifications in accordance with ATEX Directive 2014/34/EU
