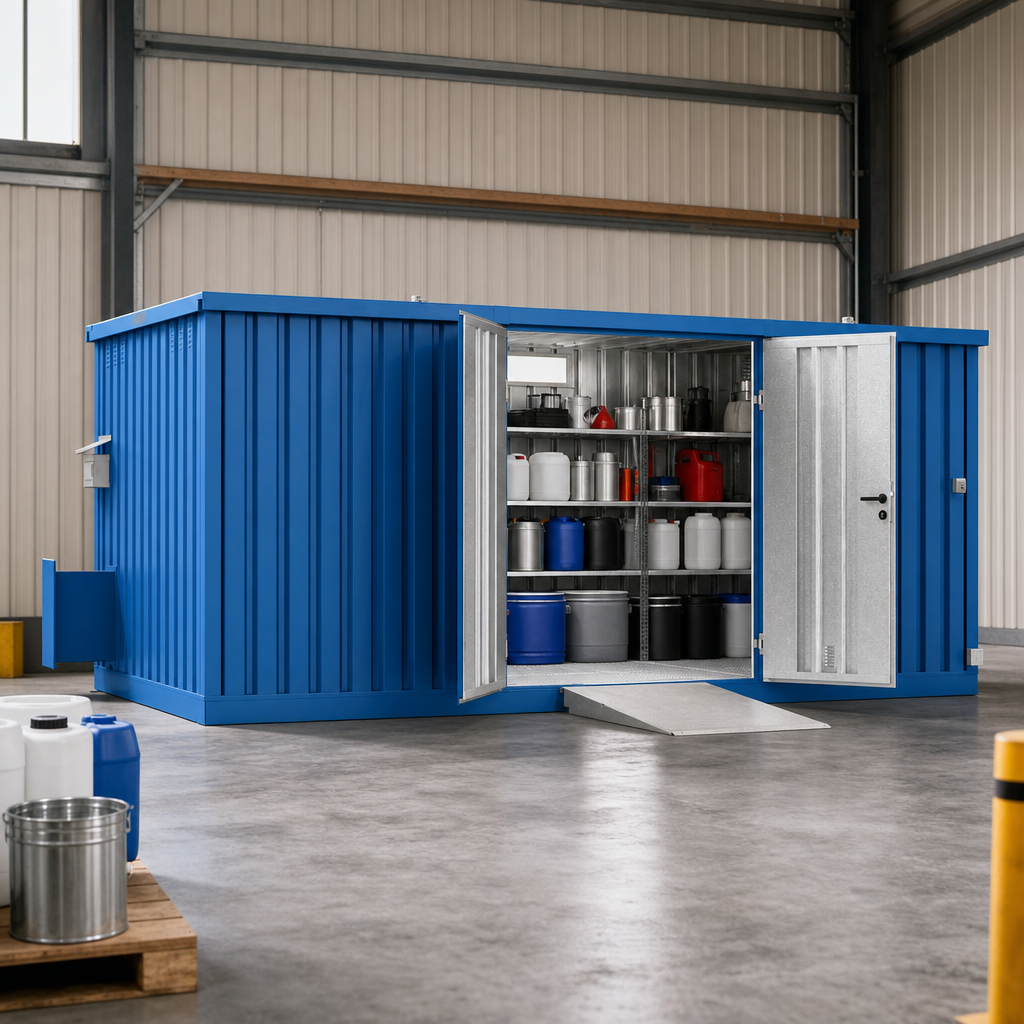

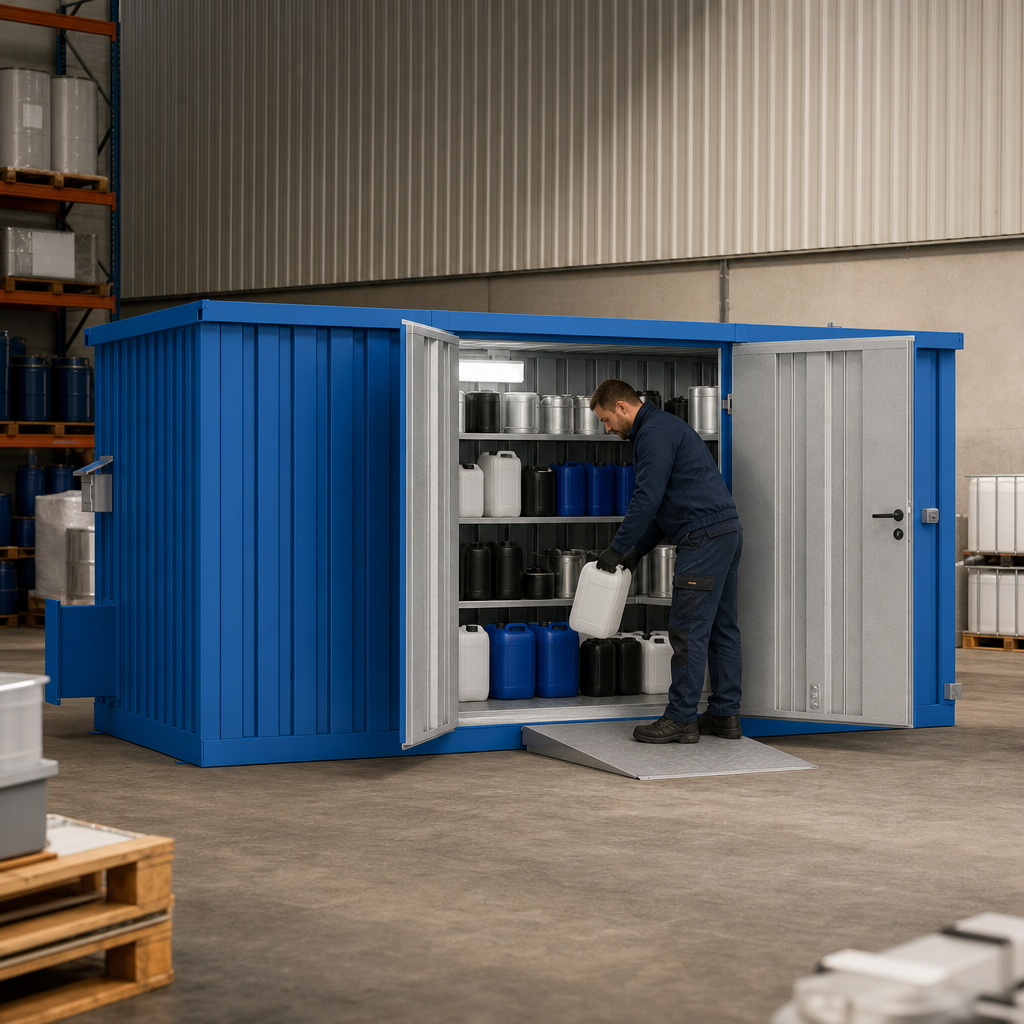

This galvanised hazardous materials storage container is designed for safe storage of water-polluting and flammable substances. Ideal for industrial environments, it features a closed design with a low entry height and a safety lock door.
Specifications
| Technical data | Details |
|---|---|
| Dimensions (without attachments) W x D x H [mm] | 6028 x 2800 x 2235 |
| Internal dimensions W x D x H [mm] | 5830 x 2590 x 2000 |
| Model (external dimensions W X D X H) | WHG 360 (6028 x 2800 x 2235 mm) |
| Storage area [m²] | 15 |
| Containment volume [l] | 2224 |
| Colour | Gentian violet |
| Weight [kg] | 1860 |
| Load capacity [kg/m²] | 1000 |
Key Features
- Approved for the storage of water-polluting and flammable substances
- Closed design with walls and roof made of corrosion-resistant galvanised and painted trapezoidal sheet metal (RAL 5010, gentian blue) - optionally also available without painting
- Water law tested, one piece 5 mm spill pallet with easily removable hot dip galvanised grids (max. load capacity: 1,000 kg/m²)
- Low entry height of 150 mm
- 2-leaf door (with safety lock) on the long side of the room
- Delivered ready assembled.
- Crane eyes as standard for safe transport to the installation site
- Natural ventilation available on request
The structural calculations for the technical room system are based on Eurocode 3 (EN 1993). The loads on the structure are measured according to Eurocode 1 (EN 1991-1-3) for a characteristic wind load qk,w = 0.585 kN/m² and a ground snow load sk = 2.5 kN/m². The structure is also designed for earthquake zone 3 according to EN 4149, EN 1998-1:2004.
- Observe distance from fire loads (mostly min. 10 m)
- Create equipotential bonding (earthing) (connection point provided); if required provide lightning protection
- Country-specific requirements for air exchange rate
- Specifications in accordance with HSG71
- Specifications in accordance with ATEX Directive 2014/34/EU
-
DIBt
Benefits
- Safe storage for hazardous materials
- Easy access with low entry height
- High load capacity for various materials
- Durable and corrosion-resistant construction
- Ready for immediate use upon delivery
Use Cases
- Storage of flammable liquids
- Industrial hazardous material containment
- Chemical storage facilities
- Workshops and factories handling hazardous substances
FAQ
Q: What materials can be stored in this container?
A: It is approved for water-polluting and flammable substances.
Q: Is the container ready to use upon delivery?
A: Yes, it is delivered ready assembled.
Q: Can the container be transported easily?
A: Yes, it includes crane eyes for safe transport.
