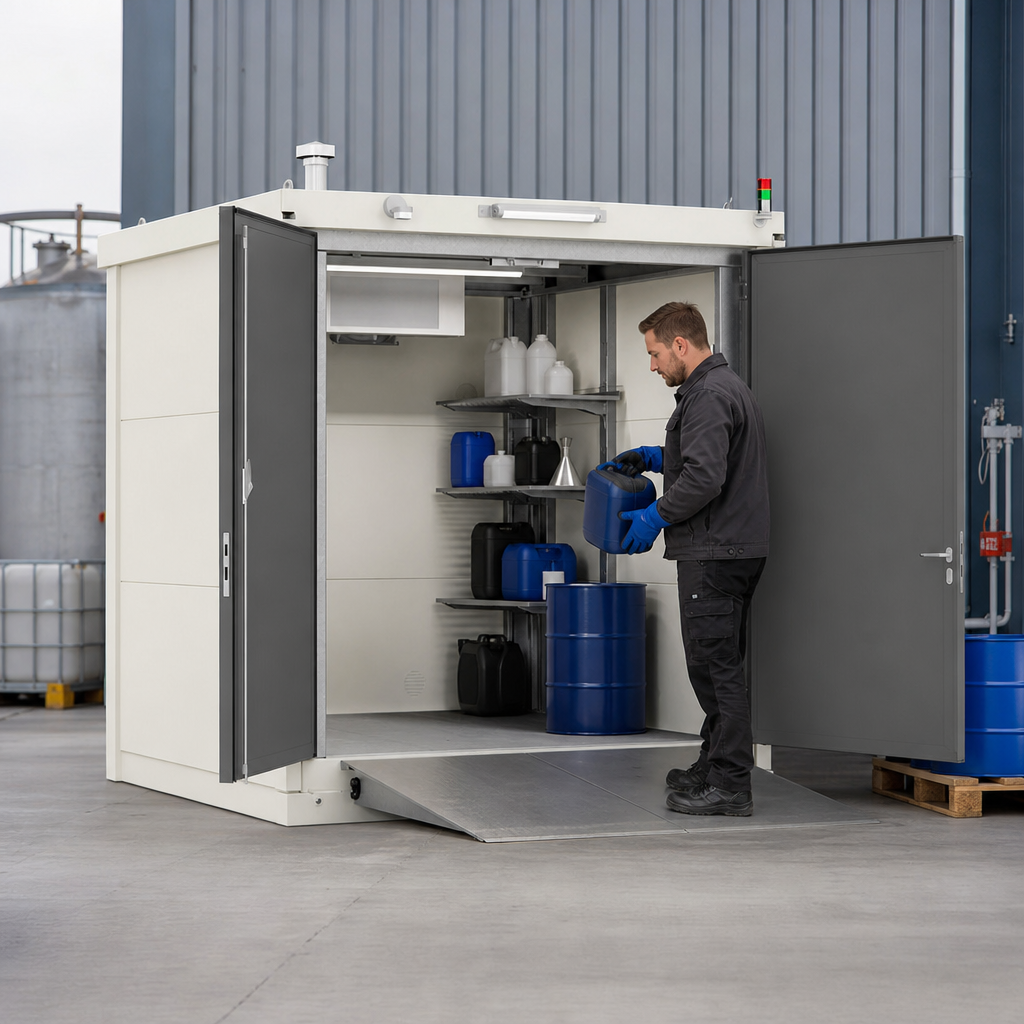

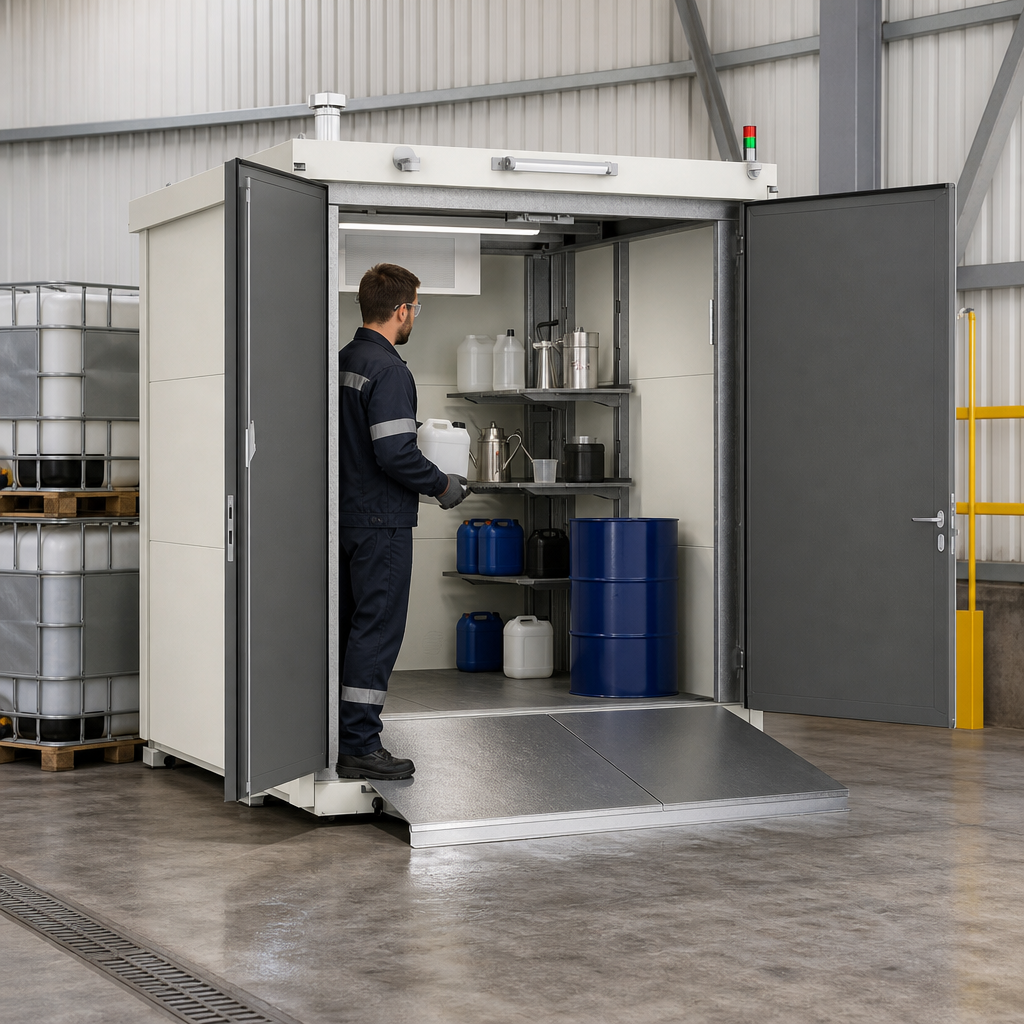

This insulated hazardous material storage container is designed for safe and compliant storage of flammable, toxic, and oxidising materials. Ideal for both indoor and outdoor use.
Specifications
| Technical data | Details |
|---|---|
| Dimensions (without attachments) W x D x H [mm] | 2804 x 2742 x 2780 |
| Internal dimensions W x D x H [mm] | 2500 x 2500 x 2510 |
| Model (external dimensions W X D X H) | WHS 7 (2804 x 2742 x 2780 mm) |
| Storage area [m²] | 6.3 |
| Door version | Hinged door |
| Door design | 2 wing doors |
| Containment volume [l] | 870 |
| Colour | Grey white |
| Weight [kg] | 1247 |
| Load capacity [kg/m²] | 1000 |
| Installation location | Indoors and outdoors |
Key Features
- Safe and legally compliant storage of substances hazardous to water (WGK 1-3) as well as flammable, toxic and oxidising media
- Water law, general building authority approval
- Roof and side walls made of cladding with non-combustible insulating panels (mineral fibre boards of building material class A in accordance with EN 13501-1), clad on both sides with coated steel cover sheeting
- Double-leaf insulated and lockable door (active leaf on the right) made of galvanised sheet metal cassettes with DIN 18252 / EN 1303 profile cylinder to ensure access restriction in accordance with §8 GefStoffV
- High quality 2 layer external paint
- Corrosivity class C3-M according to DIN EN 12944, part 1
- Integrated spill pallet made of hot-dip galvanised steel (S235JR) in accordance with DIN EN 10025
- Installation directly on the on-site foundation without additional substructure
- Spill pallet sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Convenient access thanks to low door threshold of 147 mm
- Storage surfaces with hot dip galvanised, removable grid shelves
- Prepared for the connection of potential equalisation on the customer side
The structural calculations for the technical room system are based on Eurocode 3 (EN 1993). The loads on the structure are measured according to Eurocode 1 (EN 1991-1-3) for a characteristic wind load qk,w = 0.585 kN/m² and a ground snow load sk = 2.5 kN/m². The structure is also designed for earthquake zone 3 according to EN 4149, EN 1998-1:2004.
- Observe distance from fire loads (mostly min. 10 m)
- Create equipotential bonding (earthing) (connection point provided); if required provide lightning protection
- Country-specific requirements for air exchange rate
- Specifications in accordance with HSG71
- Specifications in accordance with ATEX Directive 2014/34/EU
- DIBt
Benefits
- Ensures safe storage of hazardous materials
- Complies with legal regulations
- Durable and weather-resistant construction
- Convenient access with low door threshold
- Easy to install directly on-site
Use Cases
- Storage of flammable liquids
- Storage of toxic substances
- Hazardous materials management in industrial settings
FAQ
Q: What is the containment volume of the container?
A: The containment volume is 870 litres.
Q: Can this container be used outdoors?
A: Yes, it is suitable for both indoor and outdoor use.
Q: What materials can be stored in this container?
A: It is designed for flammable, toxic, and oxidising substances.
This insulated hazardous material storage container is designed for safe and compliant storage of flammable, toxic, and oxidising materials. Ideal for both indoor and outdoor use.
Specifications
| Technical data | Details |
|---|---|
| Dimensions (without attachments) W x D x H [mm] | 2804 x 2742 x 2780 |
| Internal dimensions W x D x H [mm] | 2500 x 2500 x 2510 |
| Model (external dimensions W X D X H) | WHS 7 (2804 x 2742 x 2780 mm) |
| Storage area [m²] | 6.3 |
| Door version | Hinged door |
| Door design | 2 wing doors |
| Containment volume [l] | 870 |
| Colour | Grey white |
| Weight [kg] | 1247 |
| Load capacity [kg/m²] | 1000 |
| Installation location | Indoors and outdoors |
Key Features
- Safe and legally compliant storage of substances hazardous to water (WGK 1-3) as well as flammable, toxic and oxidising media
- Water law, general building authority approval
- Roof and side walls made of cladding with non-combustible insulating panels (mineral fibre boards of building material class A in accordance with EN 13501-1), clad on both sides with coated steel cover sheeting
- Double-leaf insulated and lockable door (active leaf on the right) made of galvanised sheet metal cassettes with DIN 18252 / EN 1303 profile cylinder to ensure access restriction in accordance with §8 GefStoffV
- High quality 2 layer external paint
- Corrosivity class C3-M according to DIN EN 12944, part 1
- Integrated spill pallet made of hot-dip galvanised steel (S235JR) in accordance with DIN EN 10025
- Installation directly on the on-site foundation without additional substructure
- Spill pallet sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Convenient access thanks to low door threshold of 147 mm
- Storage surfaces with hot dip galvanised, removable grid shelves
- Prepared for the connection of potential equalisation on the customer side
The structural calculations for the technical room system are based on Eurocode 3 (EN 1993). The loads on the structure are measured according to Eurocode 1 (EN 1991-1-3) for a characteristic wind load qk,w = 0.585 kN/m² and a ground snow load sk = 2.5 kN/m². The structure is also designed for earthquake zone 3 according to EN 4149, EN 1998-1:2004.
- Observe distance from fire loads (mostly min. 10 m)
- Create equipotential bonding (earthing) (connection point provided); if required provide lightning protection
- Country-specific requirements for air exchange rate
- Specifications in accordance with HSG71
- Specifications in accordance with ATEX Directive 2014/34/EU
- DIBt
Benefits
- Ensures safe storage of hazardous materials
- Complies with legal regulations
- Durable and weather-resistant construction
- Convenient access with low door threshold
- Easy to install directly on-site
Use Cases
- Storage of flammable liquids
- Storage of toxic substances
- Hazardous materials management in industrial settings
FAQ
Q: What is the containment volume of the container?
A: The containment volume is 870 litres.
Q: Can this container be used outdoors?
A: Yes, it is suitable for both indoor and outdoor use.
Q: What materials can be stored in this container?
A: It is designed for flammable, toxic, and oxidising substances.
