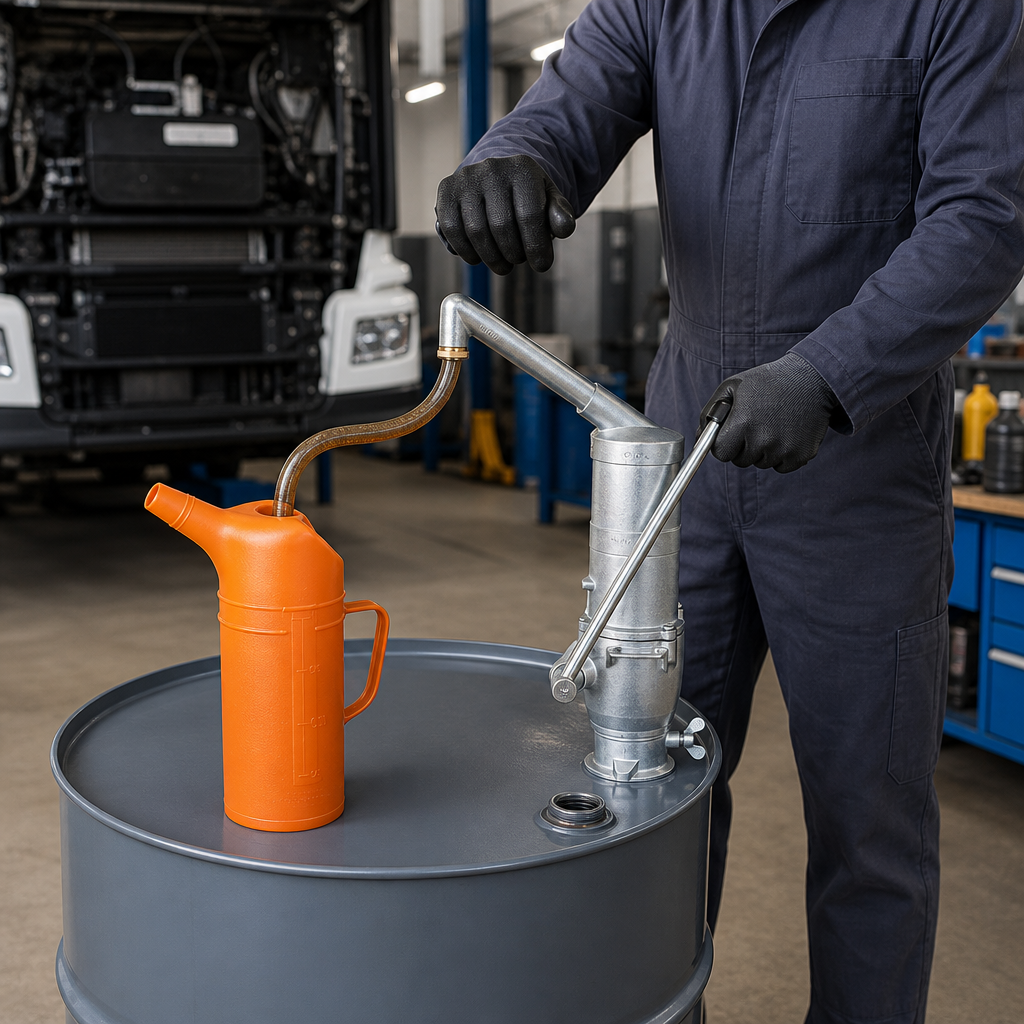

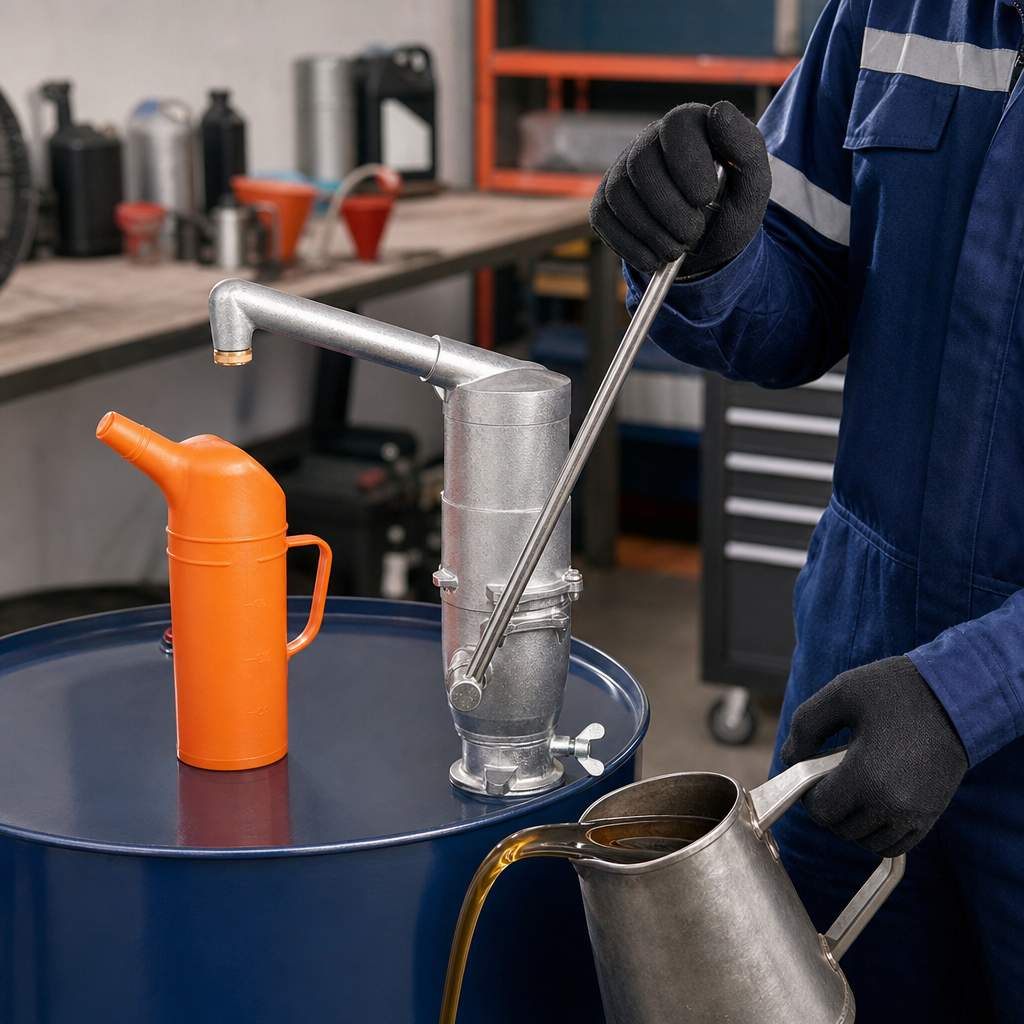

This manual drum pump is designed for pumping engine, hydraulic, and gear oils. Made from corrosion-free die-cast zinc alloy, it features an adjustable drum thread.
Specifications
| Technical data | Details |
|---|---|
| Application | Mineral and hydraulic oils |
| Immersion depth [mm] | 840 |
| Diameter, immersion tube [mm] | 20 |
| Pump type | Drum pump |
| Length, external [mm] | 130 |
| Height, external [mm] | 420 |
| Material | Die-cast zinc alloy |
| Delivery per stroke [l] | 0.25 |
| Max. delivery volume [l/min] | 25 |
| Suitable for | Supply container with 1/2" connection |
| Drive | Manual |
| Internal thread | 2" |
| External thread | 2" |
| Seal material | Nbr |
| Weight [kg] | 5,5 |
Key Features
- For pumping engine, hydraulic and gear oils
- In corrosion-free die cast zinc
- Adjustable drum thread for 2” drum threads
- With drip-proof outlet
- Locking device for padlock
Benefits
- Durable and long-lasting material
- Safe and secure operation with locking device
- Efficient pumping with high delivery volume
- Versatile for various oil types
Use Cases
- Engine oils
- Hydraulic oils
- Gear oils
FAQ
Q: What types of oils can this pump be used for?
A: This pump is suitable for engine, hydraulic, and gear oils.
Q: What is the maximum delivery volume of the pump?
A: The maximum delivery volume is 25 liters per minute.
Q: Is the pump suitable for 2” drum threads?
A: Yes, it features an adjustable drum thread for 2” drum threads.
