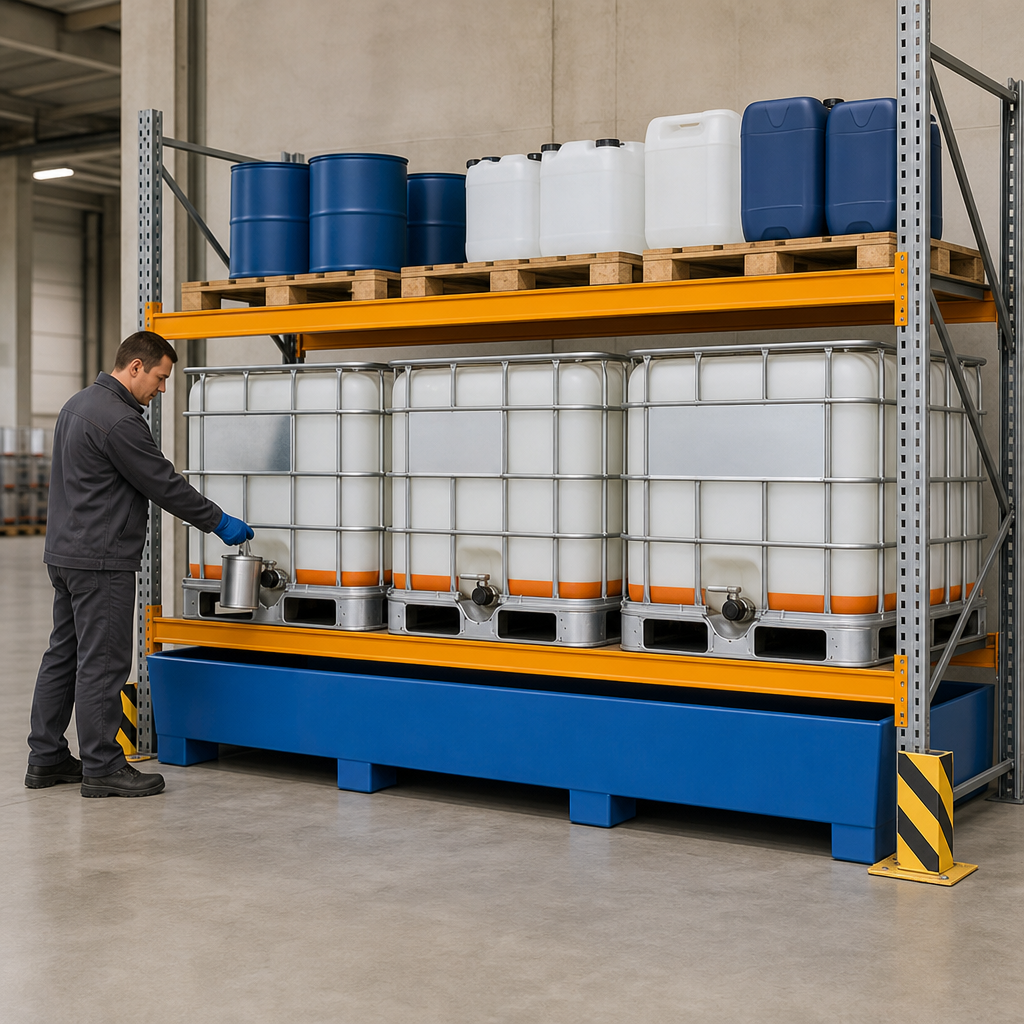

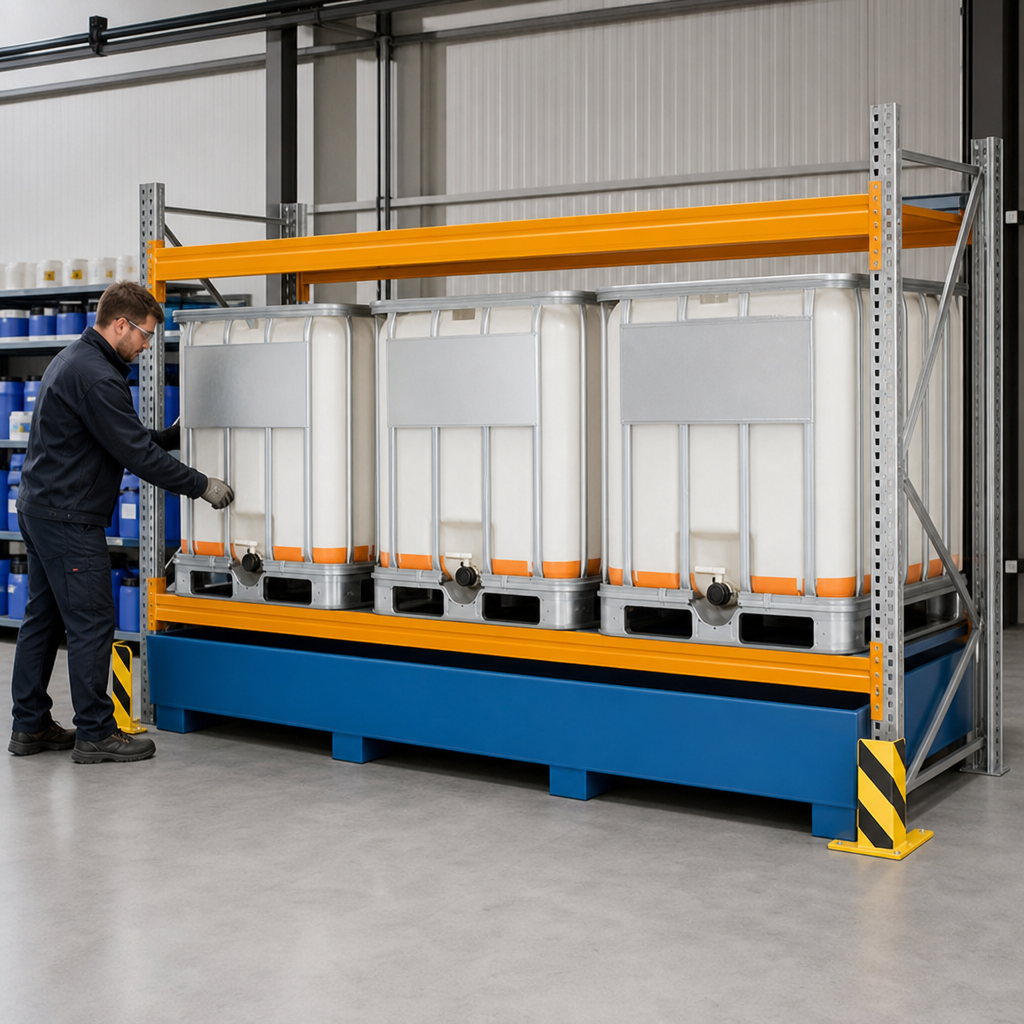

This painted steel spill tray is designed for placement under pallet racks. Ideal for storing hazardous materials, it offers robust protection and compliance.
Specifications
| Technical data | Details |
|---|---|
| Mobility | Floor level rack spill pallet |
| For shelves with bay width [mm] | 3300 |
| Material | Steel |
| Width, external [mm] | 3280 |
| Length, external [mm] | 1300 |
| Height, external [mm] | 420 |
| Overall load capacity [kg] | 6000 |
| Containment volume [l] | 1200 |
| Grid | without |
| Surface | painted |
| Weight [kg] | 174 |
Key Features
- With declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- Welded steel design
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Approved for storing flammable liquids (H224-226) and all substances in all water-polluting classes
- For existing shelving systems, which are to be used as a hazardous materials store and converted to be legally compliant
- Base spill pallet for setting under existing pallet racks
- 100 mm clearance between base and floor for handling and loading with forklift trucks
- Acid-resistant spill pallet insert in polyethylene (PE) available as an option
- Painted for optimum corrosion protection
Benefits
- Optimal corrosion protection
- Easy handling with forklift trucks
- Compliant with hazardous materials regulations
- Safe storage for flammable substances
Use Cases
- Under pallet racks
- Hazardous materials storage
- Storing flammable liquids
FAQ
Q: What is the load capacity of the spill tray?
A: The spill tray has a load capacity of 6000 kg.
Q: What materials can be stored in this spill tray?
A: It is approved for storing flammable liquids and substances in all water-polluting classes.
Q: Is an insert available for this spill tray?
A: Yes, an acid-resistant spill pallet insert in polyethylene (PE) is available as an option.
This painted steel spill tray is designed for placement under pallet racks. Ideal for storing hazardous materials, it offers robust protection and compliance.
Specifications
| Technical data | Details |
|---|---|
| Mobility | Floor level rack spill pallet |
| For shelves with bay width [mm] | 3300 |
| Material | Steel |
| Width, external [mm] | 3280 |
| Length, external [mm] | 1300 |
| Height, external [mm] | 420 |
| Overall load capacity [kg] | 6000 |
| Containment volume [l] | 1200 |
| Grid | without |
| Surface | painted |
| Weight [kg] | 174 |
Key Features
- With declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- Welded steel design
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Approved for storing flammable liquids (H224-226) and all substances in all water-polluting classes
- For existing shelving systems, which are to be used as a hazardous materials store and converted to be legally compliant
- Base spill pallet for setting under existing pallet racks
- 100 mm clearance between base and floor for handling and loading with forklift trucks
- Acid-resistant spill pallet insert in polyethylene (PE) available as an option
- Painted for optimum corrosion protection
Benefits
- Optimal corrosion protection
- Easy handling with forklift trucks
- Compliant with hazardous materials regulations
- Safe storage for flammable substances
Use Cases
- Under pallet racks
- Hazardous materials storage
- Storing flammable liquids
FAQ
Q: What is the load capacity of the spill tray?
A: The spill tray has a load capacity of 6000 kg.
Q: What materials can be stored in this spill tray?
A: It is approved for storing flammable liquids and substances in all water-polluting classes.
Q: Is an insert available for this spill tray?
A: Yes, an acid-resistant spill pallet insert in polyethylene (PE) is available as an option.
