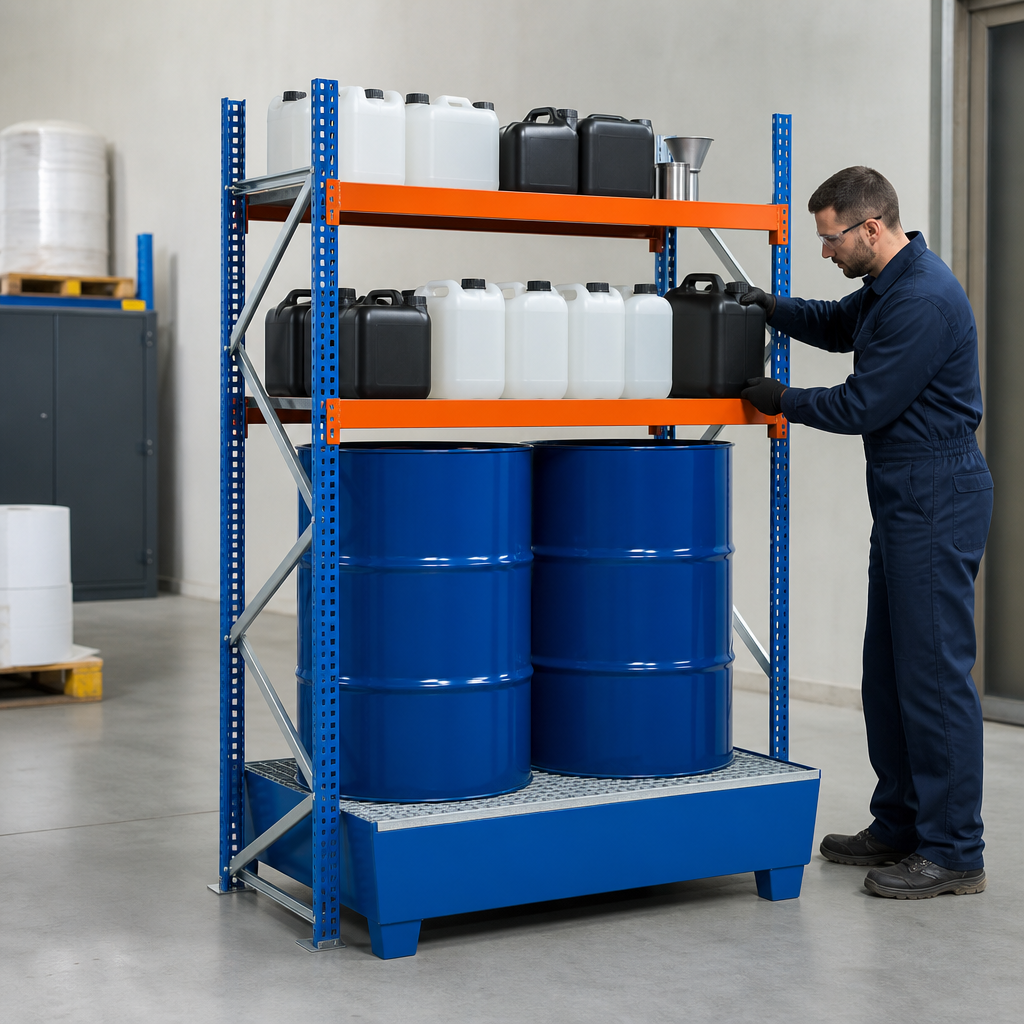

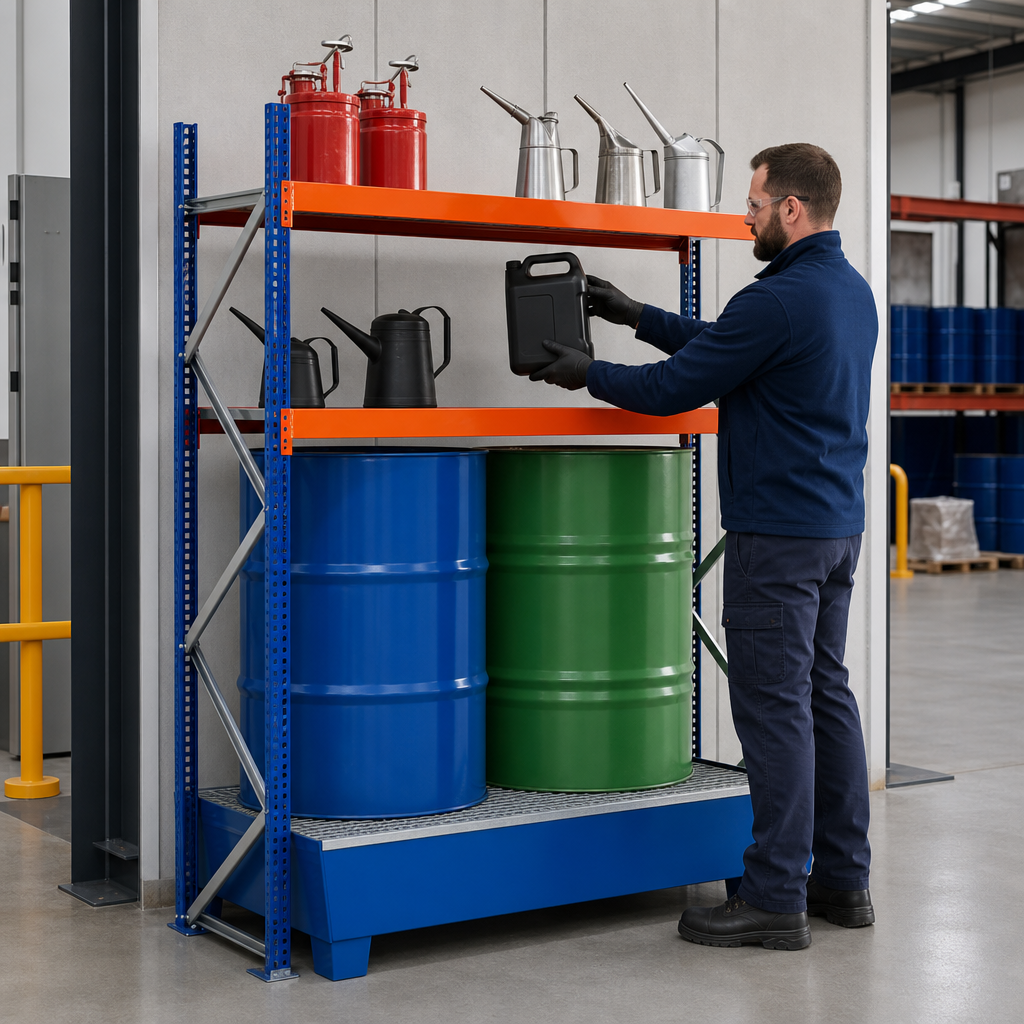

This extension unit is designed for secure storage of flammable liquids, accommodating small containers and drums up to 205 litres. It features a painted spill tray and adjustable shelving for versatile use.
Specifications
| Technical data | Details |
|---|---|
| Rack type | Extension shelf |
| Clear bay width [mm] | 1300 |
| Clear bay depth [mm] | 600 |
| Number of storage levels | 3 |
| Spill pallet material | Steel |
| Spill pallet surface | painted |
| Equipment - lower shelf | 1 x spill pallet, painted |
| Containment volume [l] | 1 x 235 |
| Width, external [mm] | 1307 |
| Length, external [mm] | 816 |
| Height, external [mm] | 2000 |
| Bay load [kg] | 1614 |
| Shelf load [kg] | 538 |
| Storage capacity | 205 litre drums: 2 |
| Additional storage capacity | Small container |
| Weight [kg] | 123 |
| Application | environmentally damaging / water-hazardous Flammable |
Key Features
- Spill pallet with declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- For storing flammable liquids
- Secure storage of small containers and drums up to 205 litres
- Shelf frames are powder coated, blue (similar to RAL 5019), cross members are orange (similar to RAL 2004), grid mesh is galvanised
- Especially stable with mesh struts in the shelf frames
- Galvanised grid shelves for storage. The bottom storage shelf has a spill pallet
- Shelving height can be adjusted in 25 mm increments
- 100 mm ground clearance for transport with a forklift and to avoid corrosion
- Can be expanded at any time
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Delivered flat packed with instructions for easy self assembly
- Integrated blue painted spill pallet in steel, with grid and forklift pockets
- Extension shelf, can be extended with base and extension shelves
Benefits
- Safe storage of flammable liquids
- Stable structure with mesh struts
- Easy to transport with forklift
- Versatile storage options for different container sizes
Use Cases
- Storing flammable liquids
- Accommodating small containers and drums
- Industrial and warehouse applications
FAQ
Q: What is the maximum load capacity of the shelf?
A: The shelf load capacity is 538 kg.
Q: Can this rack be expanded?
A: Yes, it can be extended with base and extension shelves.
Q: What is the containment volume of the spill pallet?
A: The spill pallet has a containment volume of 235 litres.
This extension unit is designed for secure storage of flammable liquids, accommodating small containers and drums up to 205 litres. It features a painted spill tray and adjustable shelving for versatile use.
Specifications
| Technical data | Details |
|---|---|
| Rack type | Extension shelf |
| Clear bay width [mm] | 1300 |
| Clear bay depth [mm] | 600 |
| Number of storage levels | 3 |
| Spill pallet material | Steel |
| Spill pallet surface | painted |
| Equipment - lower shelf | 1 x spill pallet, painted |
| Containment volume [l] | 1 x 235 |
| Width, external [mm] | 1307 |
| Length, external [mm] | 816 |
| Height, external [mm] | 2000 |
| Bay load [kg] | 1614 |
| Shelf load [kg] | 538 |
| Storage capacity | 205 litre drums: 2 |
| Additional storage capacity | Small container |
| Weight [kg] | 123 |
| Application | environmentally damaging / water-hazardous Flammable |
Key Features
- Spill pallet with declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- For storing flammable liquids
- Secure storage of small containers and drums up to 205 litres
- Shelf frames are powder coated, blue (similar to RAL 5019), cross members are orange (similar to RAL 2004), grid mesh is galvanised
- Especially stable with mesh struts in the shelf frames
- Galvanised grid shelves for storage. The bottom storage shelf has a spill pallet
- Shelving height can be adjusted in 25 mm increments
- 100 mm ground clearance for transport with a forklift and to avoid corrosion
- Can be expanded at any time
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Delivered flat packed with instructions for easy self assembly
- Integrated blue painted spill pallet in steel, with grid and forklift pockets
- Extension shelf, can be extended with base and extension shelves
Benefits
- Safe storage of flammable liquids
- Stable structure with mesh struts
- Easy to transport with forklift
- Versatile storage options for different container sizes
Use Cases
- Storing flammable liquids
- Accommodating small containers and drums
- Industrial and warehouse applications
FAQ
Q: What is the maximum load capacity of the shelf?
A: The shelf load capacity is 538 kg.
Q: Can this rack be expanded?
A: Yes, it can be extended with base and extension shelves.
Q: What is the containment volume of the spill pallet?
A: The spill pallet has a containment volume of 235 litres.
