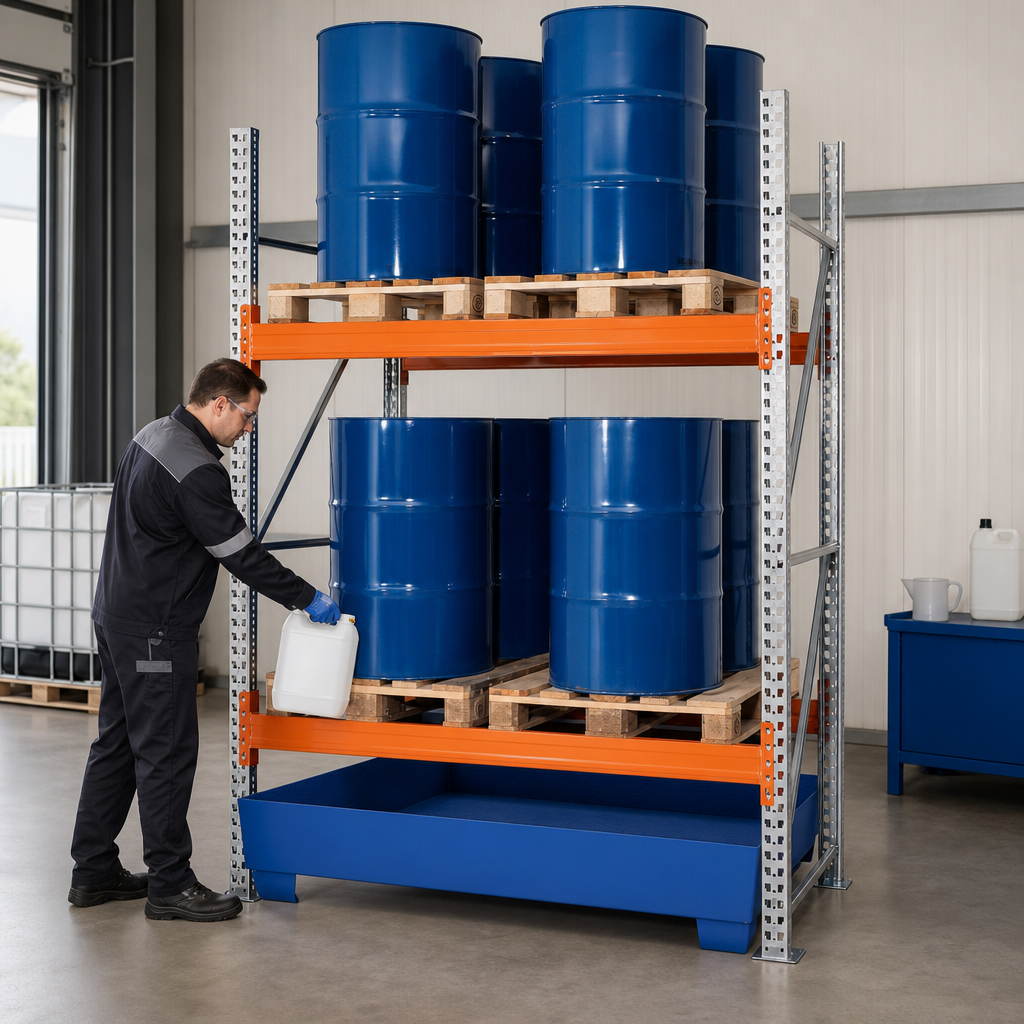

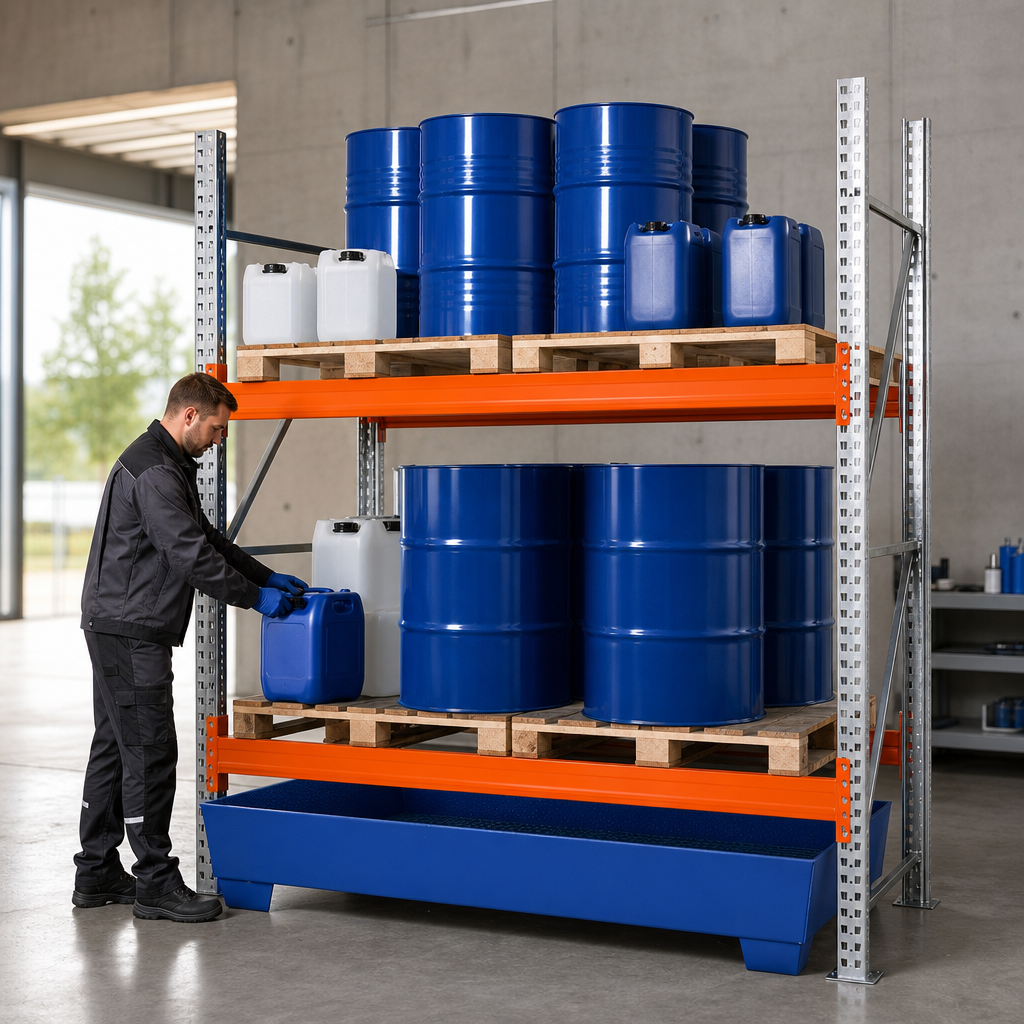

This steel spill pallet rack features two adjustable storage levels for safe storage of flammable liquids and water-polluting substances. Ideal for industrial use.
Specifications
| Technical data | Details |
|---|---|
| Rack type | Basic shelf |
| Spill pallet material | Steel |
| Spill pallet surface | painted |
| Number of storage levels | 2 |
| Clear bay width [mm] | 1825 |
| Clear bay depth [mm] | 1100 |
| Width, external [mm] | 2025 |
| Length, external [mm] | 1300 |
| Height, external [mm] | 2700 |
| Bay load [kg] | 4400 |
| Shelf load [kg] | 2200 |
| Containment volume [l] | 1 x 530 |
| Storage capacity | Euro pallet(s): 4 |
| Storage capacity alternative | Chemical pallet(s): 2 |
| Weight [kg] | 208 |
Key Features
- Spill pallet with declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- For storing flammable liquids and all categories of water-polluting substances
- Shelving frame galvanised, cross members powder coated red-orange (RAL 2001)
- Adjustable shelf height through hole distance of 50 mm
- Shelf guard on every storage level
- Steel spill pallet
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- 100 mm ground clearance to avoid corrosion
- Can be expanded at any time
- Delivered flat-pack, with instructions for assembly
- Basic shelf, individually expandable with extension shelf units
- Designed for storing drums on 4 Euro or 2 chemical pallets
Benefits
- Safe storage of hazardous materials
- Corrosion-resistant design
- Customizable storage height
- Easy to assemble
- Compliant with safety regulations
Use Cases
- Storing flammable liquids
- Storing water-polluting substances
- Industrial and warehouse applications
FAQ
Q: What is the maximum load capacity?
A: The bay load capacity is 4400 kg and the shelf load capacity is 2200 kg.
Q: Can the shelf height be adjusted?
A: Yes, the shelf height can be adjusted with a hole distance of 50 mm.
Q: Is the pallet rack compliant with safety regulations?
A: Yes, it has a declaration of compliance (ÜHP) valid across Germany.
This steel spill pallet rack features two adjustable storage levels for safe storage of flammable liquids and water-polluting substances. Ideal for industrial use.
Specifications
| Technical data | Details |
|---|---|
| Rack type | Basic shelf |
| Spill pallet material | Steel |
| Spill pallet surface | painted |
| Number of storage levels | 2 |
| Clear bay width [mm] | 1825 |
| Clear bay depth [mm] | 1100 |
| Width, external [mm] | 2025 |
| Length, external [mm] | 1300 |
| Height, external [mm] | 2700 |
| Bay load [kg] | 4400 |
| Shelf load [kg] | 2200 |
| Containment volume [l] | 1 x 530 |
| Storage capacity | Euro pallet(s): 4 |
| Storage capacity alternative | Chemical pallet(s): 2 |
| Weight [kg] | 208 |
Key Features
- Spill pallet with declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- For storing flammable liquids and all categories of water-polluting substances
- Shelving frame galvanised, cross members powder coated red-orange (RAL 2001)
- Adjustable shelf height through hole distance of 50 mm
- Shelf guard on every storage level
- Steel spill pallet
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- 100 mm ground clearance to avoid corrosion
- Can be expanded at any time
- Delivered flat-pack, with instructions for assembly
- Basic shelf, individually expandable with extension shelf units
- Designed for storing drums on 4 Euro or 2 chemical pallets
Benefits
- Safe storage of hazardous materials
- Corrosion-resistant design
- Customizable storage height
- Easy to assemble
- Compliant with safety regulations
Use Cases
- Storing flammable liquids
- Storing water-polluting substances
- Industrial and warehouse applications
FAQ
Q: What is the maximum load capacity?
A: The bay load capacity is 4400 kg and the shelf load capacity is 2200 kg.
Q: Can the shelf height be adjusted?
A: Yes, the shelf height can be adjusted with a hole distance of 50 mm.
Q: Is the pallet rack compliant with safety regulations?
A: Yes, it has a declaration of compliance (ÜHP) valid across Germany.
