Short Description:

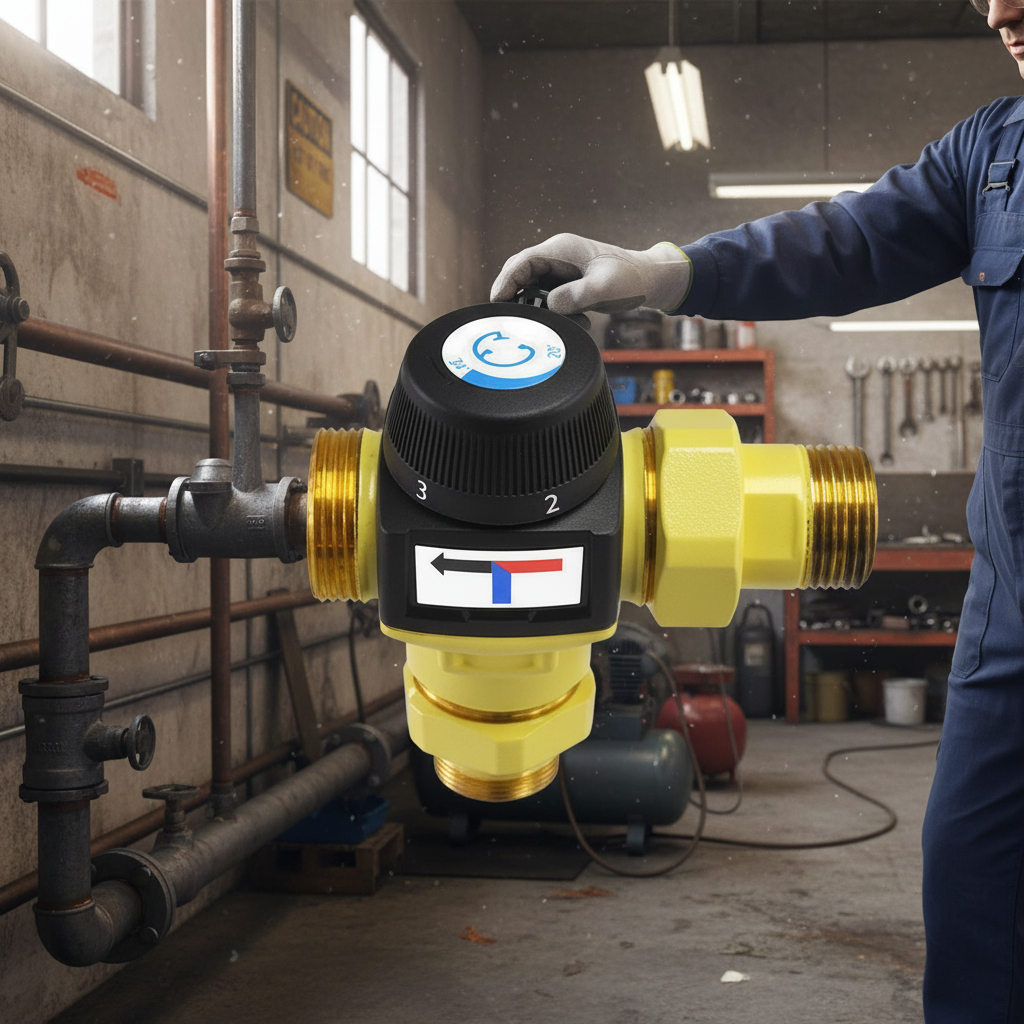

This thermostatic safety valve is designed for mixing hot and cold water to provide tepid water. It is commonly used in industrial settings to ensure safe water temperatures.
Features:
- Adjustable temperature range from 20°C to 43°C
- Minimum flow rate of 122lpm at 2 bar
- By-pass system for cold water supply failure
- Shuts off hot water supply to prevent scalding if cold water fails
Specifications
- Connection: 1½? Male with optional kit including two 1? male adapters with check valves on the inlets.
- Water inlet pressure (hot & cold): Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar.
- Hot water supply temperature: Optimum 50-70°C (Maximum 100°C)
- Cold water supply temperature: 5-10°C (Maximum 23°C)
- Fully closed temperature: 35°C
Benefits:
- Ensures safe water temperatures to prevent scalding
- Reliable operation even during supply failures
- Easy installation with adaptable connections
Use Cases:
- Industrial water supply systems
- Healthcare facilities
- Laboratories requiring controlled water temperatures
FAQ:
Q: What is the recommended water inlet pressure?
A: The recommended water inlet pressure is 2 bar, with a maximum of 8 bar.
Q: What temperatures can this valve handle?
A: It can handle hot water temperatures of up to 100°C and cold water temperatures of up to 23°C.
Short Description:
This thermostatic safety valve is designed for mixing hot and cold water to provide tepid water. It is commonly used in industrial settings to ensure safe water temperatures.
Features:
- Adjustable temperature range from 20°C to 43°C
- Minimum flow rate of 122lpm at 2 bar
- By-pass system for cold water supply failure
- Shuts off hot water supply to prevent scalding if cold water fails
Specifications
- Connection: 1½? Male with optional kit including two 1? male adapters with check valves on the inlets.
- Water inlet pressure (hot & cold): Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar.
- Hot water supply temperature: Optimum 50-70°C (Maximum 100°C)
- Cold water supply temperature: 5-10°C (Maximum 23°C)
- Fully closed temperature: 35°C
Benefits:
- Ensures safe water temperatures to prevent scalding
- Reliable operation even during supply failures
- Easy installation with adaptable connections
Use Cases:
- Industrial water supply systems
- Healthcare facilities
- Laboratories requiring controlled water temperatures
FAQ:
Q: What is the recommended water inlet pressure?
A: The recommended water inlet pressure is 2 bar, with a maximum of 8 bar.
Q: What temperatures can this valve handle?
A: It can handle hot water temperatures of up to 100°C and cold water temperatures of up to 23°C.
