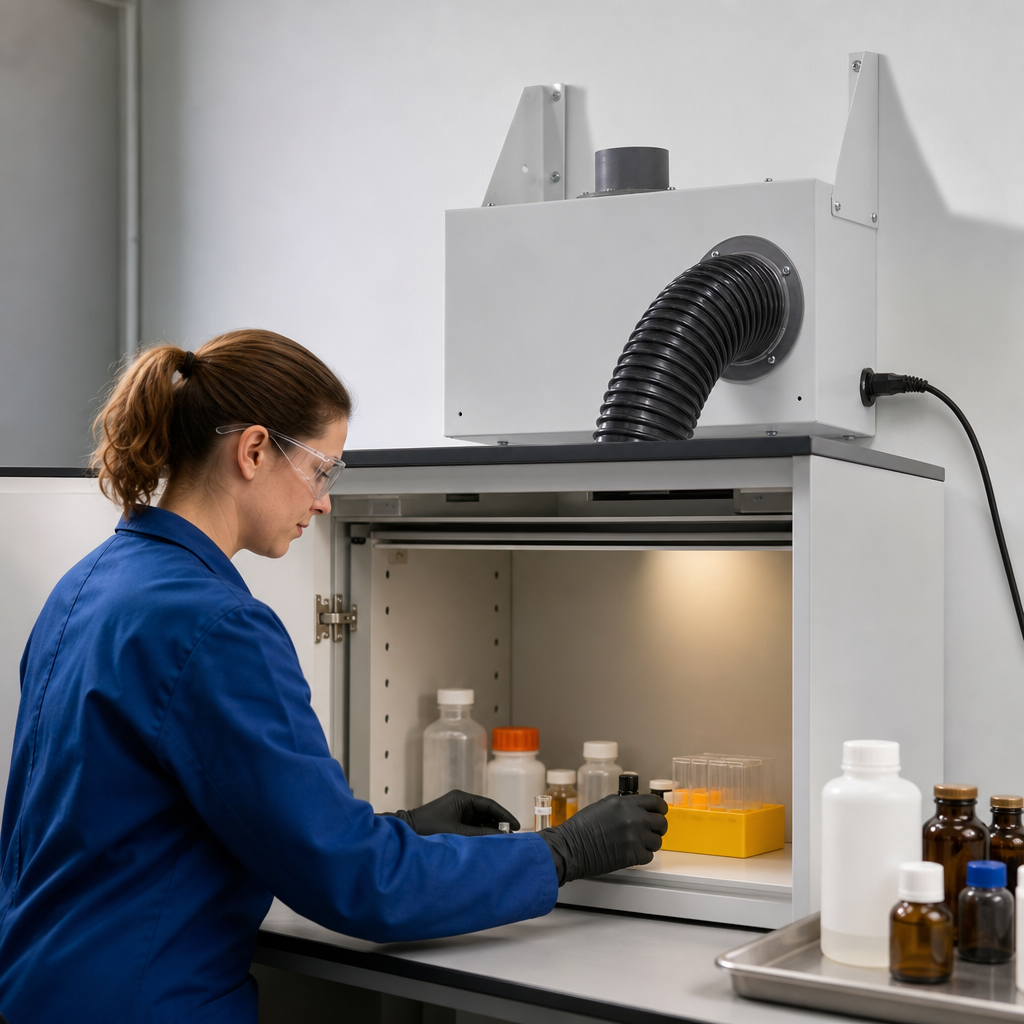

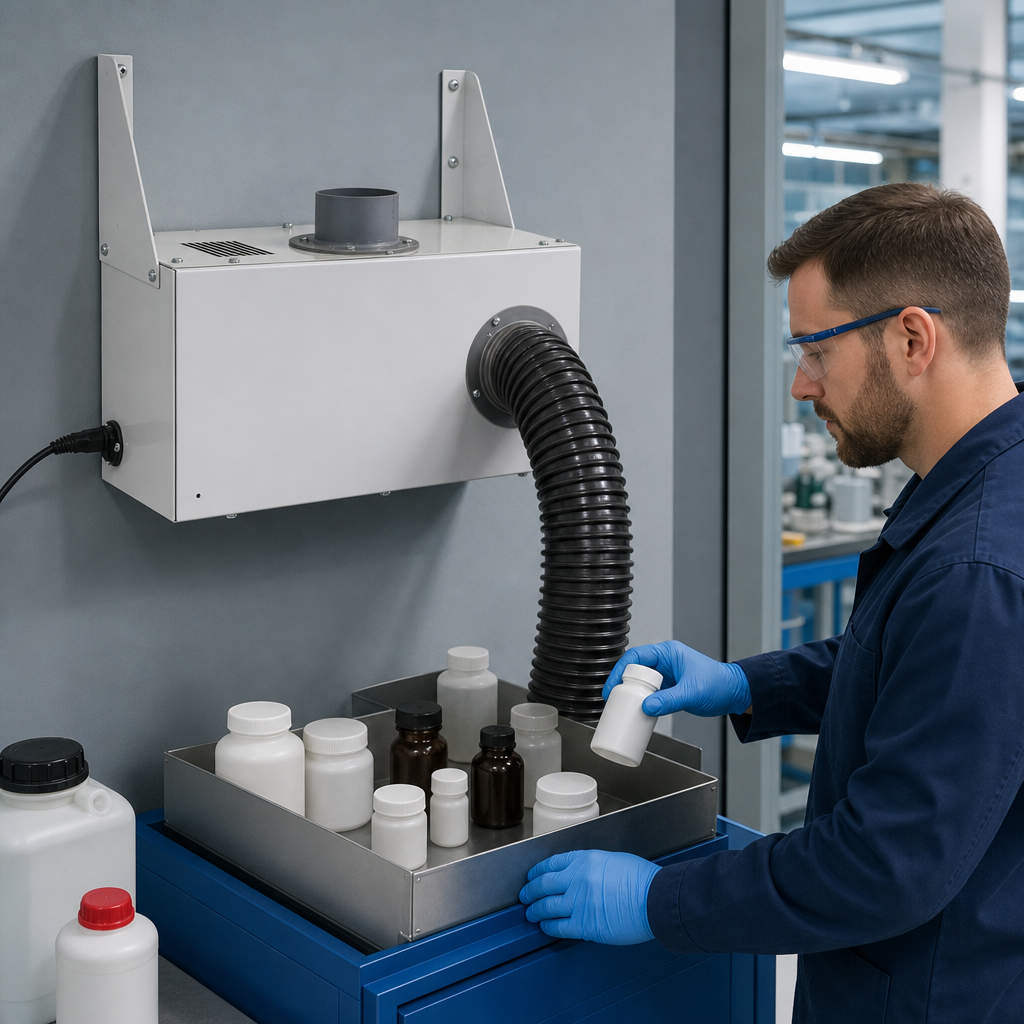

This wall-mounted ventilation attachment is designed for efficient air circulation in cabinets. It is ready to plug in and suitable for hazardous areas.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 45 |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | Wall-mounted |
| Frequency [Hz] | 50 |
| Weight [kg] | 12 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- Wall-mounted
- EU directive
Benefits
- Ensures safe air change in hazardous environments
- Easy installation and setup
- Low noise operation at 35 dB (A)
- Durable and reliable performance
Use Cases
- Used in hazardous material storage cabinets
- Ideal for laboratories and industrial applications
- Suitable for environments requiring frequent air changes
FAQ
Q: What is the power output of the ventilation attachment?
A: The power output is 35 W.
Q: Is this product ATEX-compliant?
A: Yes, it is ATEX-compliant (CE Ex II 3/- G Ex ic nA IIC T4).
Q: What are the external dimensions?
A: The external dimensions are 200 x 400 x 200 mm.
This wall-mounted ventilation attachment is designed for efficient air circulation in cabinets. It is ready to plug in and suitable for hazardous areas.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 45 |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | Wall-mounted |
| Frequency [Hz] | 50 |
| Weight [kg] | 12 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- Wall-mounted
- EU directive
Benefits
- Ensures safe air change in hazardous environments
- Easy installation and setup
- Low noise operation at 35 dB (A)
- Durable and reliable performance
Use Cases
- Used in hazardous material storage cabinets
- Ideal for laboratories and industrial applications
- Suitable for environments requiring frequent air changes
FAQ
Q: What is the power output of the ventilation attachment?
A: The power output is 35 W.
Q: Is this product ATEX-compliant?
A: Yes, it is ATEX-compliant (CE Ex II 3/- G Ex ic nA IIC T4).
Q: What are the external dimensions?
A: The external dimensions are 200 x 400 x 200 mm.
