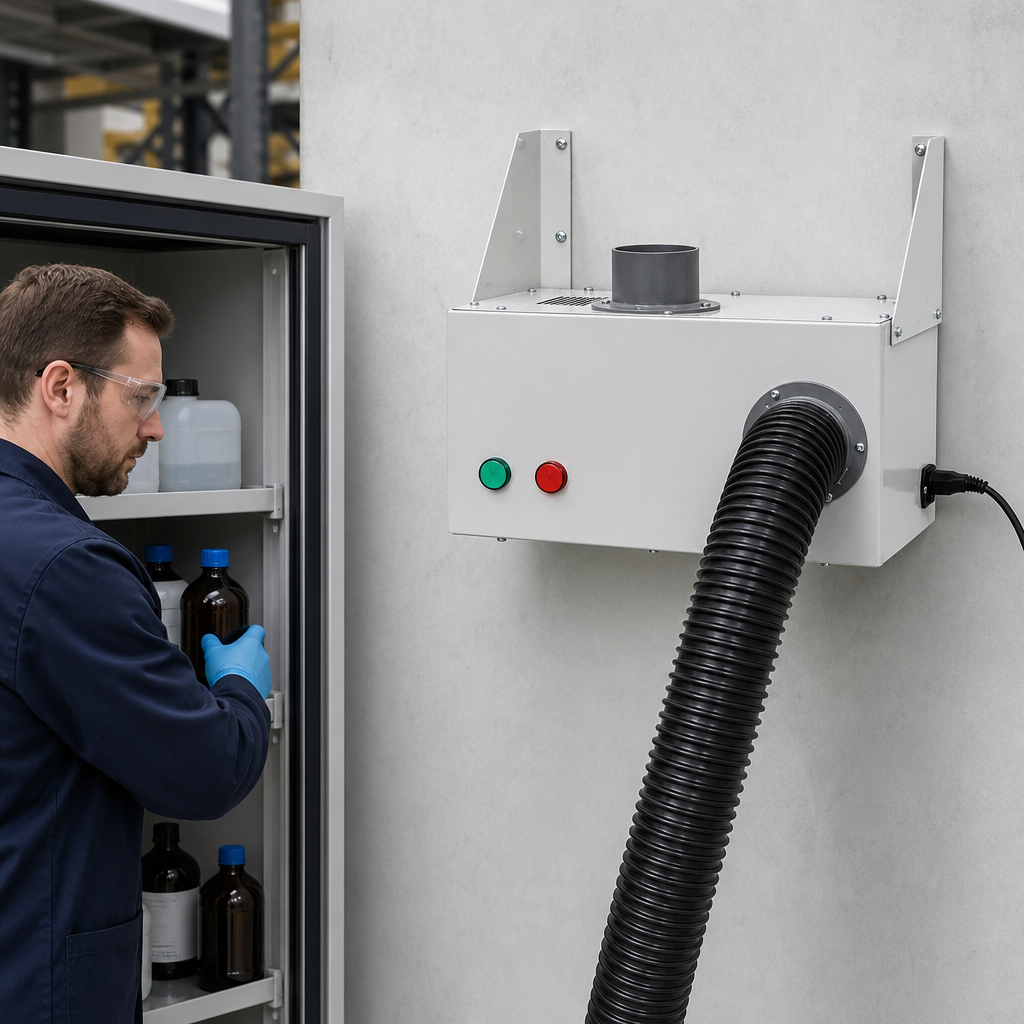

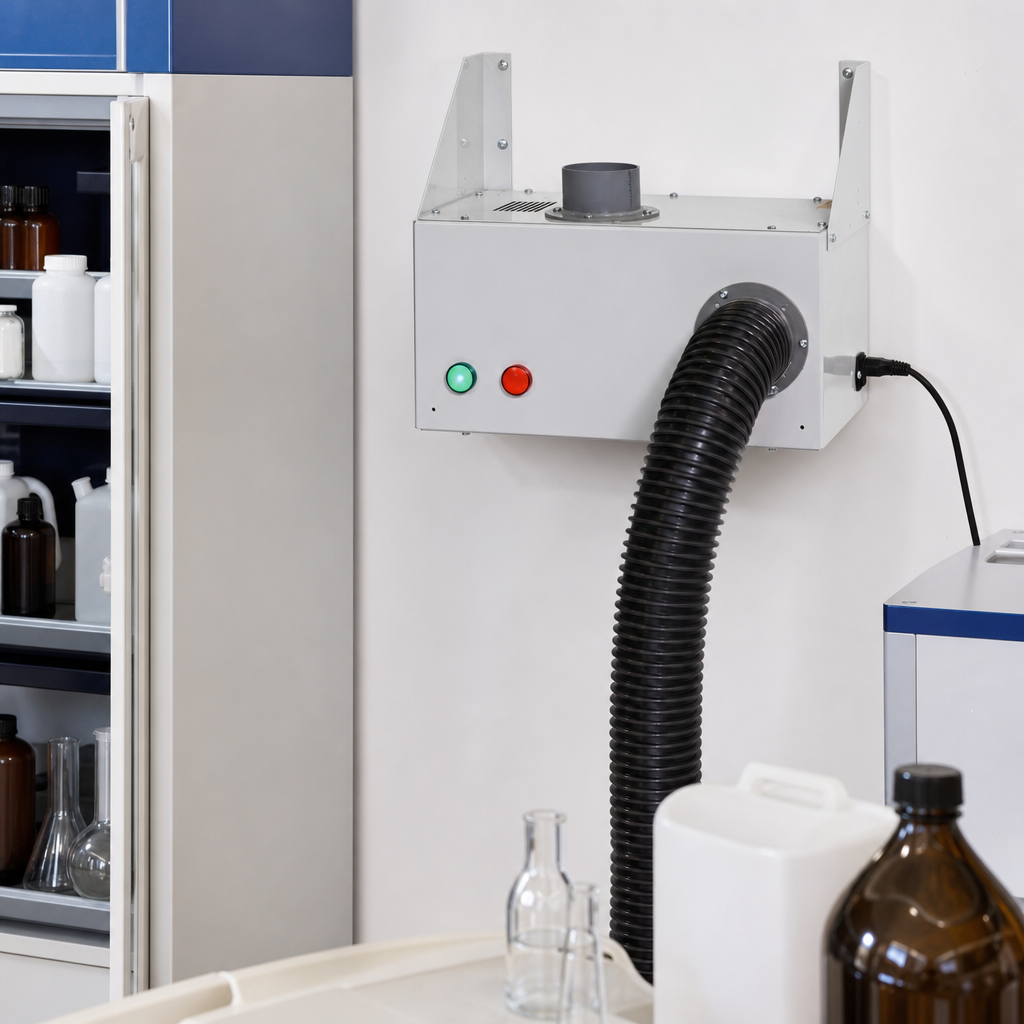

The WM 12 Ventilation Attachment is designed for wall mounting and features air extraction monitoring. Ideal for ensuring safety in hazardous material storage.
Specifications
| Technical data | Details |
|---|---|
| Ventilation function | Ventilating |
| External dimensions W x D x H [mm] | 200 x 400 x 200 |
| Nominal width DN | 75 |
| Nominal voltage [V] | 230 |
| Power [W] | 45 |
| Included in delivery | With air extraction monitoring |
| Certification / certificate | EC guideline (ATEX 2014/34/EU) |
| Features | Wall-mounted |
| Frequency [Hz] | 50 |
| Weight [kg] | 12 |
Key Features
- Suitable for up to 120 times air change inside the cabinet
- With connecting cable and Schuko plug
- ATEX-compliant: CE Ex II 3/- G Ex ic nA IIC T4
- Output (W): 35
- Nominal voltage 230 V / 50 Hz
- Speed (rpm): 2450
- Noise level: 35 dB (A)
- With exhaust air monitoring
- For wall mounting
- Not suitable for FM certified hazardous materials cabinets
- EU directive
Benefits
- Ensures safe air circulation in hazardous material storage
- Easy installation with wall-mounting capability
- Quiet operation for minimal disruption
- Reliable monitoring of air extraction
Use Cases
- Hazardous material cabinets
- Laboratories
- Chemical storage areas
FAQ
Q: What is the power output of the WM 12?
A: The power output is 35 W.
Q: Is the WM 12 suitable for all types of cabinets?
A: No, it is not suitable for FM certified hazardous materials cabinets.
Q: How many air changes can it provide?
A: It can provide up to 120 air changes inside the cabinet.
