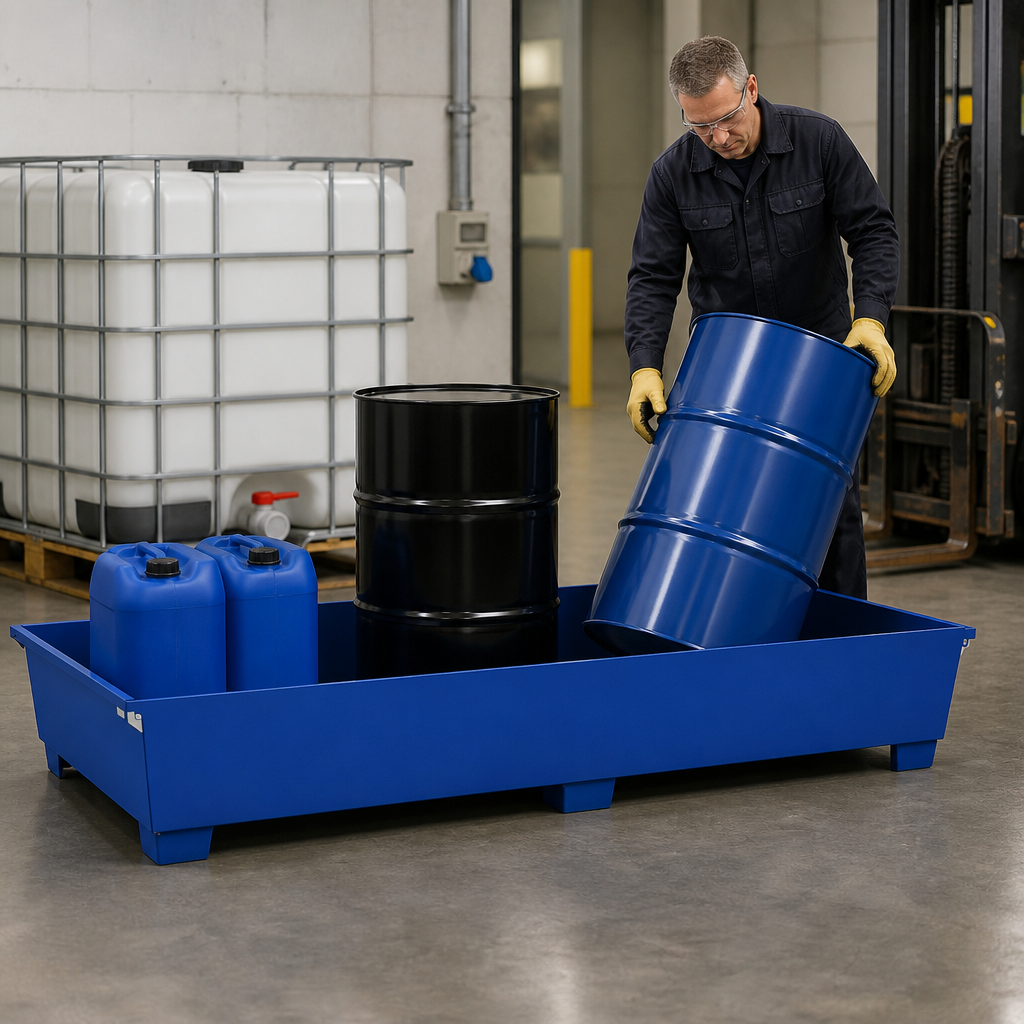

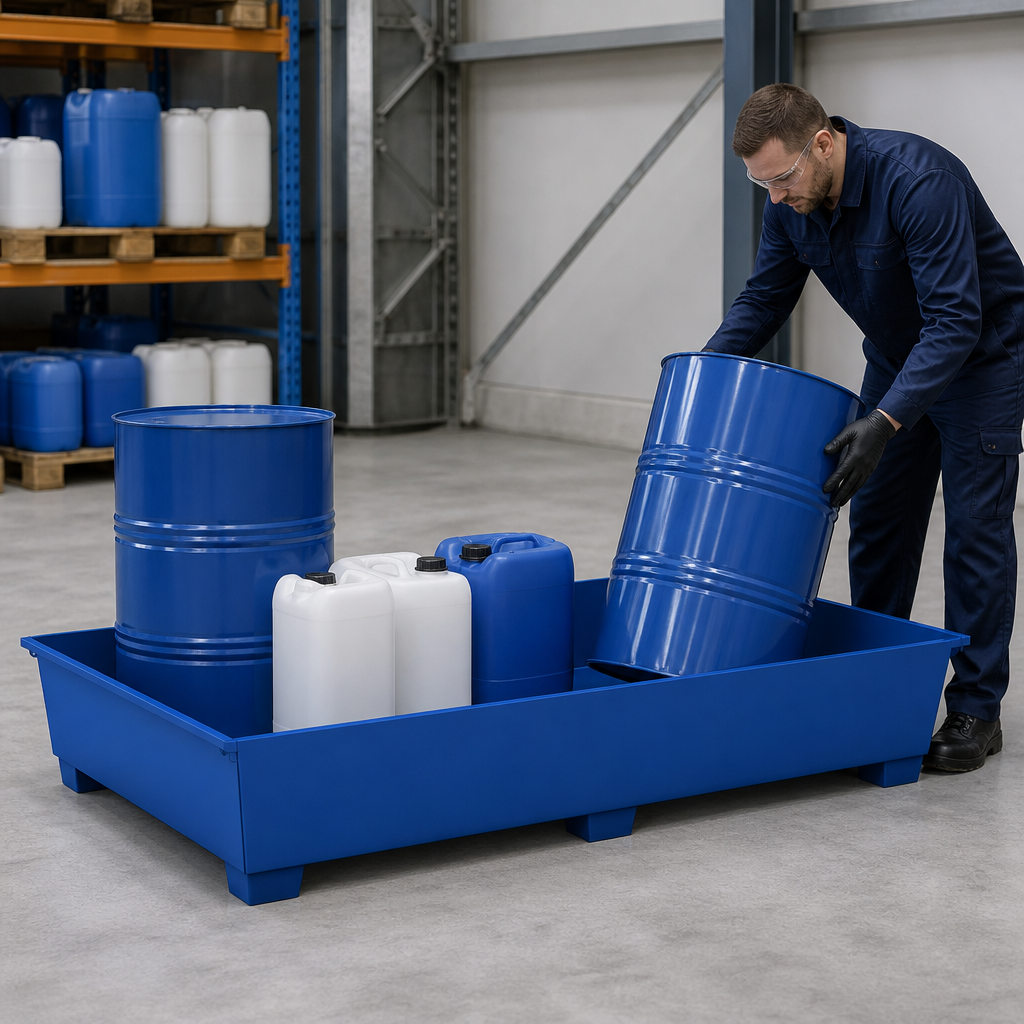

This spill tray is designed for use under shelving systems with a width of 2700 mm. Ideal for safely storing flammable and water-polluting substances.
Specifications
| Technical data | Details |
|---|---|
| Mobility | Floor level rack spill pallet |
| For shelves with bay width [mm] | 2700 |
| Material | Steel |
| Width, external [mm] | 2680 |
| Length, external [mm] | 1300 |
| Height, external [mm] | 486 |
| Overall load capacity [kg] | 4000 |
| Containment volume [l] | 1200 |
| Surface | painted |
| Weight [kg] | 152 |
Key Features
- With declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- Welded steel design
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Approved for storing flammable liquids (H224-226) and all substances in all water-polluting classes
- For existing shelving systems, which are to be used as a hazardous materials store and converted to be legally compliant
- Base spill pallet for setting under existing pallet racks
- 100 mm clearance between base and floor for handling and loading with forklift trucks
- Acid-resistant spill pallet insert in polyethylene (PE) available as an option
- Painted for optimum corrosion protection
Benefits
- Safe storage for hazardous materials
- High load capacity for heavy items
- Corrosion-resistant for long-lasting use
- Compliance with safety regulations
Use Cases
- Hazardous materials storage
- Flammable liquids containment
- Industrial shelving systems
FAQ
Q: What is the load capacity of the spill tray?
A: The spill tray has an overall load capacity of 4000 kg.
Q: Is the spill tray suitable for flammable liquids?
A: Yes, it is approved for storing flammable liquids and water-polluting substances.
Q: What are the external dimensions of the spill tray?
A: The external dimensions are 2680 mm in width, 1300 mm in length, and 486 mm in height.
This spill tray is designed for use under shelving systems with a width of 2700 mm. Ideal for safely storing flammable and water-polluting substances.
Specifications
| Technical data | Details |
|---|---|
| Mobility | Floor level rack spill pallet |
| For shelves with bay width [mm] | 2700 |
| Material | Steel |
| Width, external [mm] | 2680 |
| Length, external [mm] | 1300 |
| Height, external [mm] | 486 |
| Overall load capacity [kg] | 4000 |
| Containment volume [l] | 1200 |
| Surface | painted |
| Weight [kg] | 152 |
Key Features
- With declaration of compliance (ÜHP) valid across Germany, in accordance with Stawa-R
- Welded steel design
- Sealing tested in accordance with EN ISO 3452-1 with factory test certificate
- Approved for storing flammable liquids (H224-226) and all substances in all water-polluting classes
- For existing shelving systems, which are to be used as a hazardous materials store and converted to be legally compliant
- Base spill pallet for setting under existing pallet racks
- 100 mm clearance between base and floor for handling and loading with forklift trucks
- Acid-resistant spill pallet insert in polyethylene (PE) available as an option
- Painted for optimum corrosion protection
Benefits
- Safe storage for hazardous materials
- High load capacity for heavy items
- Corrosion-resistant for long-lasting use
- Compliance with safety regulations
Use Cases
- Hazardous materials storage
- Flammable liquids containment
- Industrial shelving systems
FAQ
Q: What is the load capacity of the spill tray?
A: The spill tray has an overall load capacity of 4000 kg.
Q: Is the spill tray suitable for flammable liquids?
A: Yes, it is approved for storing flammable liquids and water-polluting substances.
Q: What are the external dimensions of the spill tray?
A: The external dimensions are 2680 mm in width, 1300 mm in length, and 486 mm in height.
